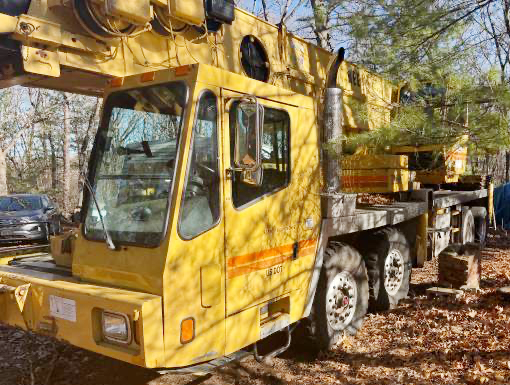

Hydraulic Truck Crane

1998 Grove TMS870

PRICED TO SELL!
$97,900

CranesList ID: 1060

All Information Provided By The Seller

Crane Specifications

Overview


Year: 1998
Make: Grove
Model: TMS870
Crane Type: Hydraulic Truck
Serial:
Tons: 70
Weight: 91,090#
Location: Notheastern USA
Price: $97,900
CranesList ID: 1060

Notes

  • 36'-110’ Four Section Full Power Boom with Auxiliary Boom Nose,
  • 31' or 56' folding lattice swingaway extension (Jib) offsettable at 1.5°, 25° or 45°. Stows alongside base boom section,
  • Main and Auxiliary Winches with 3/4" wire Rope,

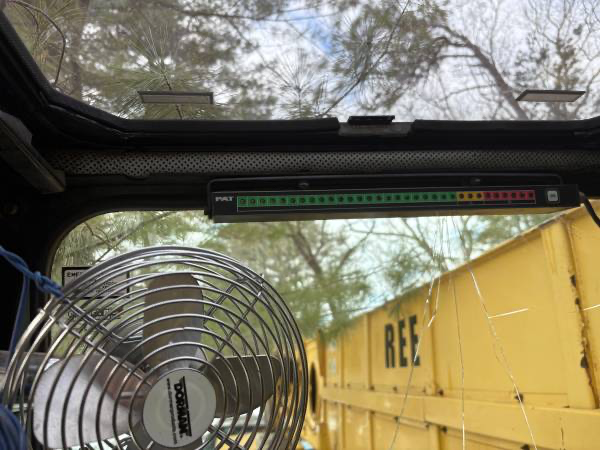

  • Two Speed, Drum Rotation Indicator, and Hoist Drum Cable Follower, Standard load moment and anti-two block system with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load and load indication and warning of impending two-block condition,
  • Hook Block and Ball - TO BE CONFIRMED,
  • 18,000# Counterweights with Hydraulic installation/removal,
  • 8' 6" wide Grove 8 x 4 x 4 Carrier,
  • Cummins Diesel Engine - SUBJECT TO FINAL CONFIRMATION,
  • Roadranger 10 speeds forward, 3 reverse Transmission - SUBJECT TO FINAL CONFIRMATION,
  • Front Tires: 445/65R 22.5 - SUBJECT TO FINAL CONFIRMATION,
  • Rear Tires: 315/80R 22.5 - SUBJECT TO FINAL CONFIRMATION,
  • Heaters up and down,
  • Four hydraulic telescoping, two-stage, double box beam outriggers with inverted jack and integral holding valves. Quick release type outrigger floats 24 in. (610 mm) diameter. Three
    position setting with fully extended, intermediate (50%) extended and fully retracted capacities.

Location

Notheastern USA

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 36'-110’ Four Section Full Power Boom
Boom Length: 110'
Jib:
Jib: 31' or 56' folding lattice swingaway extension (Jib)
Jib Length: 56'
Boom/Jib Notes:
  • 36'-110’ Four Section Full Power Boom with Auxiliary Boom Nose,
  • 31' or 56' folding lattice swingaway extension (Jib) offsettable at 1.5°, 25° or 45°. Stows alongside base boom section.

Carrier

Carrier images
Carrier: 8' 6" wide Grove 8 x 4 x 4 Carrier
Mileage:
Carrier Notes:
  • 8' 6" wide Grove 8 x 4 x 4 Carrier,
  • Cummins Diesel Engine - SUBJECT TO FINAL CONFIRMATION,
  • Roadranger 10 speeds forward, 3 reverse Transmission - SUBJECT TO FINAL CONFIRMATION,
  • Front Tires: 445/65R 22.5 - SUBJECT TO FINAL CONFIRMATION,
  • Rear Tires: 315/80R 22.5 - SUBJECT TO FINAL CONFIRMATION,
  • Heaters up and down.

Lifting System

Lifting System Images
Hours: 20,879 as per 3.2026
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 3/4" wire Rope,
  • Two Speed, Drum Rotation Indicator, and Hoist Drum Cable Follower, Standard load moment and anti-two block system with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load and load indication and warning of impending two-block condition.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball:
Hook Block/Hook Ball Notes:

Hook Block and Ball - TO BE CONFIRMED.
