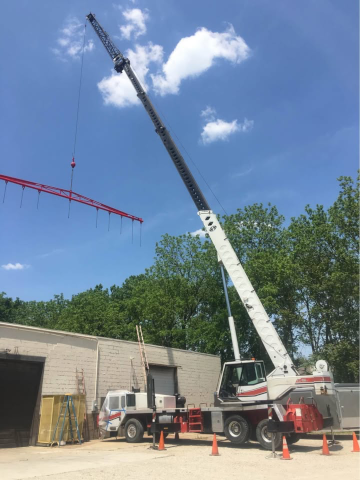

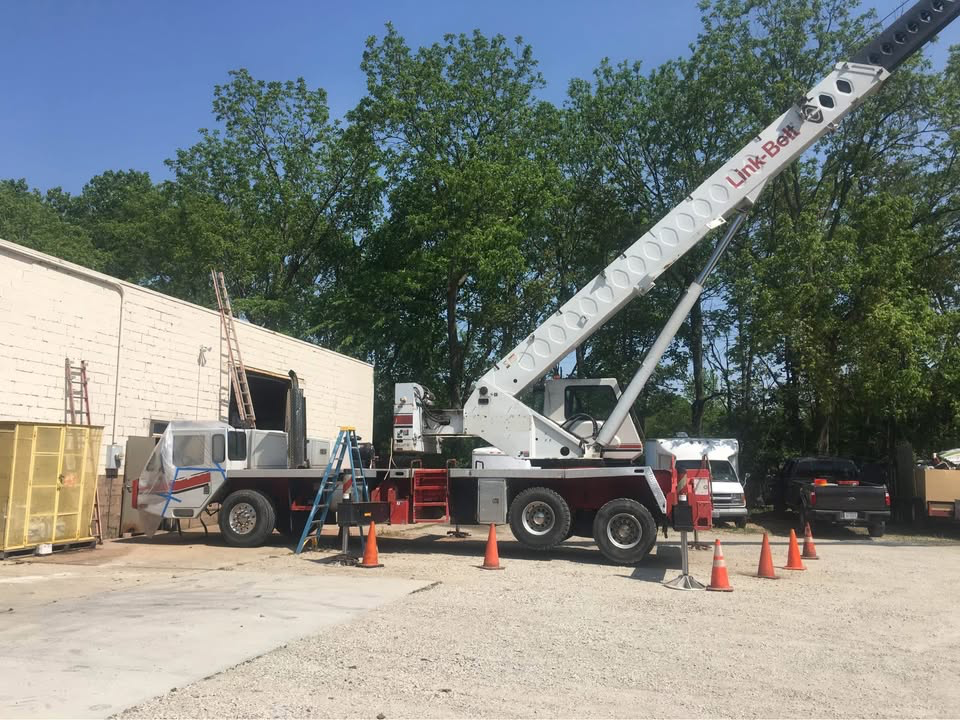

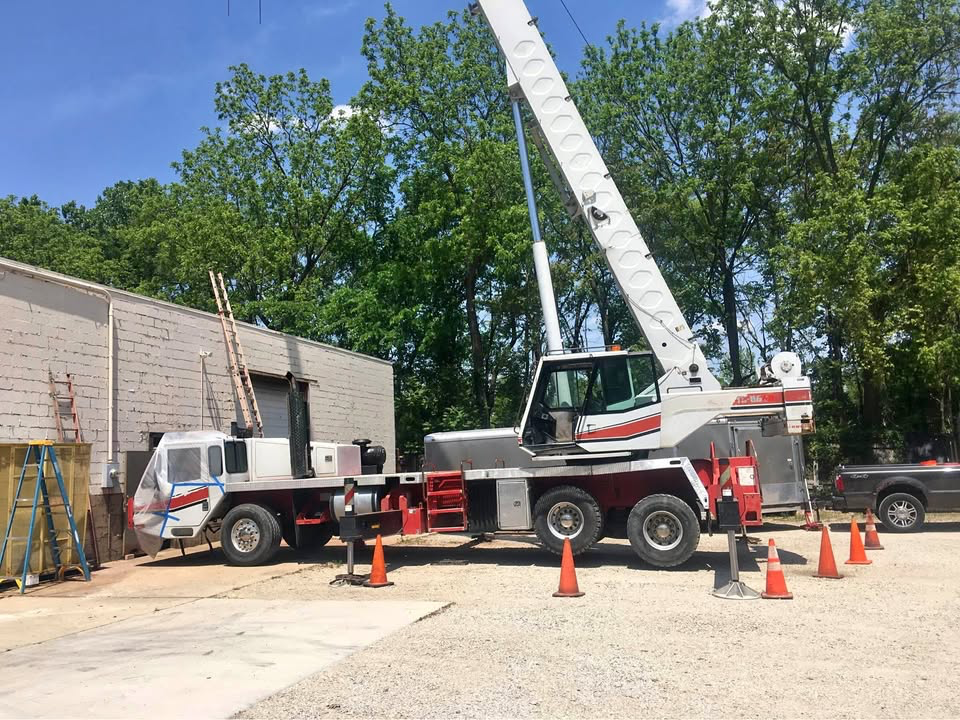

Hydraulic Truck Crane

2003 Link-Belt HTC8640HL

PRICED TO SELL!
$75,000

CranesList ID: 1036

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2003
Make: Link-Belt
Model: HTC8640HL
Crane Type: Hydraulic Truck
Serial: F8J3-6717
Tons: 40
Weight: 62,185#
Location: Illinois
Price: $75,000
CranesList ID: 1036
Good Condition
Annual Crane inspection
Annual Inspection

Certified

OSHA Certified

Notes

  • 33' - 105' four-section full power boom with quick reeve boom head,
  • 28.5' - 51' two piece (bi-fold) fly (Jib), stowable, offsettable to 2˚, 20, and 40˚,
  • Main Winch with 5/8" Wire Rope,
  • Drum Rotation Indicator, Two Speed, Microguard 434 Graphic audio-visual warning system built into dash with anti- two block and function limiters,
  • Hook Ball,
  • 9,700# Counterweights
  • Heaters Up and Down,
  • Sliding rear and right side windows and swing–up roof window with Top hatch window wiper for maximum visibility and ventilation,
  • Pullout Cab-walk,
  • 8' 6" Link-Belt 8 x 4 drive carrier,
  • Cummins ISL 330 Diesel Engine with Jake Brake,
  • Automatic Transmission,
  • Front Tires: 425/65R22.5 (Load range “L”) single tube- less radials,
  • Rear Tires: 12R22.5 (Load range “H”) dual tubeless radials,

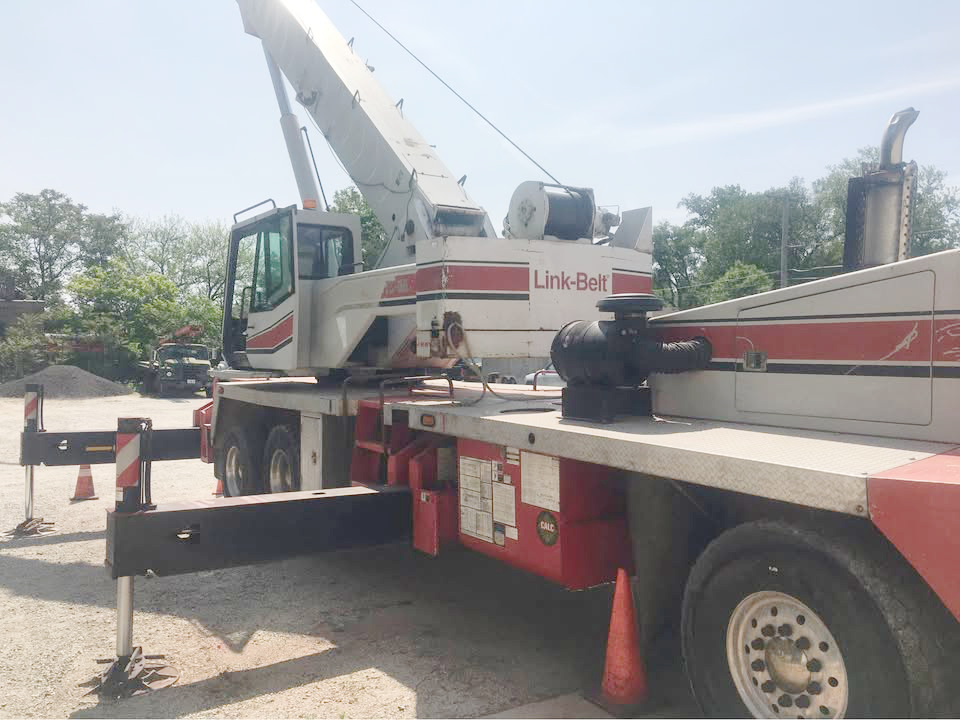

  • Four hydraulic, telescoping beam and jack outriggers with Hand–held controls and sight level bubble located in operators cab and on carrier deck,
  • Aluminum Outrigger Pads,

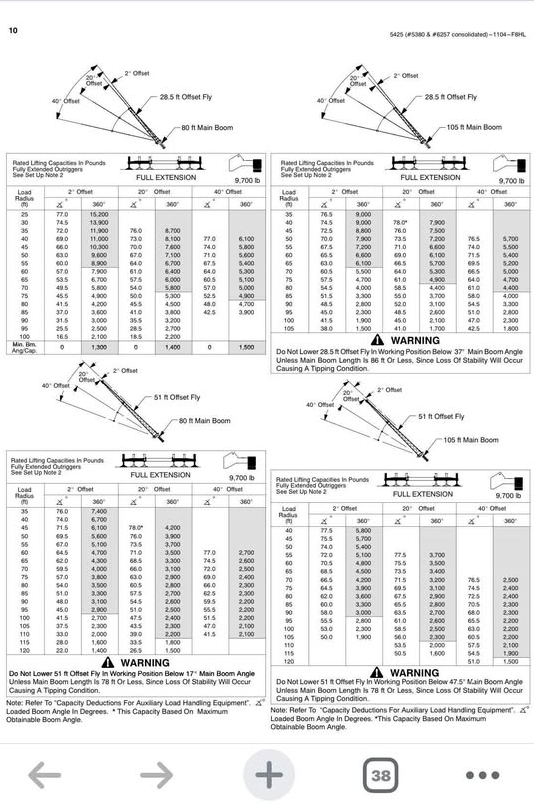

  • Confined Area Lifting Capacities (CALC) System. The crane is operational in one of the three outriggers positions and operational in confined areas in two positions intermediate and full retraction,
  • Aluminum Diamond Plate Decking,
  • Aluminum fenders,
  • Certified.

Location

Illinois

Crane Details

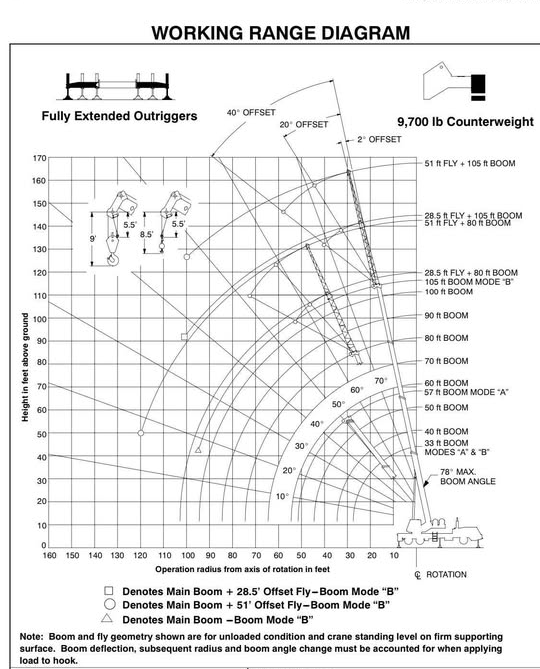

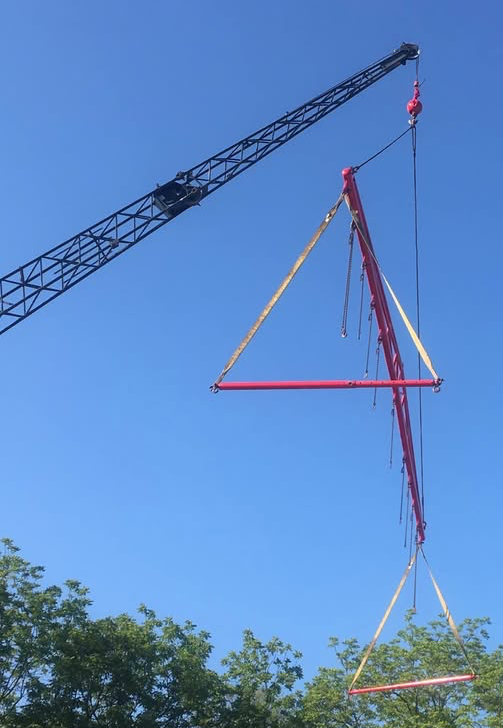

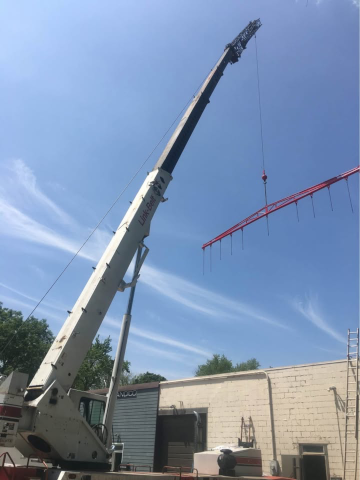

Boom/Jib

Boom/Jib Images
Boom:

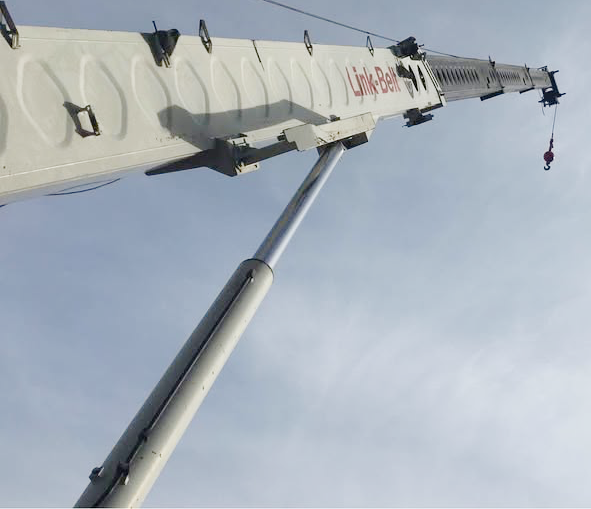

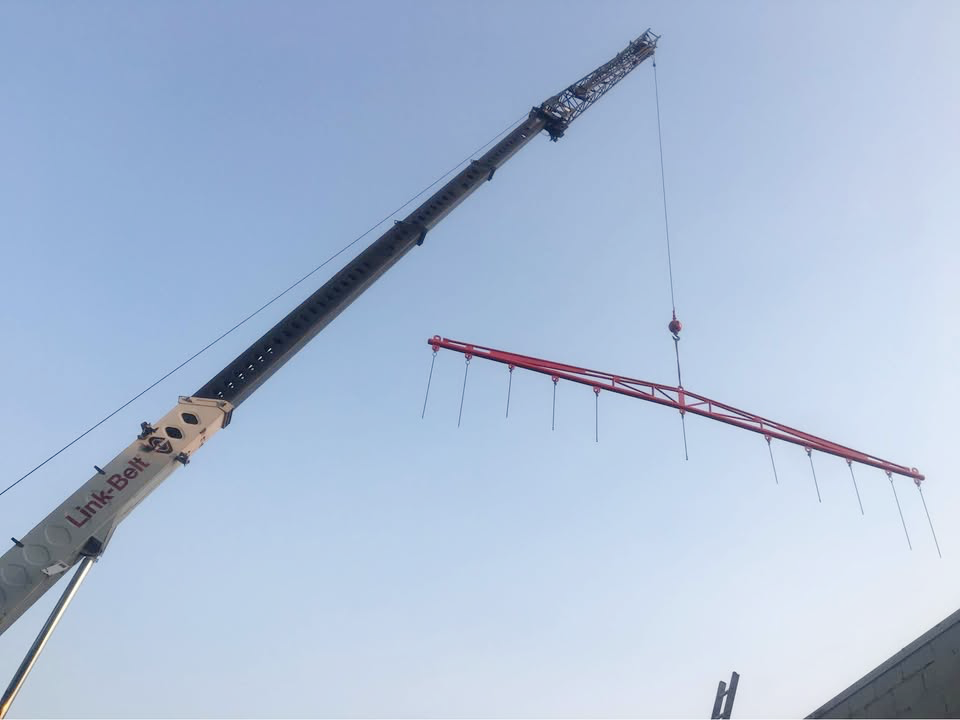

Boom: 33' - 105' four-section full power boom
Boom Length: 105'
Jib:
Jib: 28.5' - 51' two piece (bi-fold) fly (Jib)
Jib Length: 51'
Boom/Jib Notes:
  • 33' - 105' four-section full power boom with quick reeve boom head,
  • 28.5' - 51' two piece (bi-fold) fly (Jib), stowable, offsettable to 2˚, 20, and 40˚.

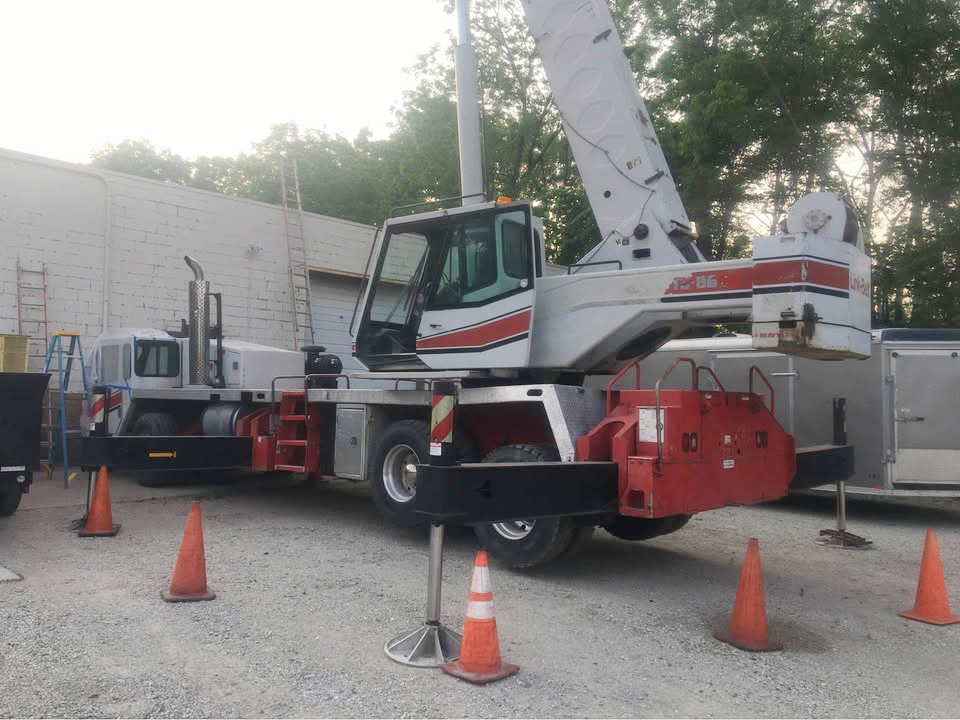

Carrier

Carrier images
Carrier: 8' 6" Link-Belt 8 x 4 drive carrier
Mileage:
Carrier Notes:
  • 8' 6" Link-Belt 8 x 4 drive carrier,
  • Cummins ISL 330 Diesel Engine with Jake Brake,
  • Automatic Transmission,

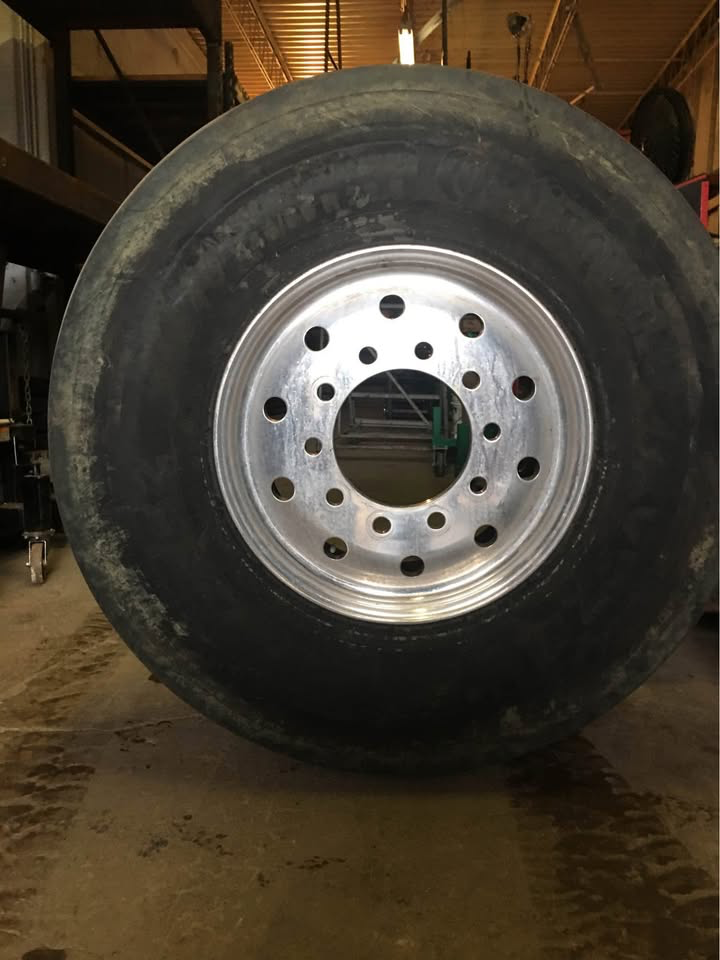

  • Front Tires: 425/65R22.5 (Load range “L”) single tube- less radials,

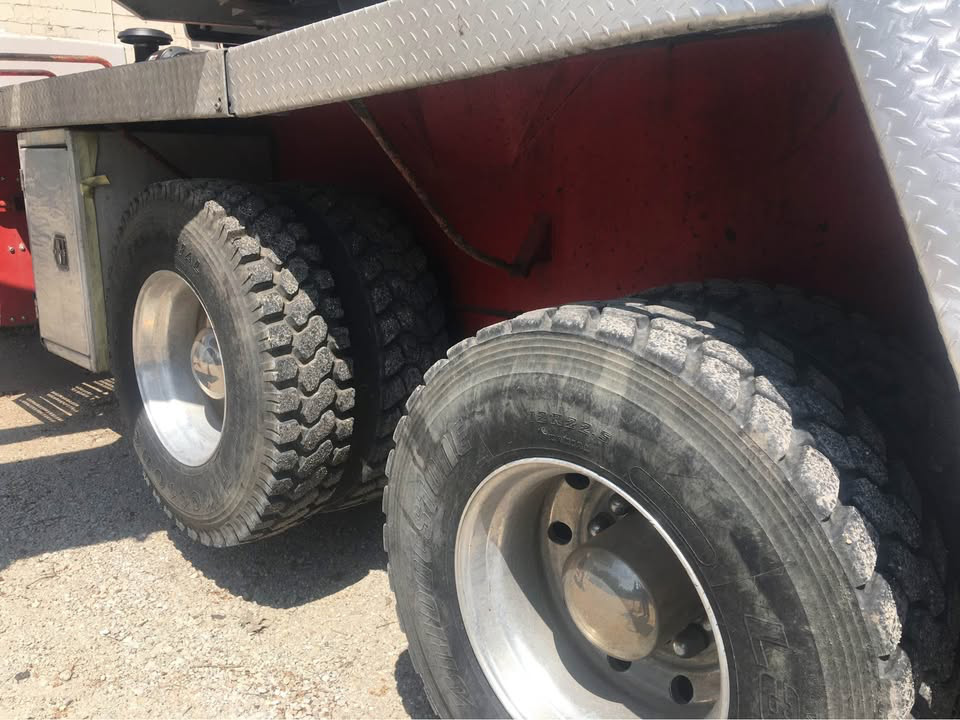

  • Rear Tires: 12R22.5 (Load range “H”) dual tubeless radials.

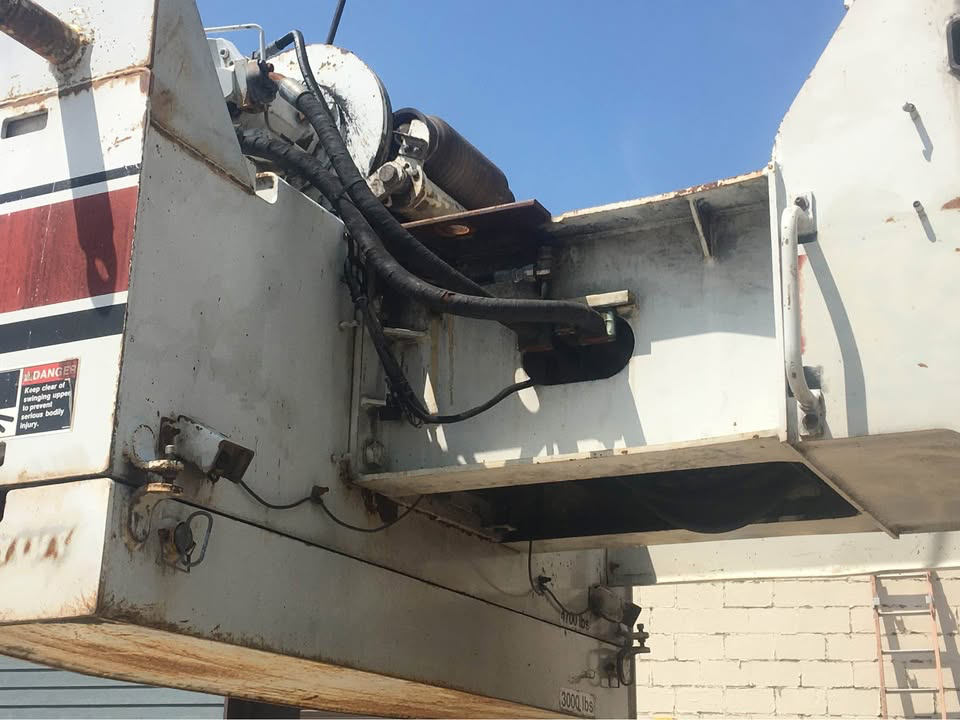

Lifting System

Lifting System Images
Hours:
Winches: Main Winch
Lifting System Notes:
  • Main Winch with 5/8" Wire Rope,
  • Drum Rotation Indicator, Two Speed, Microguard 434 Graphic audio-visual warning system built into dash with anti- two block and function limiters.

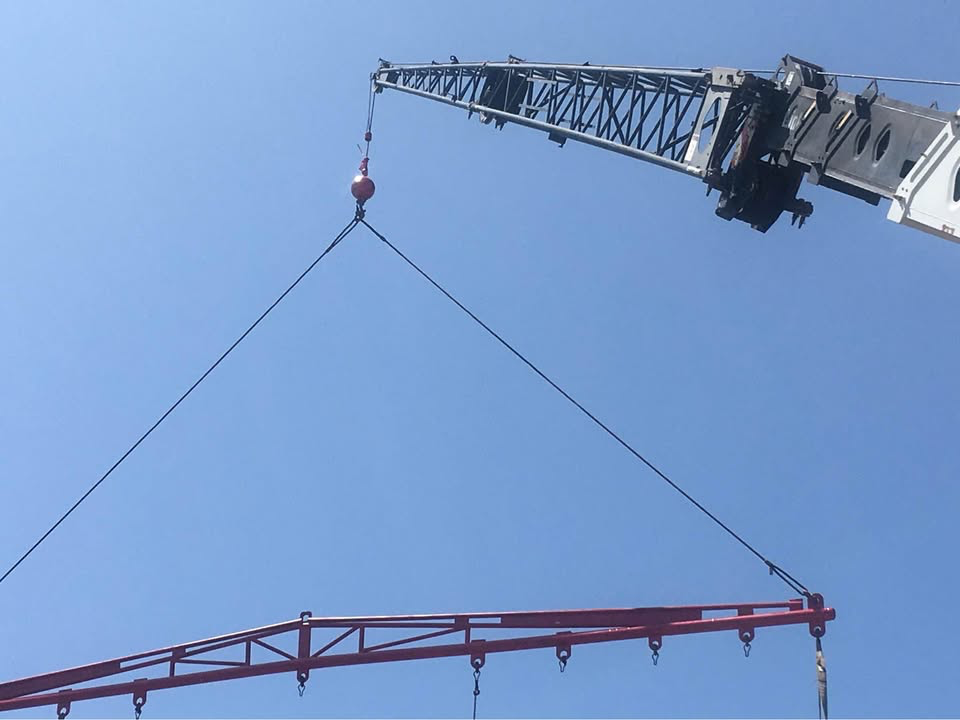

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Ball
Hook Block/Hook Ball Notes:
  • Hook Ball.

Downloadable Files Associated with this Crane

Documents

Click To Enlarge or Browse

All Images

Click To Enlarge or Browse

, , , , , , , , , , , , , , , , , , ,
