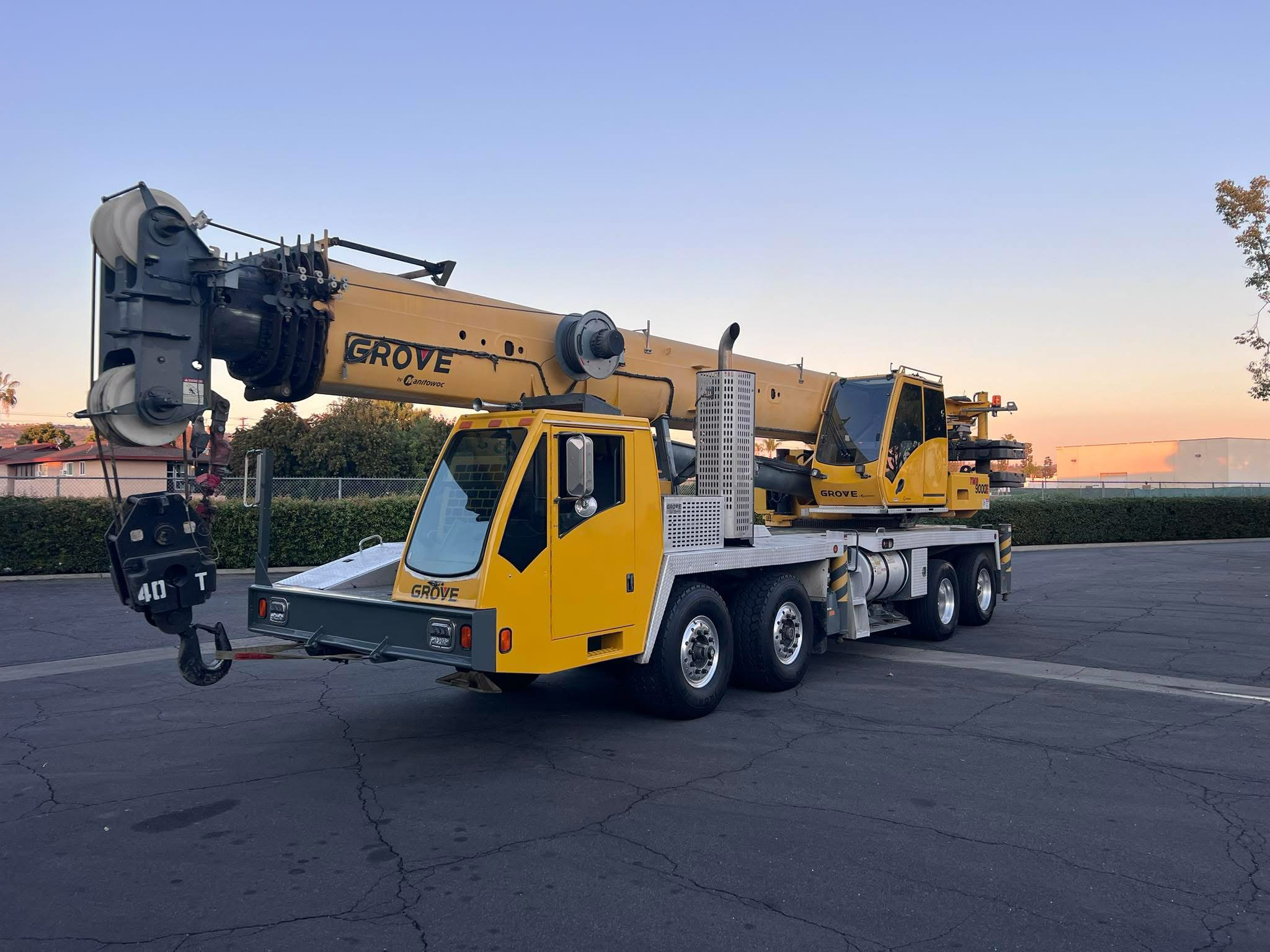

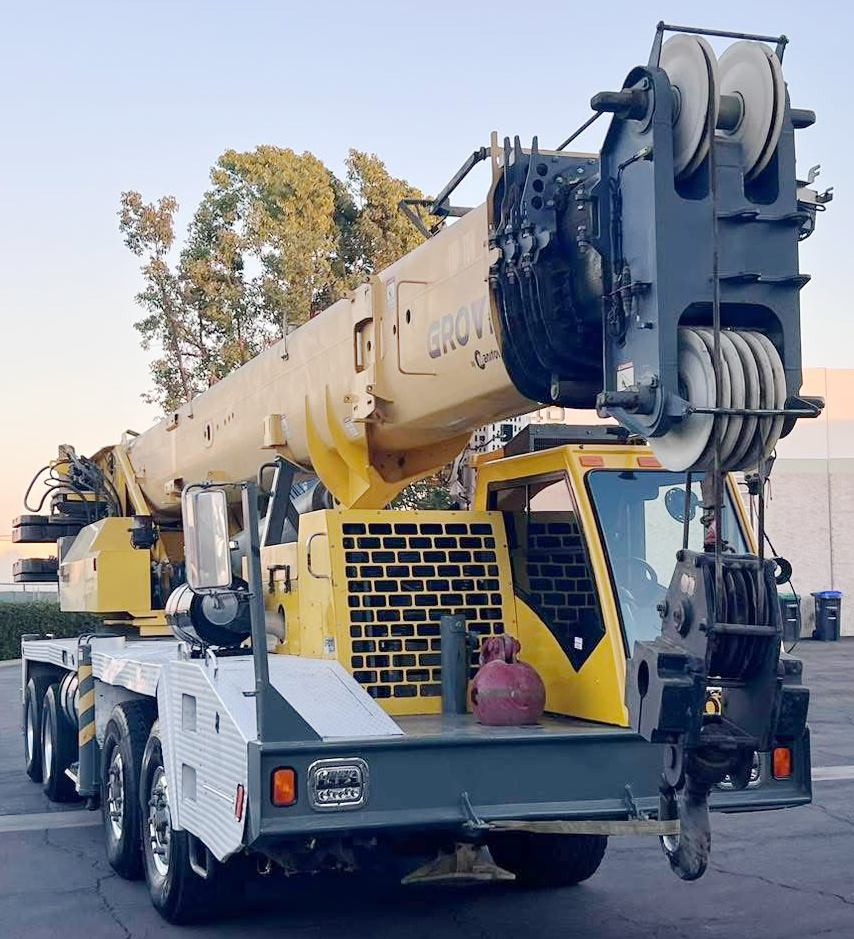

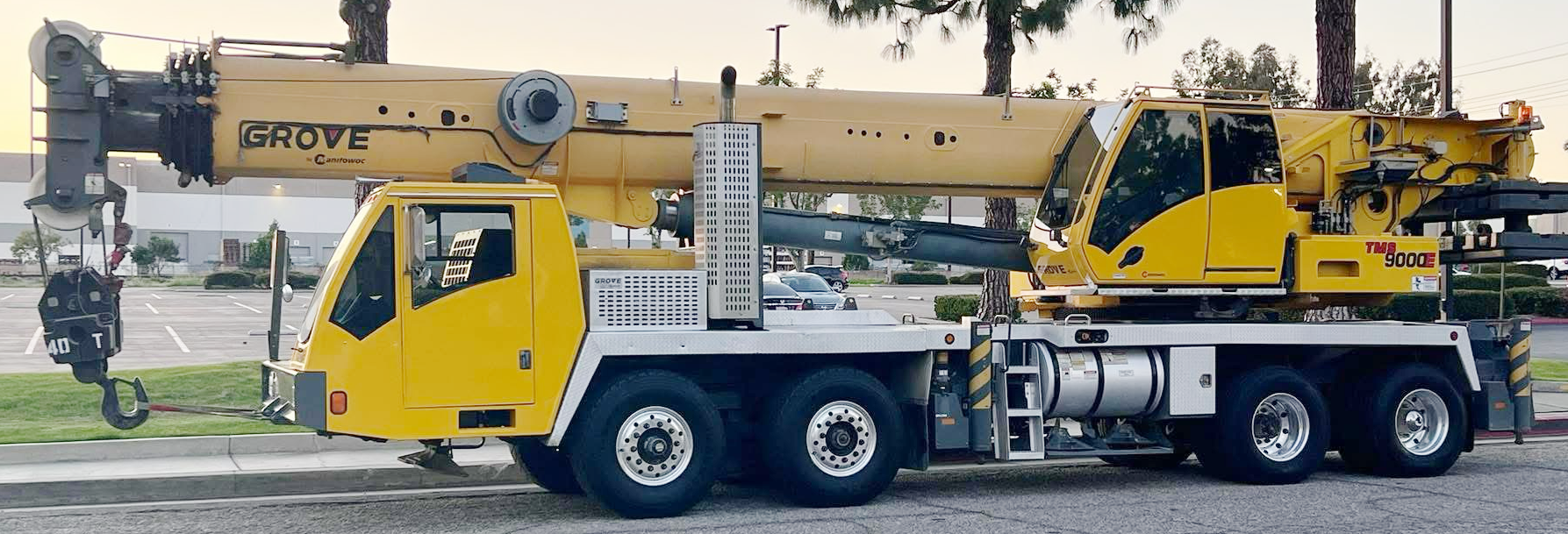

2013 Grove TMS9000E, 110 Ton, Hydraulic Truck

Notes

36'-142' Five Section Full Power Boom with patented TWIN-LOCK boom pinning system and Quick reeving type boom nose,
33' - 56' bi-fold lattice swingaway extension (Jib) Offsettable at 0°, 25° and 45° Stows alongside base boom section, with Jib Brackets,
Main & Auxiliary Winches with 19 mm or 3/4" wire rope,

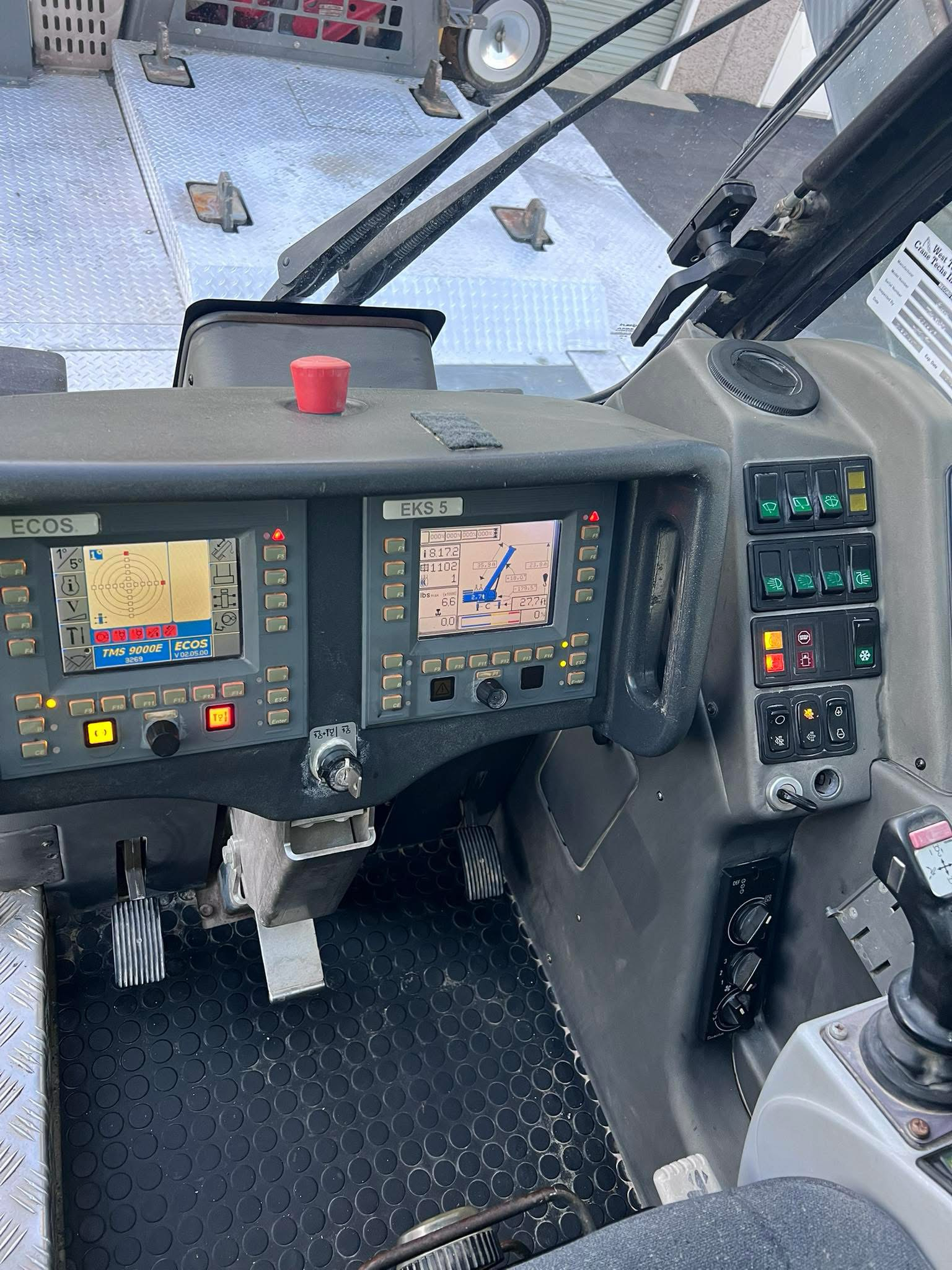

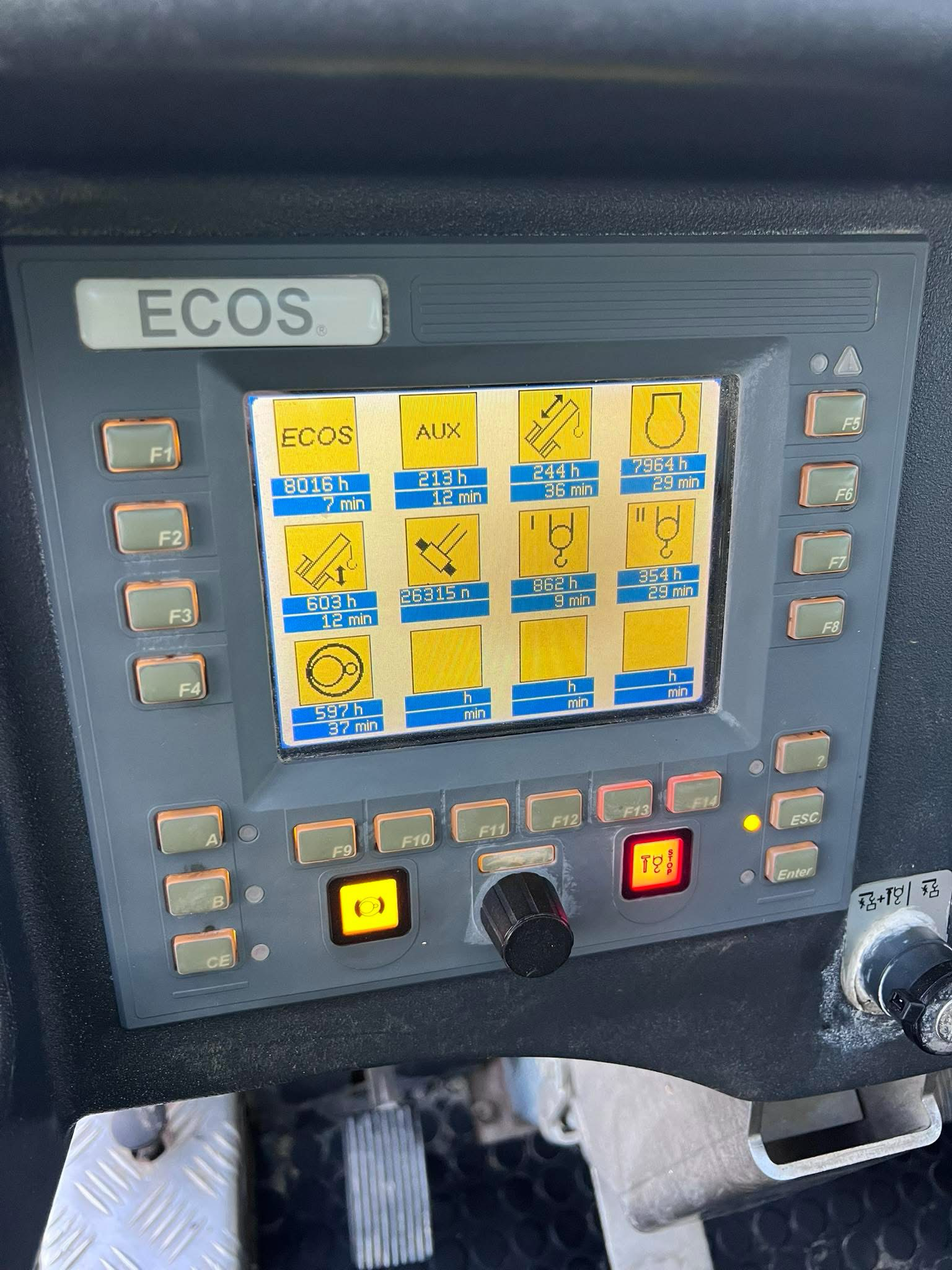

Drum Rotation Indicator, New EKS5 Load Moment with new level sensor and Anti-Two Block System,
Hook Ball and Hook Block,

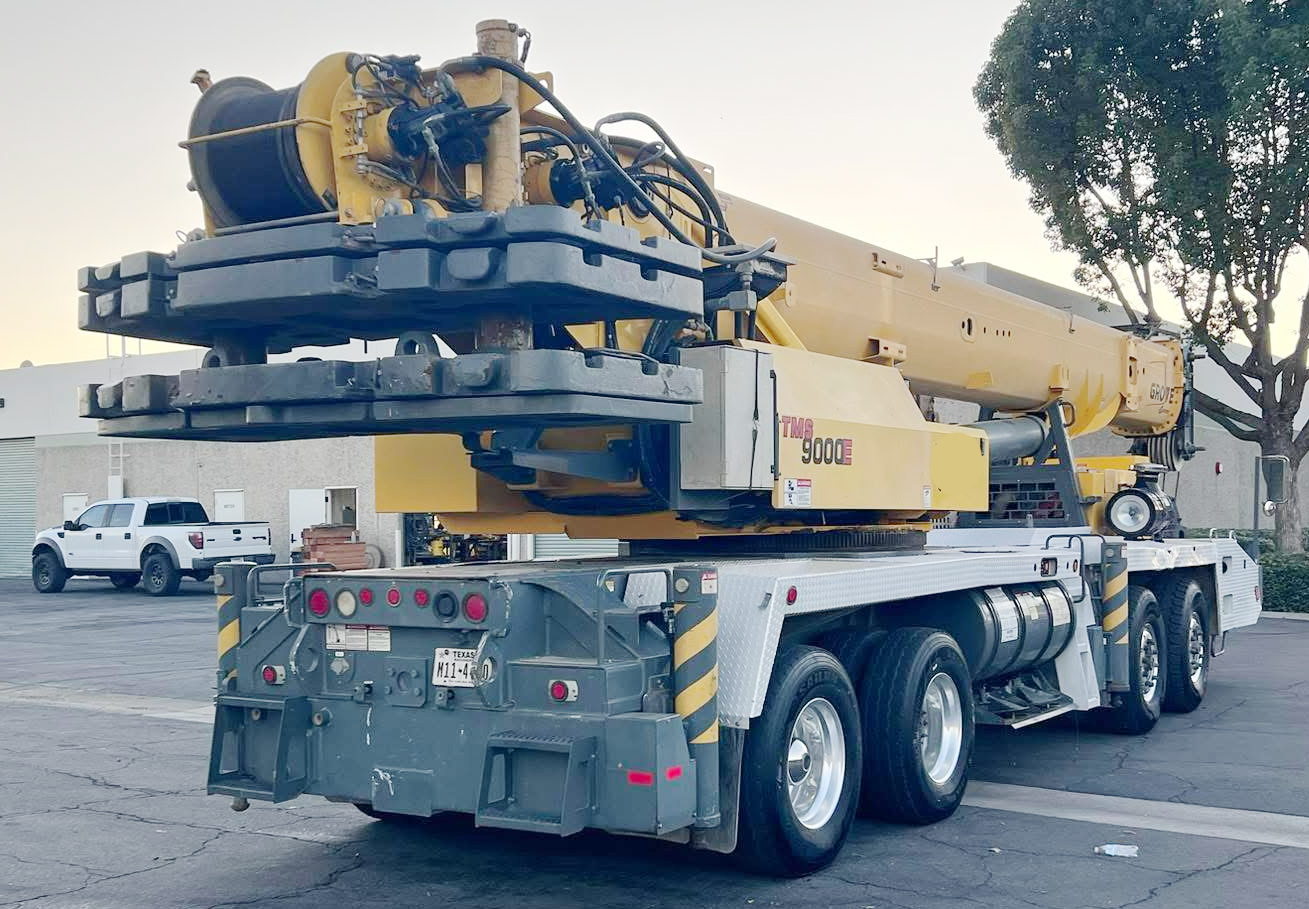

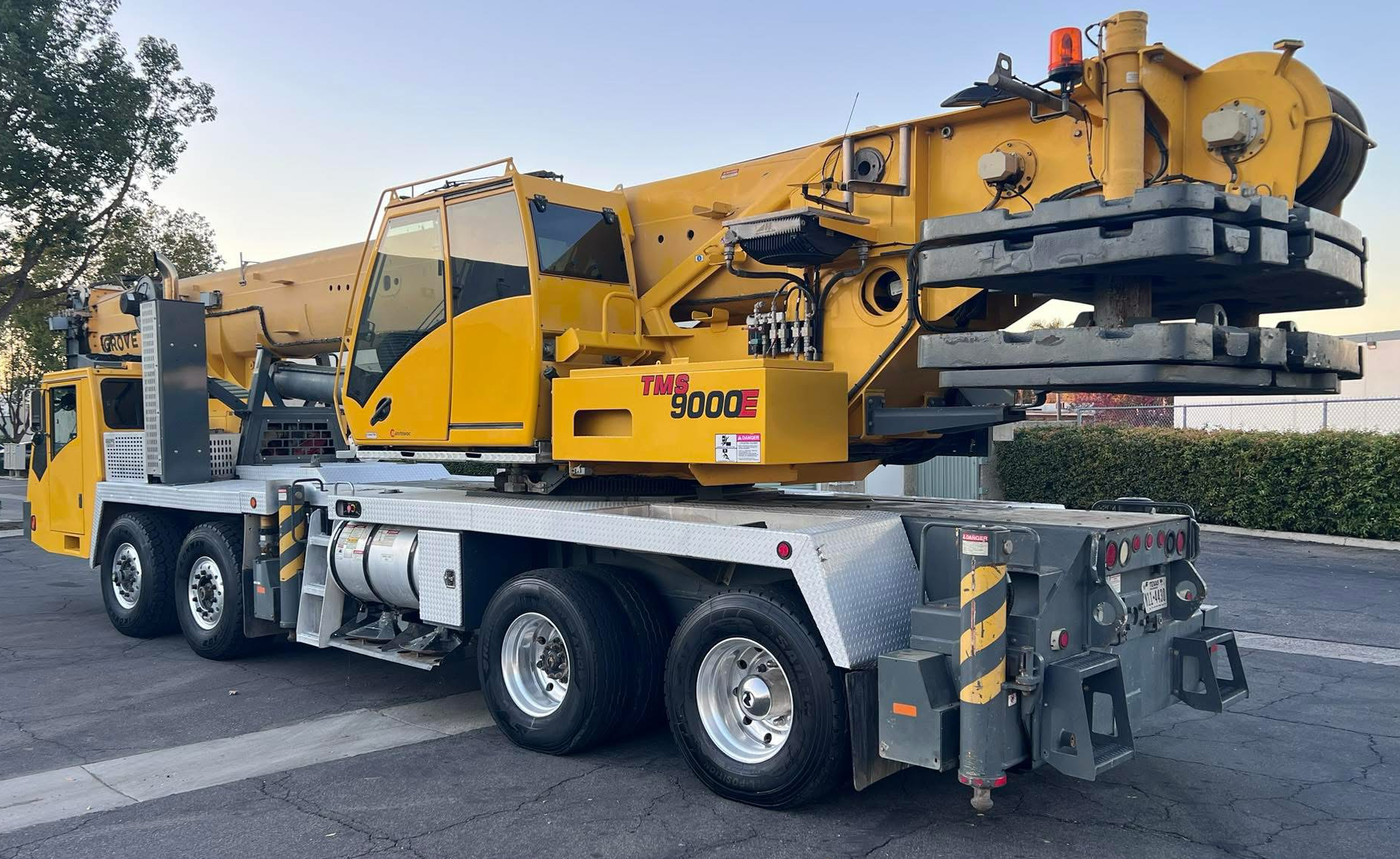

XL Counterweight Package consisting of 2) 4000# and 2) 2250# wing sections in addition to standard and “Heavy Lift” package, for a total of 48,500#,
Air Conditioning and Heaters Up and Down,
7' 62" wide 8 x 4 x 4 Drive Grove Carrier,
Cummins Cummins ISX11.9 Diesel Engine,
Eaton Manual Transmission,
Front Tires: 445/65R 22.5, tubeless, high quality, mounted or aluminum disc wheels - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
Rear Tires: 315/80R 22.5, tubeless, high quality, mounted on aluminum disc wheels - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
Four hydraulic telescoping, single stage, double box beam outriggers with inverted jack and integral holding valves. Quick release type steel outrigger floats (24 in) diameter. Three position setting with fully extended, intermediate (50%) extended and fully retracted capacities,
Outrigger Controls - Located in the superstructure cab and on either side of carrier,

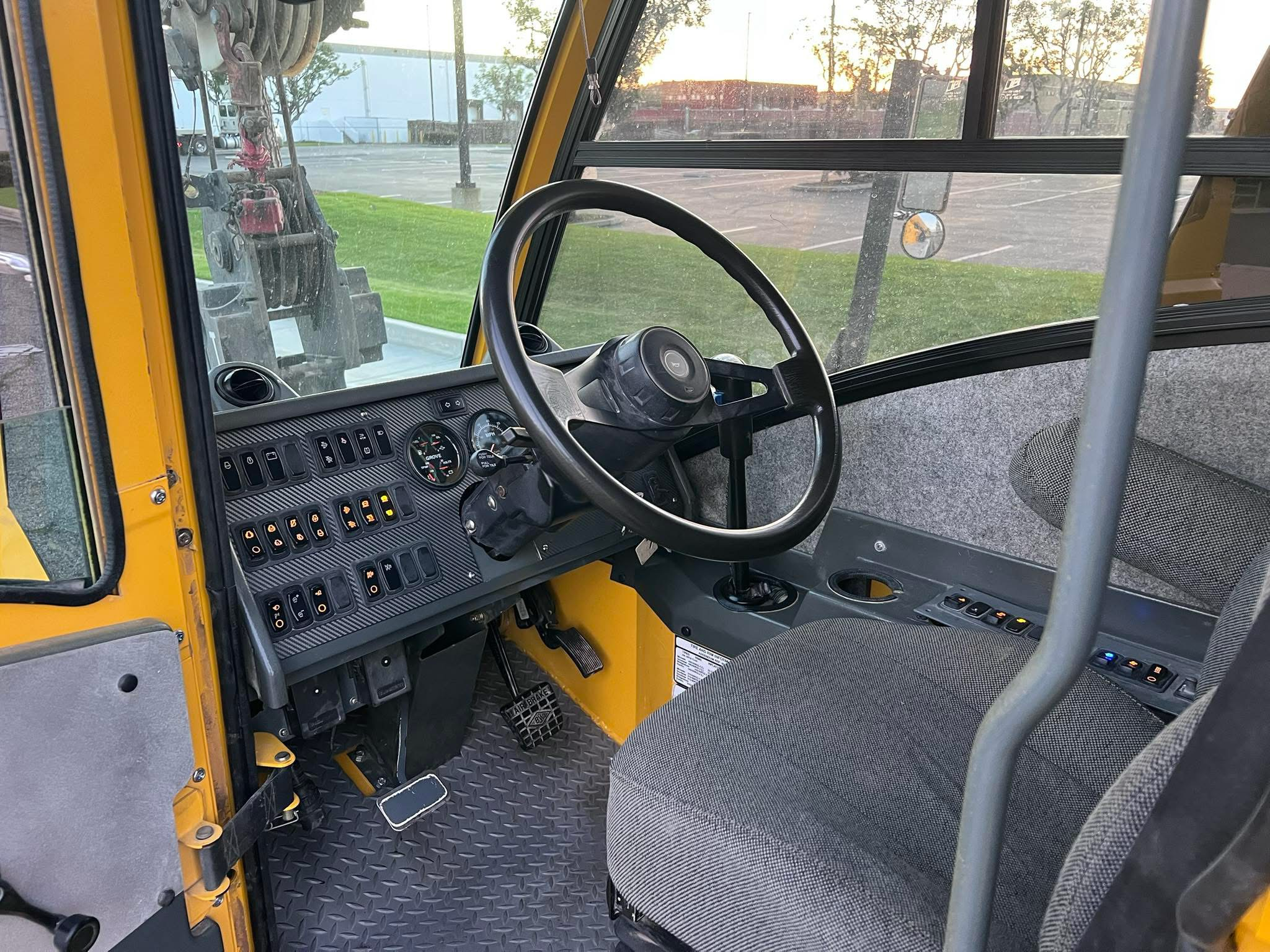

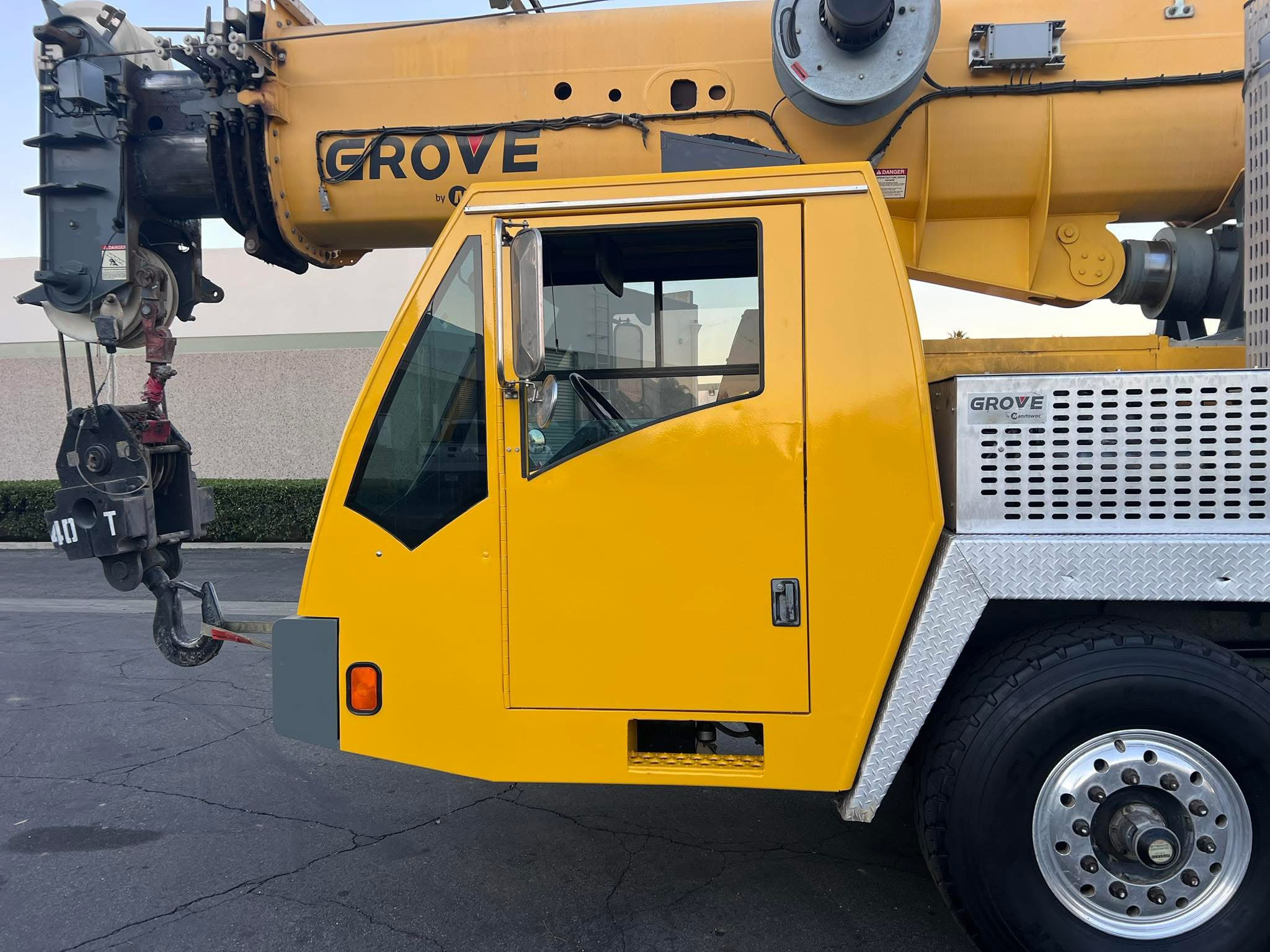

Crane did have a accident that damaged front cab see in the pictures It has been profesionaly repaired and better than new,
CARB Compliant.

Boom:

Boom: 36'-142' Five Section Full Power Boom
Boom Length: 142'

Jib:

Jib: 33' - 56' bi-fold lattice swingaway extension (Jib)
Jib Length: 56'

Boom/Jib Notes:

36'-142' Five Section Full Power Boom with patented TWIN-LOCK boom pinning system and Quick reeving type boom nose,
33' - 56' bi-fold lattice swingaway extension (Jib) Offsettable at 0°, 25° and 45° Stows alongside base boom section, with Jib Brackets,

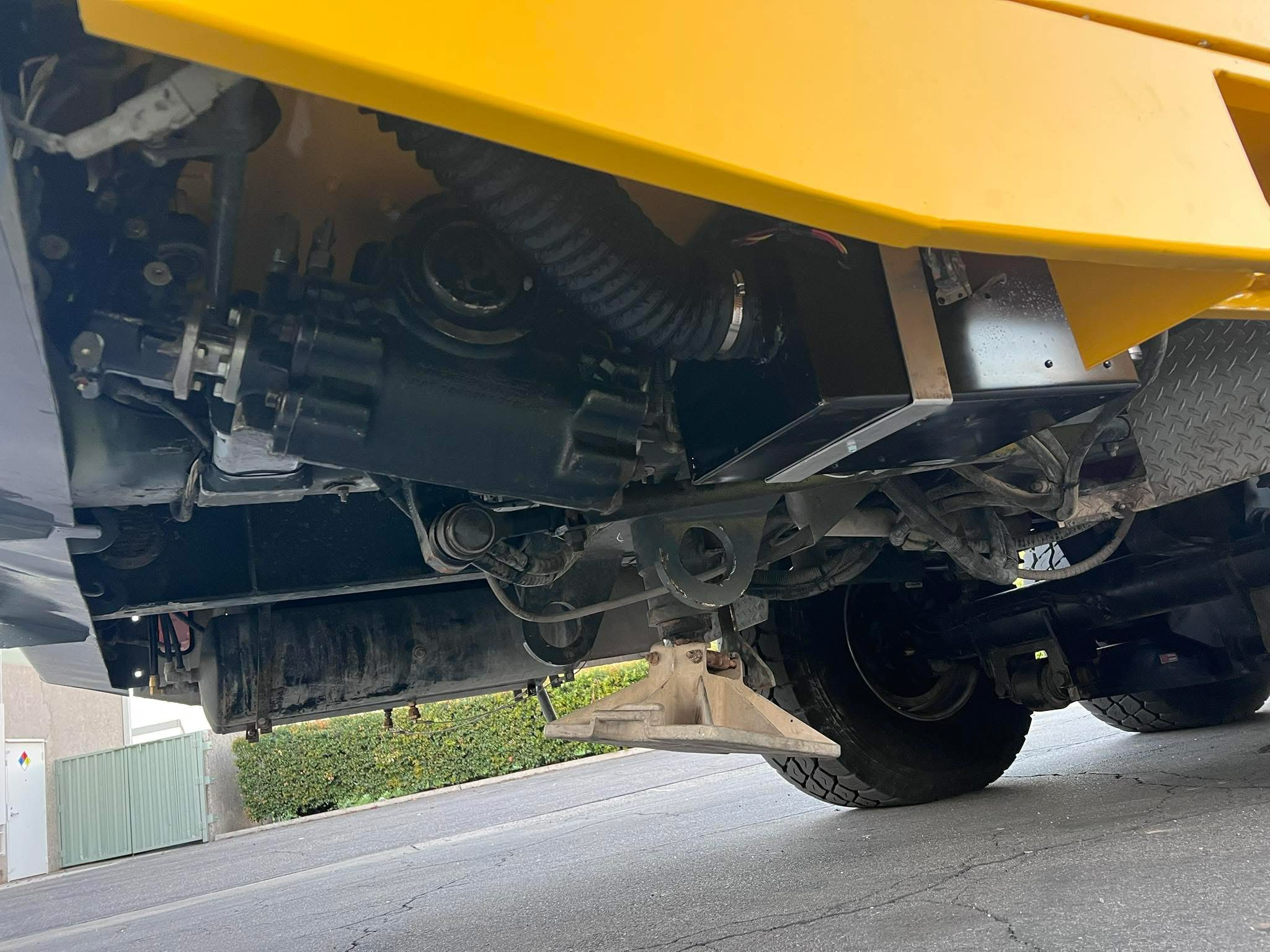

Carrier: 7' 62" wide 8 x 4 x 4 Drive Grove Carrier
Mileage:

Carrier Notes:

7' 62" wide 8 x 4 x 4 Drive Grove Carrier,
Cummins Cummins ISX11.9 Diesel Engine,
Eaton Manual Transmission,
Front Tires: 445/65R 22.5, tubeless, high quality, mounted or aluminum disc wheels - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
Rear Tires: 315/80R 22.5, tubeless, high quality, mounted on aluminum disc wheels - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
Crane did have a accident that damaged front cab see in the pictures It has been profesionaly repaired and better than new,
CARB Compliant.

Documents
grove-tms9000e-spwecifications-and-charts.pdf (5.61 MB)
