Lattice Boom Crawler

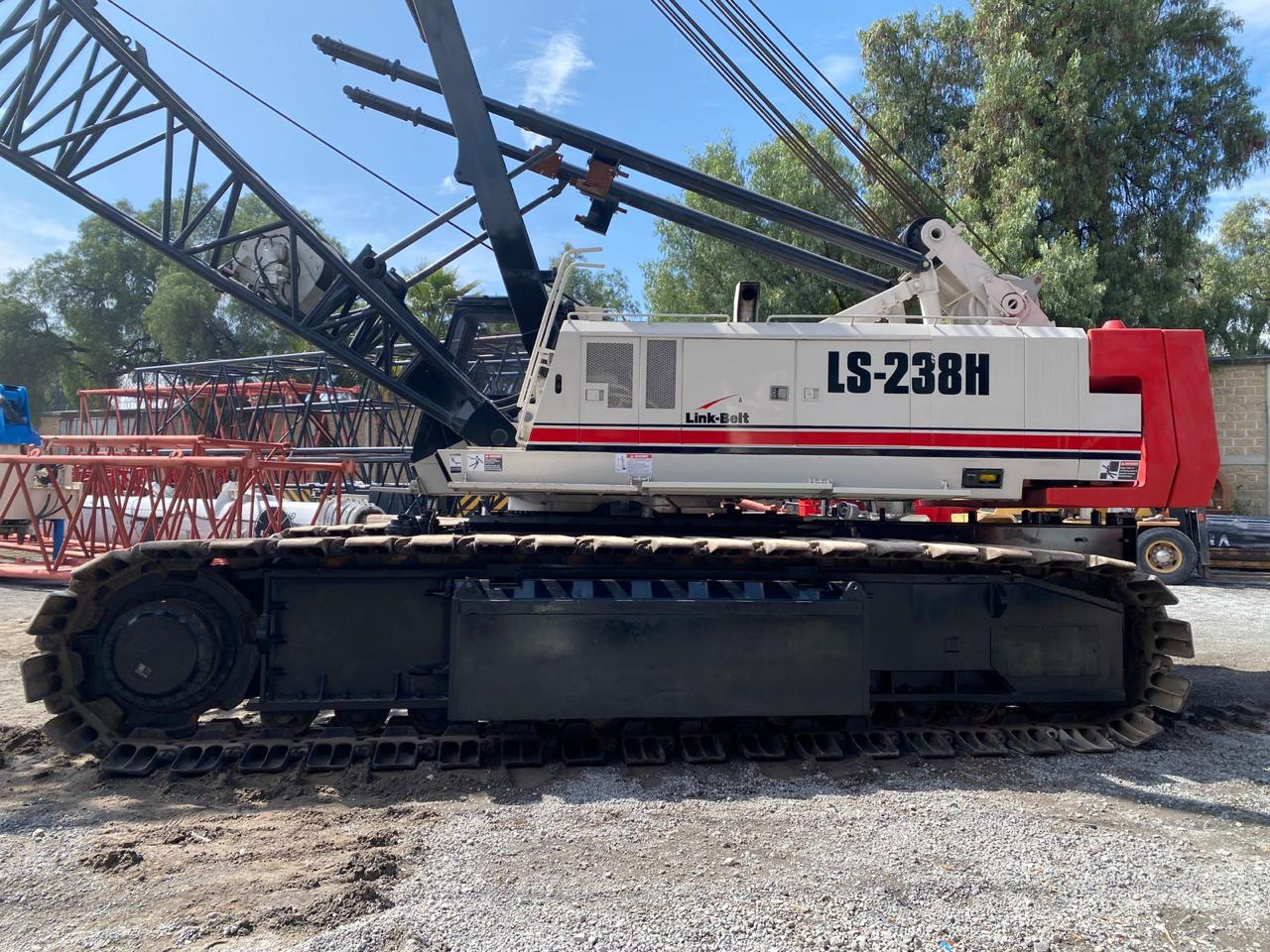

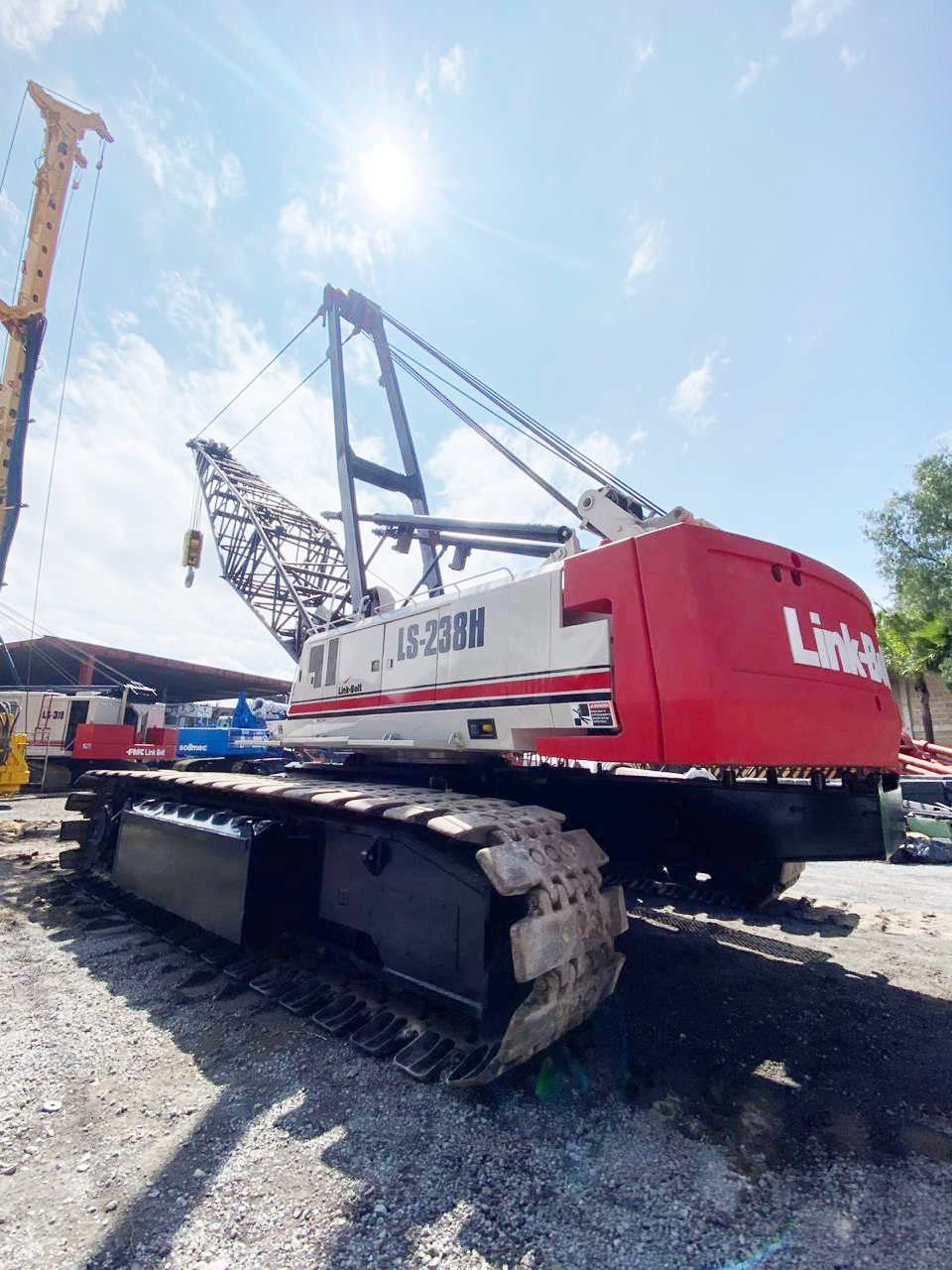

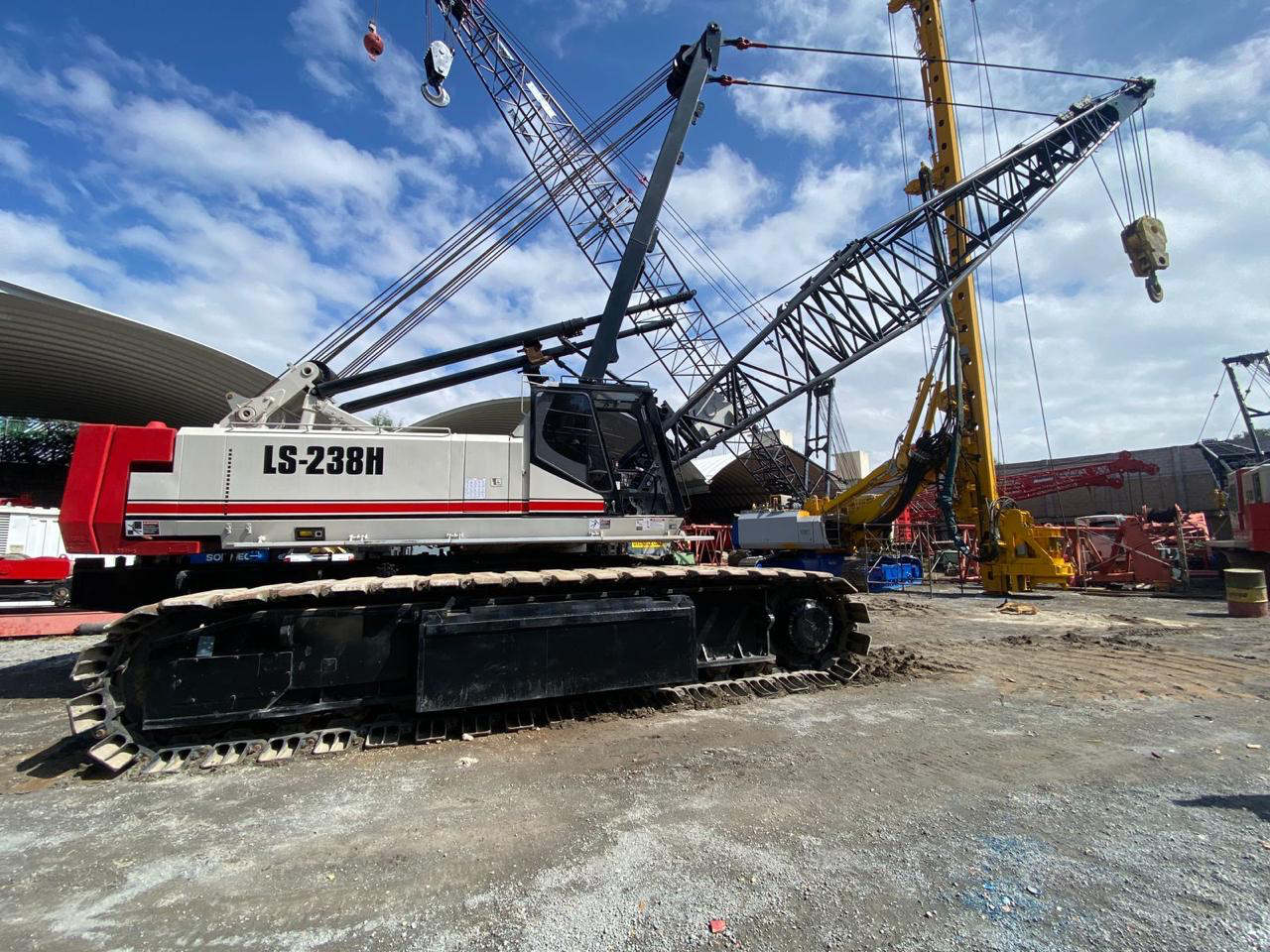

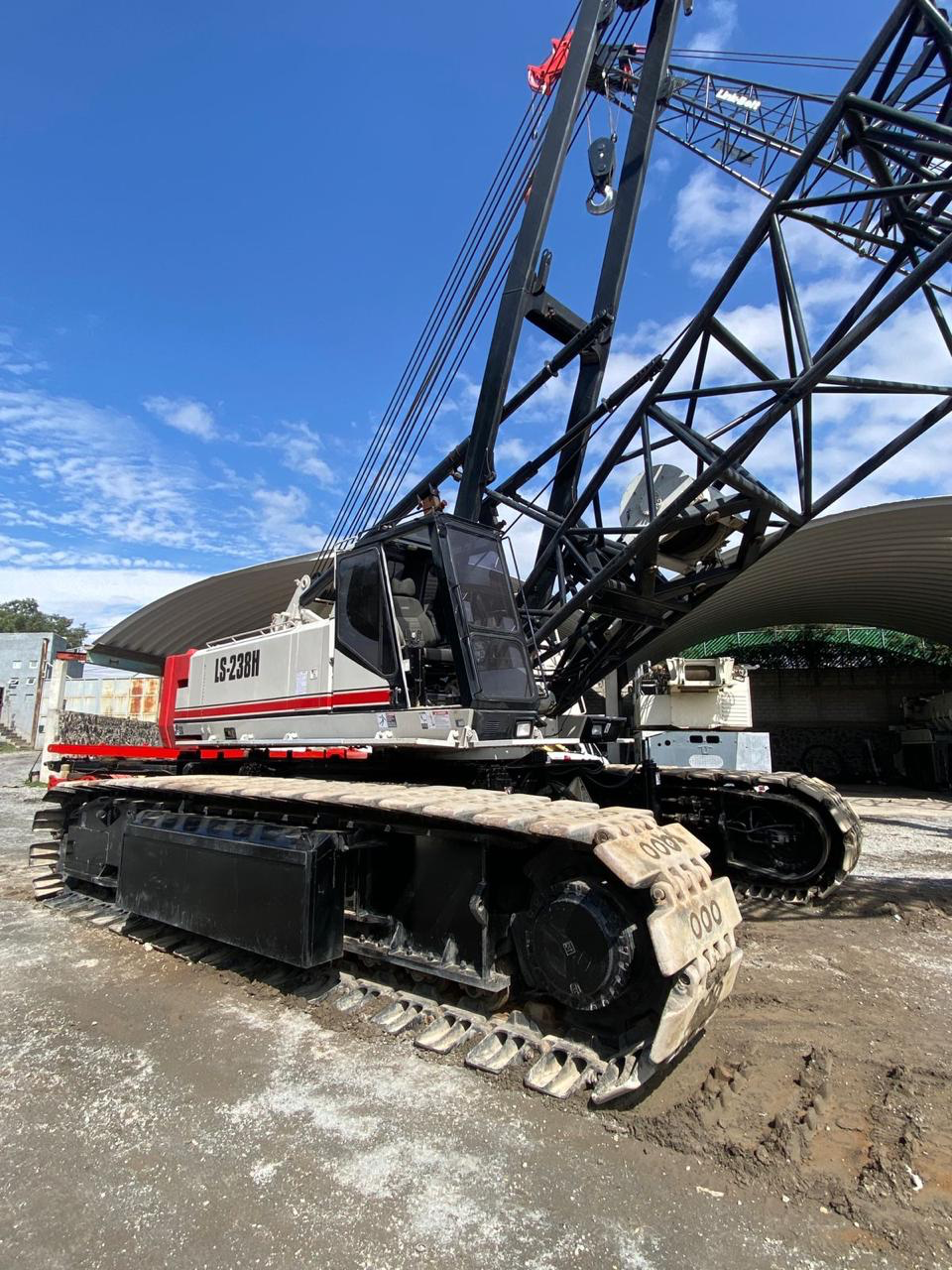

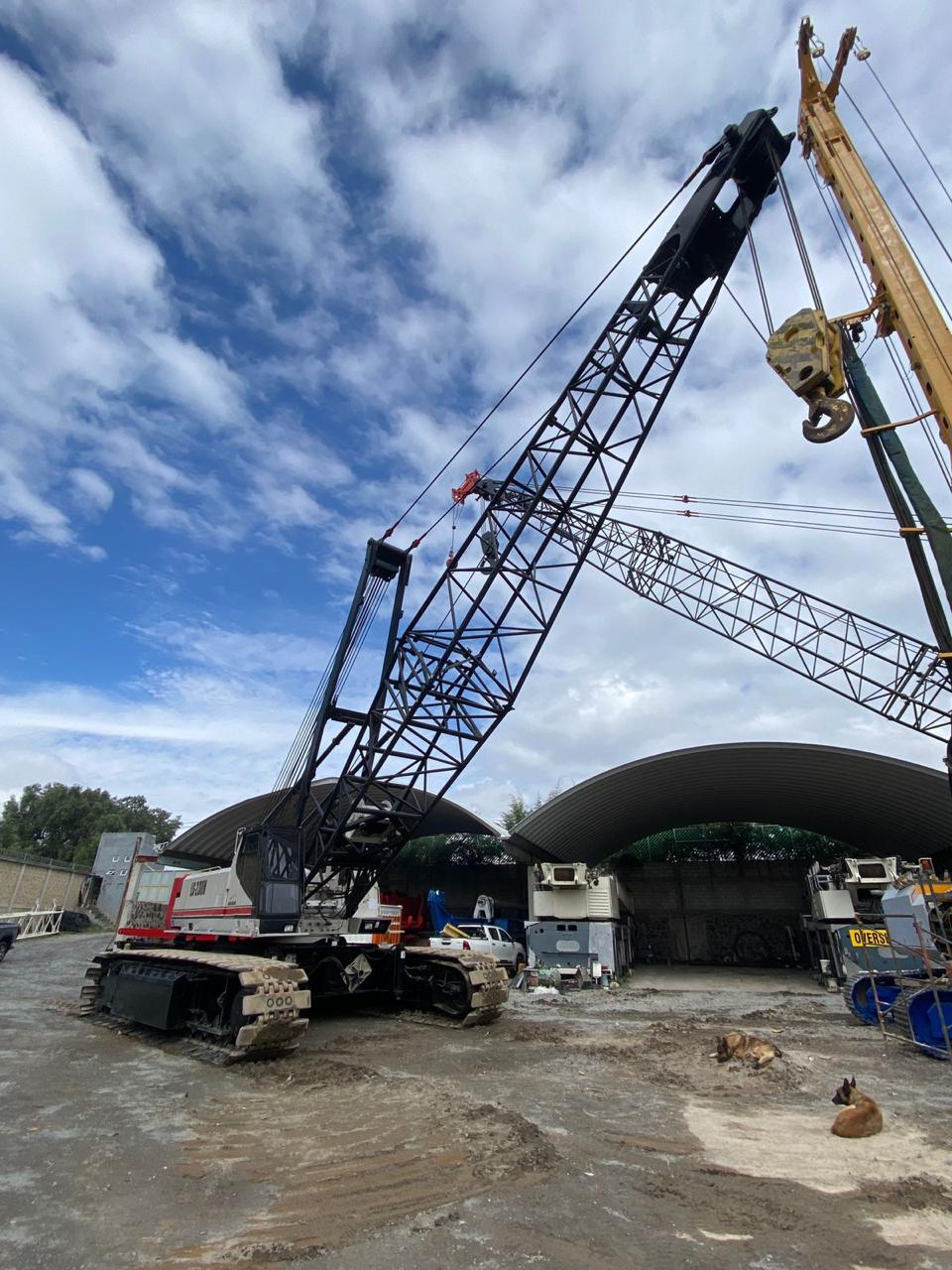

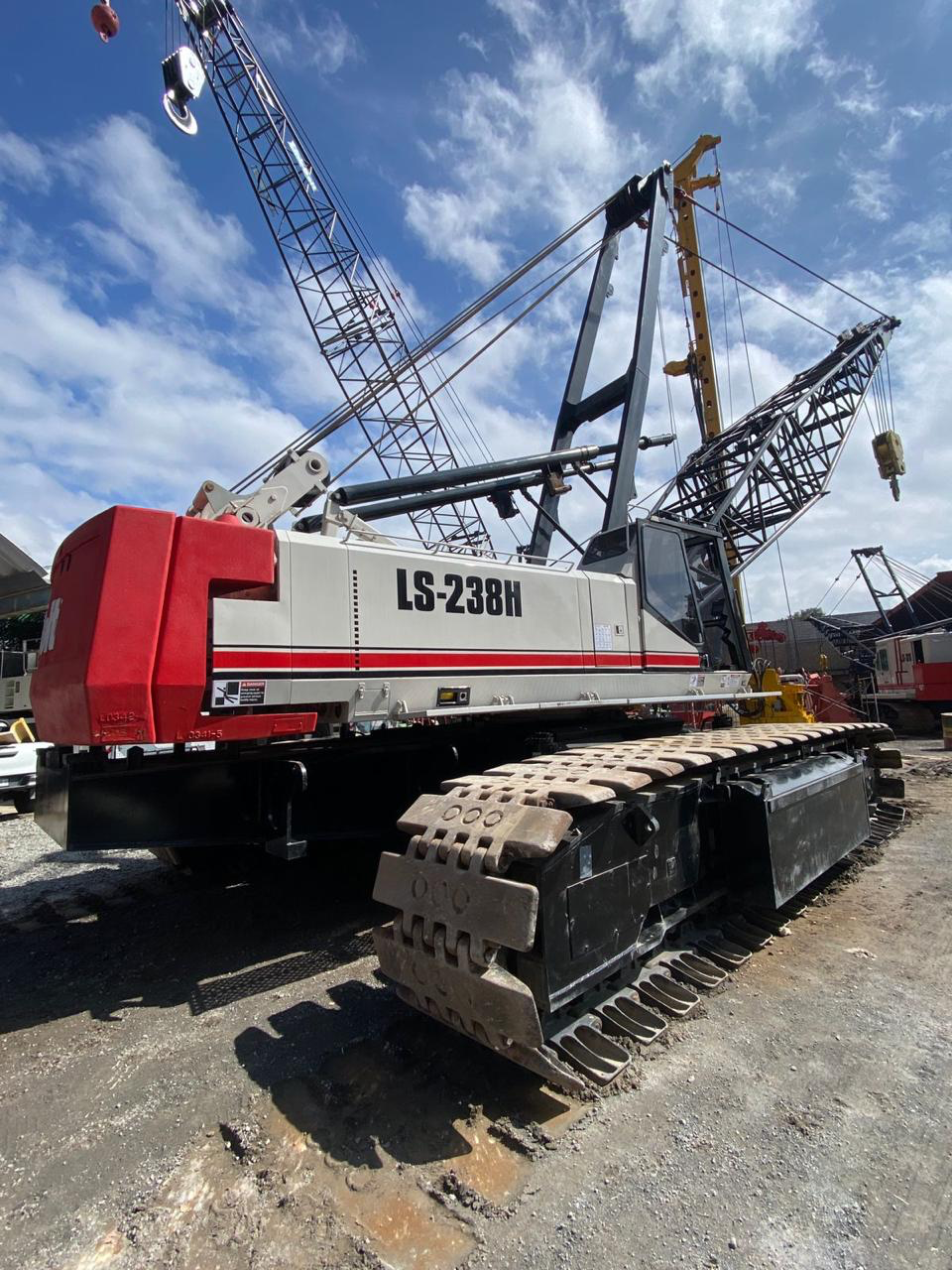

2002 Link-Belt LS238H

Ready to Go to Work!
$504,900

CranesList ID: 989

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2002
Make: Link-Belt
Model: LS238H
Crane Type: Lattice Boom Crawler
Serial:
Tons: 150
Weight:
Location: Mexico
Price: $504,900
CranesList ID: 989
Good Condition

Notes

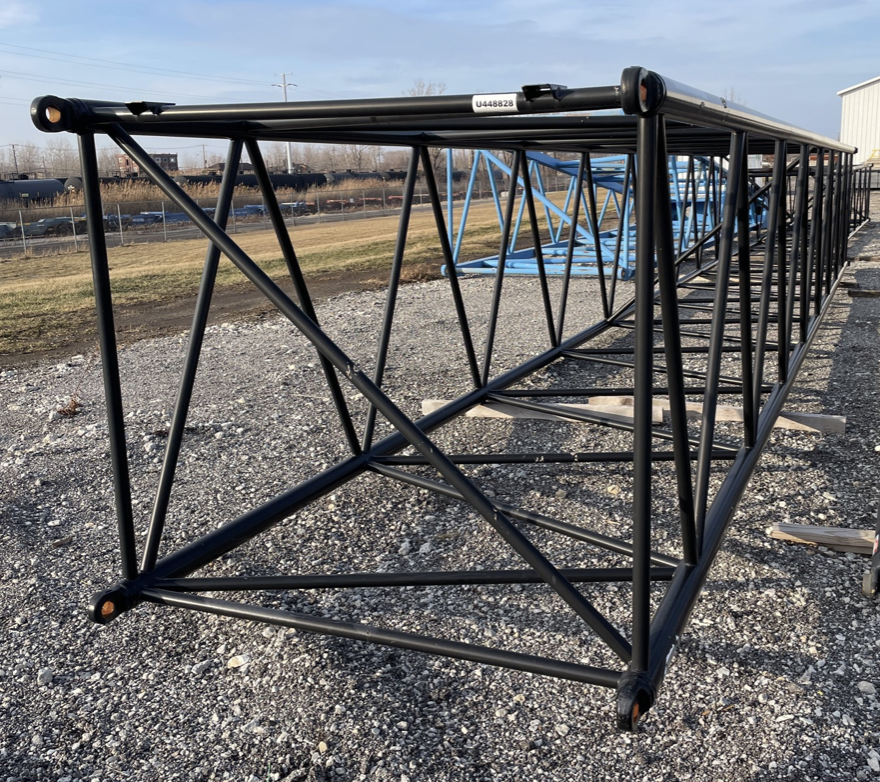

  • 100' Main Tubular Boom consiting of 1 x 20' Base Section, 1 X 30' Point Section, *1 X 10' Insert, *1 X 40' Inserts (*These inserts are currently located in Texas)
  • No Jib,
  • Main and Auxiliary Winches with 7/8" wire rope,

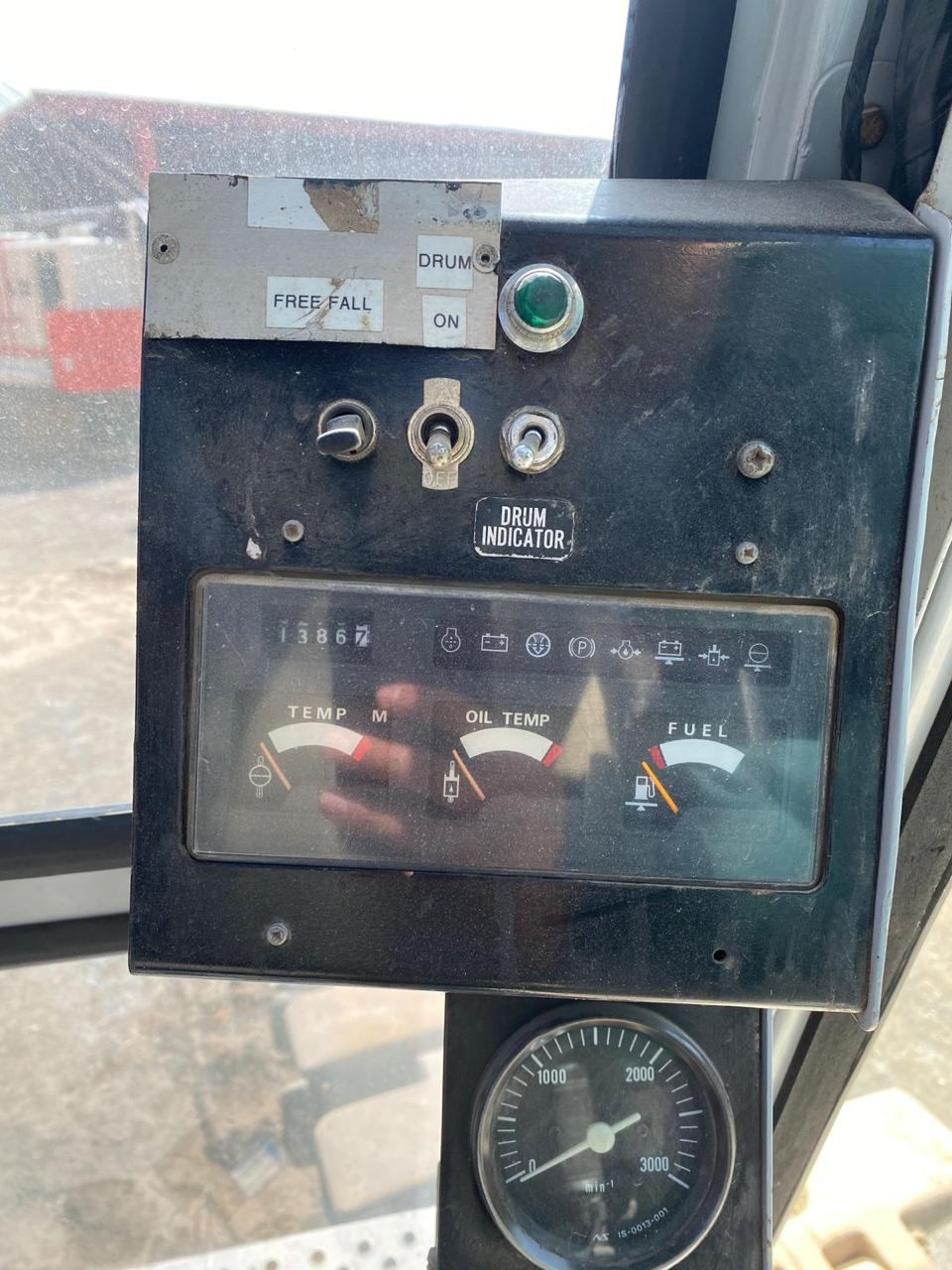

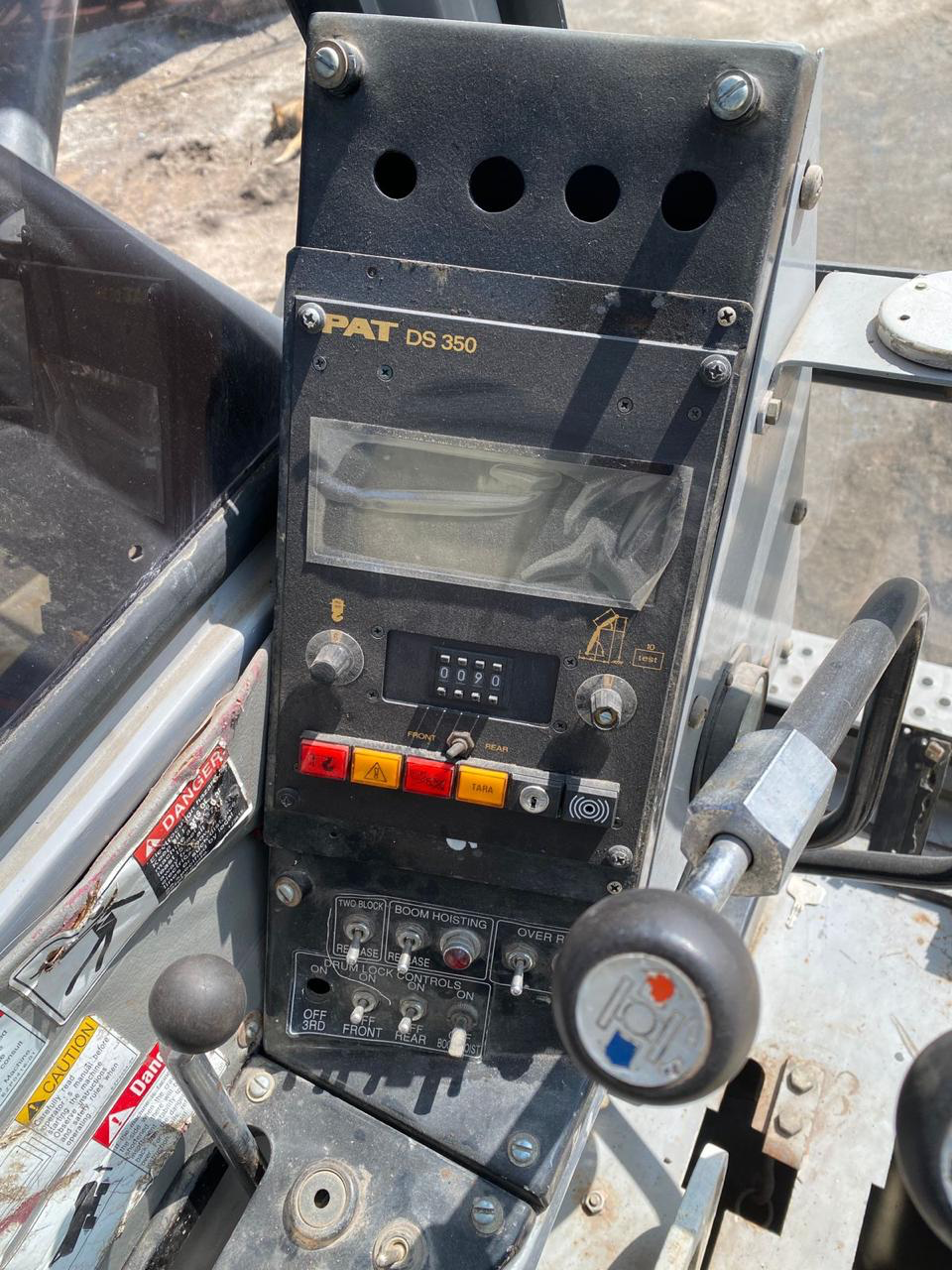

  • Two Speed, Drum Rotation Indicator, Power Load Lowering and Freefall, Load Indicator with Anti-Two Block,
  • Independent hydraulic travel/steering,
  • Catwalks - Standard on right and left sides. Catwalks remove for reduced travel width.
  • Hook Block,

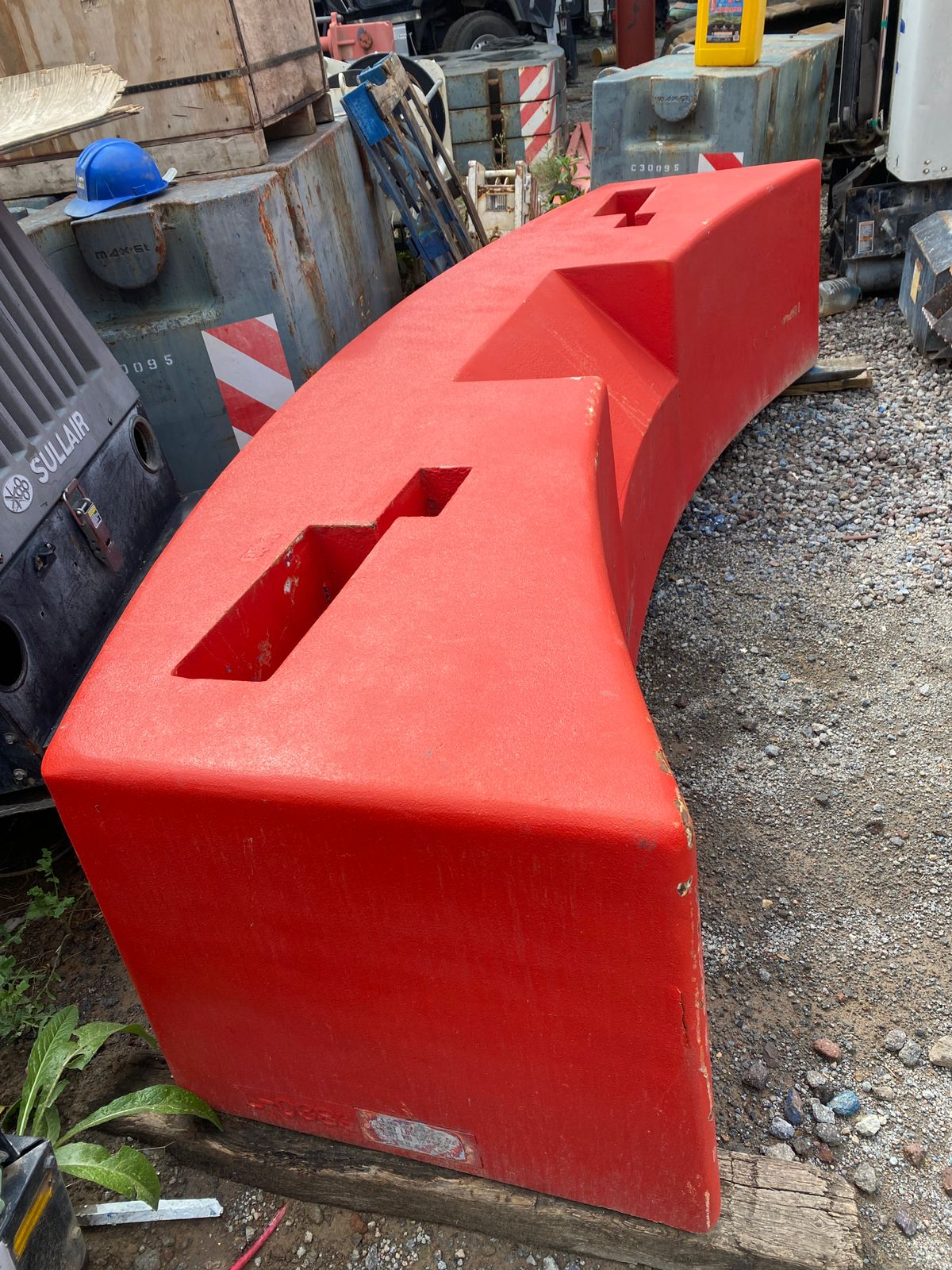

  • "A - 23,000#, B - 19,330# , C - 26,670# upper. = 69,000#  Total Complete Counterweights,
  • 19' 2" Wide Link-Belt Carbody,

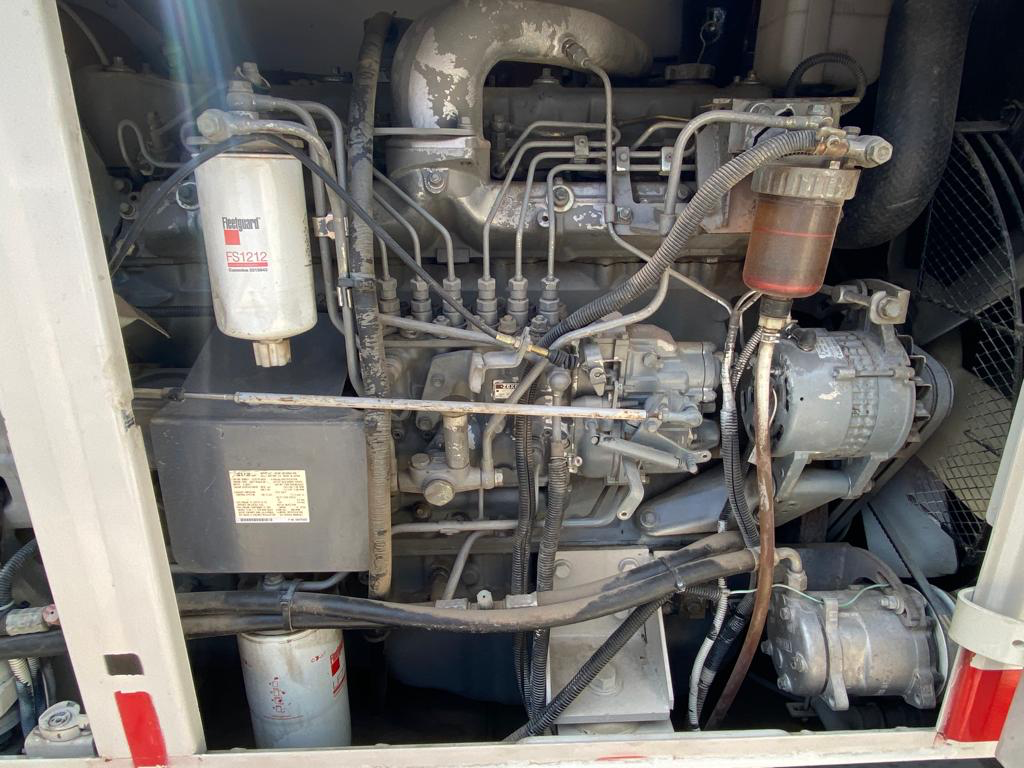

  • Isuzu 6SD1TQB, 6 Cylinder Diesel Engine,
  • 44" Track Shoes, 42 shoes per side frame,
  • Certification In Progress.

Location

Mexico

Crane Details

Boom/Jib

Boom/Jib Images
Boom:

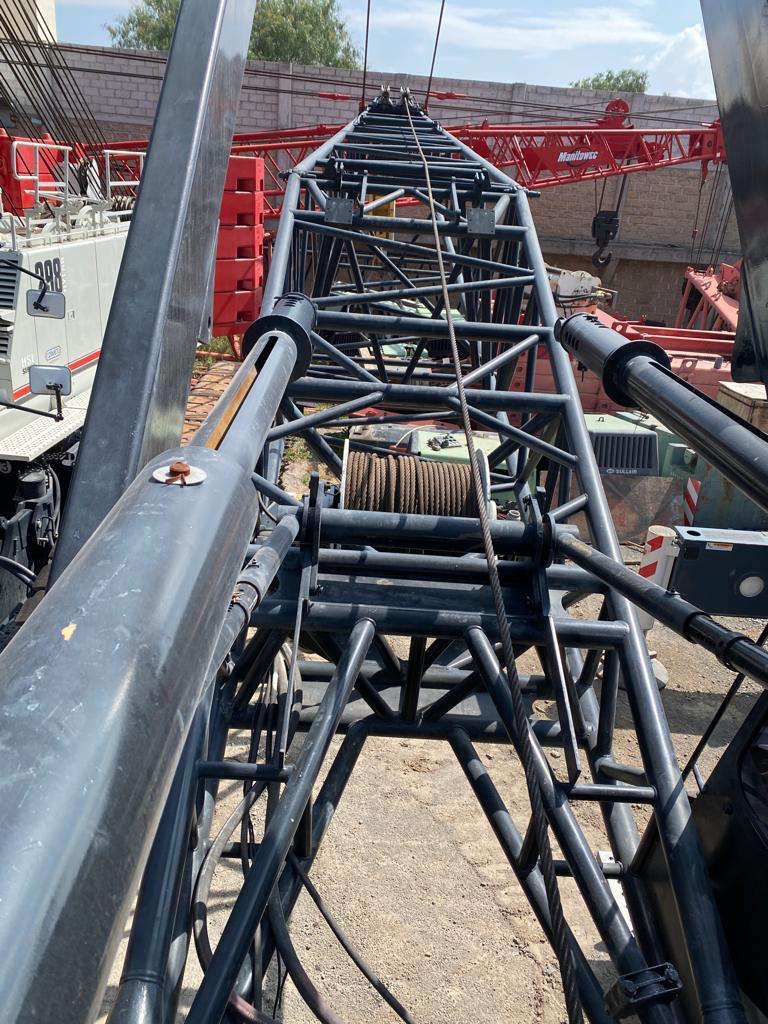

Boom: 100' Main Tubular Boom
Boom Length: 100'
Jib:
Jib: No Jib
Jib Length:
Boom/Jib Notes:

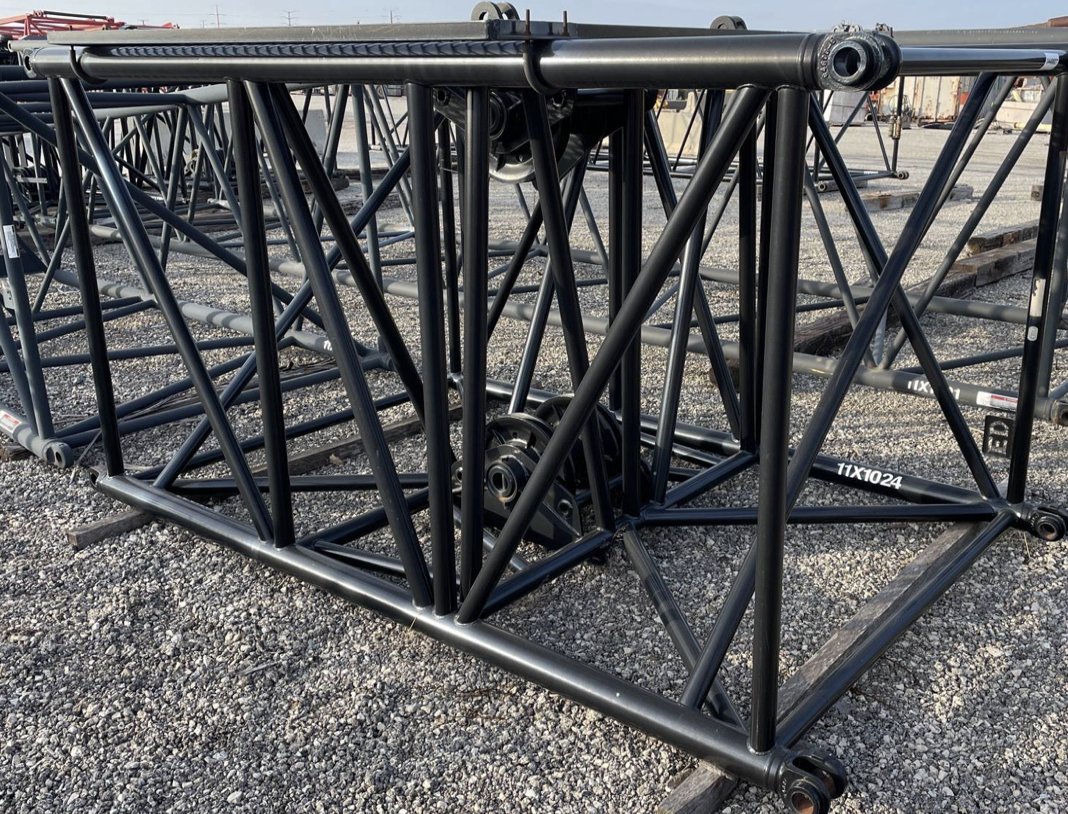

  • 100' Main Tubular Boom consiting of 1 x 20' Base Section, 1 X 30' Point Section, *1 X 10' Insert, *1 X 40' Inserts (*These inserts are currently located in Texas)
  • No Jib.

Carrier

Carrier images

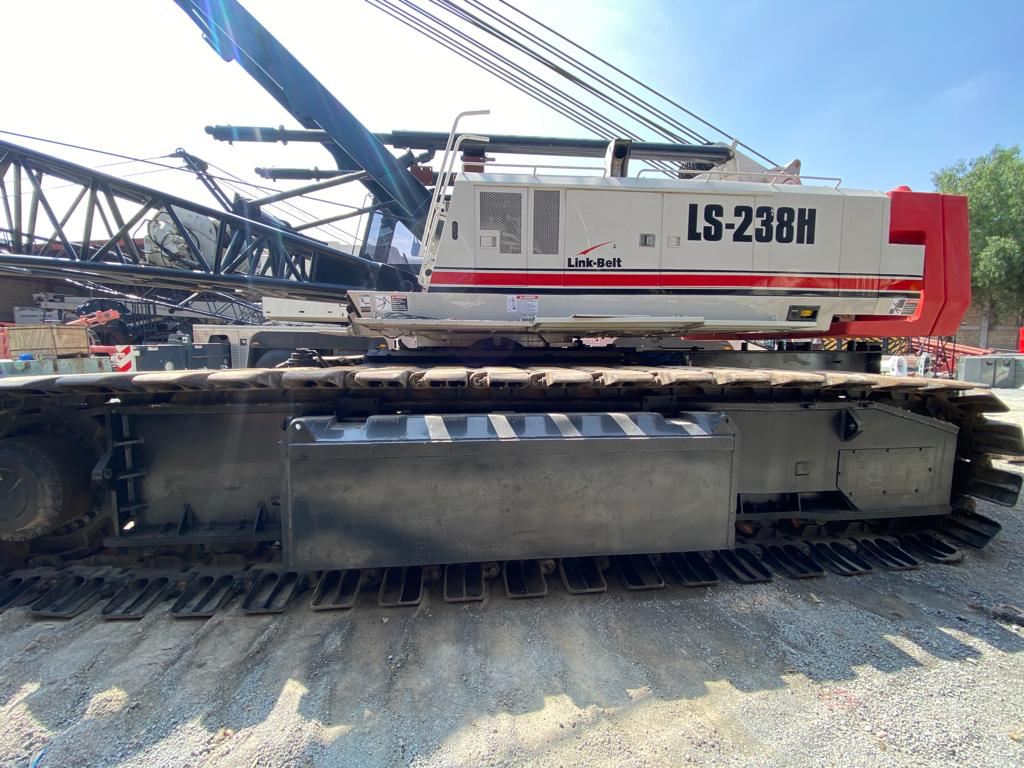

Carrier: 19' 2" Wide Link-Belt Carbody
Mileage:
Carrier Notes:
  • 19' 2" Wide Link-Belt Carbody,

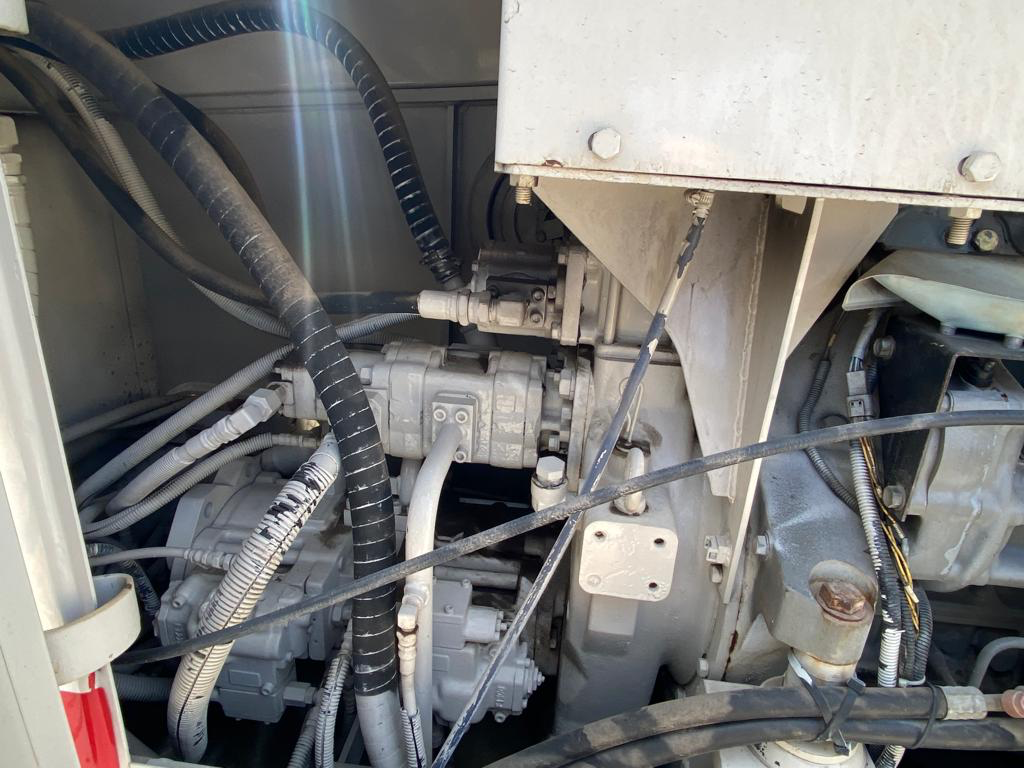

  • Isuzu 6SD1TQB, 6 Cylinder Diesel Engine,
  • 44" Track Shoes, 42 shoes per side frame.

Lifting System

Lifting System Images
Hours: 1,390 Showing as of 5.2025
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:

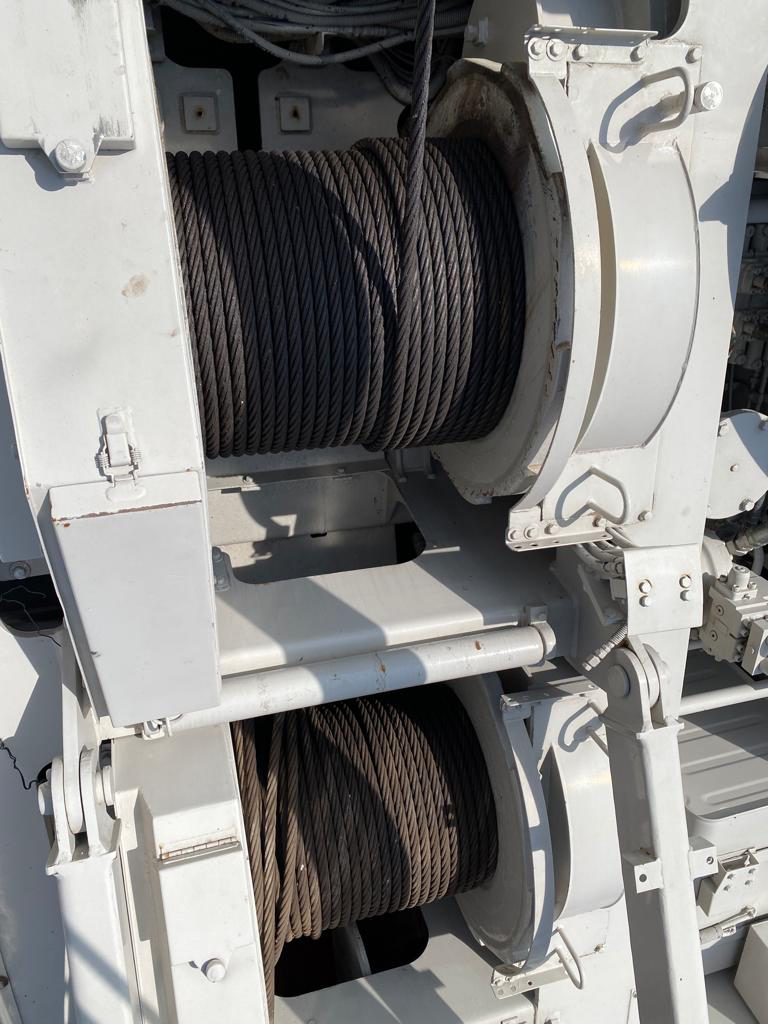

  • Main and Auxiliary Winches with 7/8" wire rope,
  • Two Speed, Drum Rotation Indicator, Power Load Lowering and Freefall, Load Indicator with Anti-Two Block,
  • Independent hydraulic travel/steering.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block
Hook Block/Hook Ball Notes:
  • Hook Block.
