All Terrain

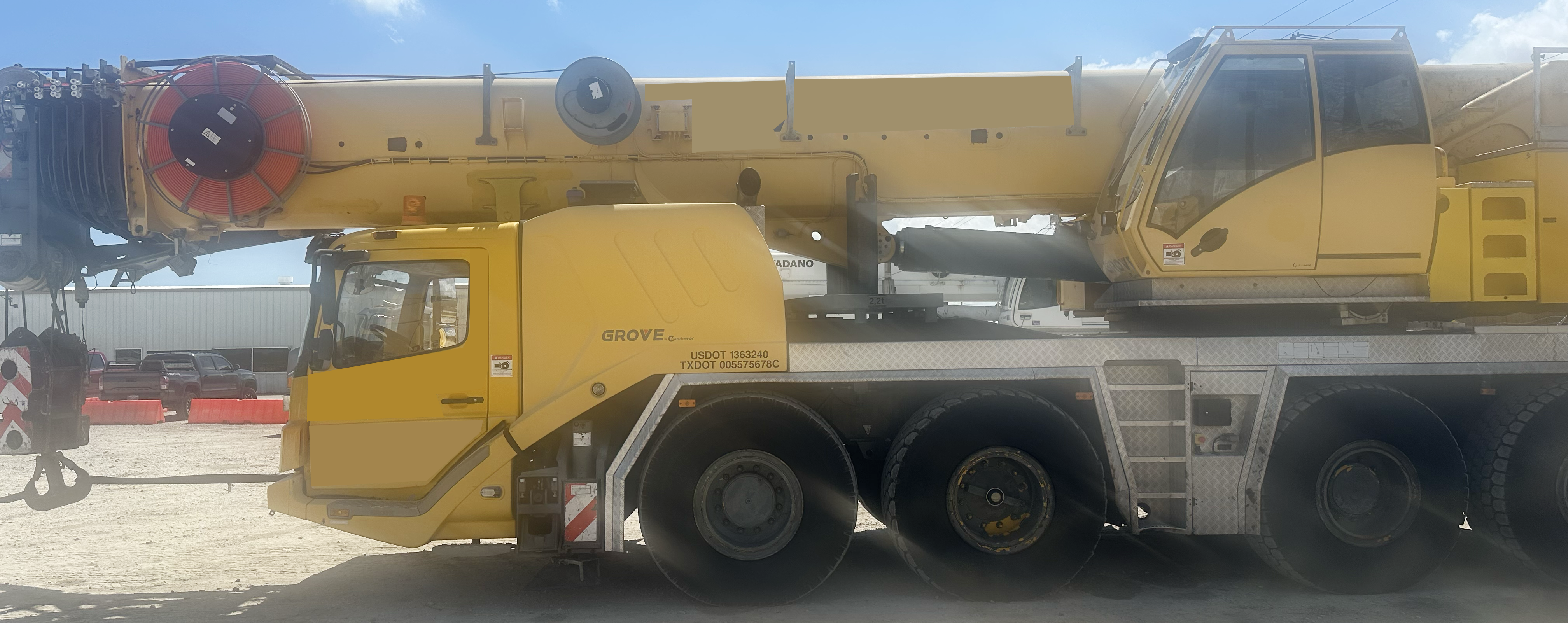

2012 Grove GMK4100L

Ready to Go to Work!
$499,900

CranesList ID: 1055

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2012
Make: Grove
Model: GMK4100L
Crane Type: All Terrain

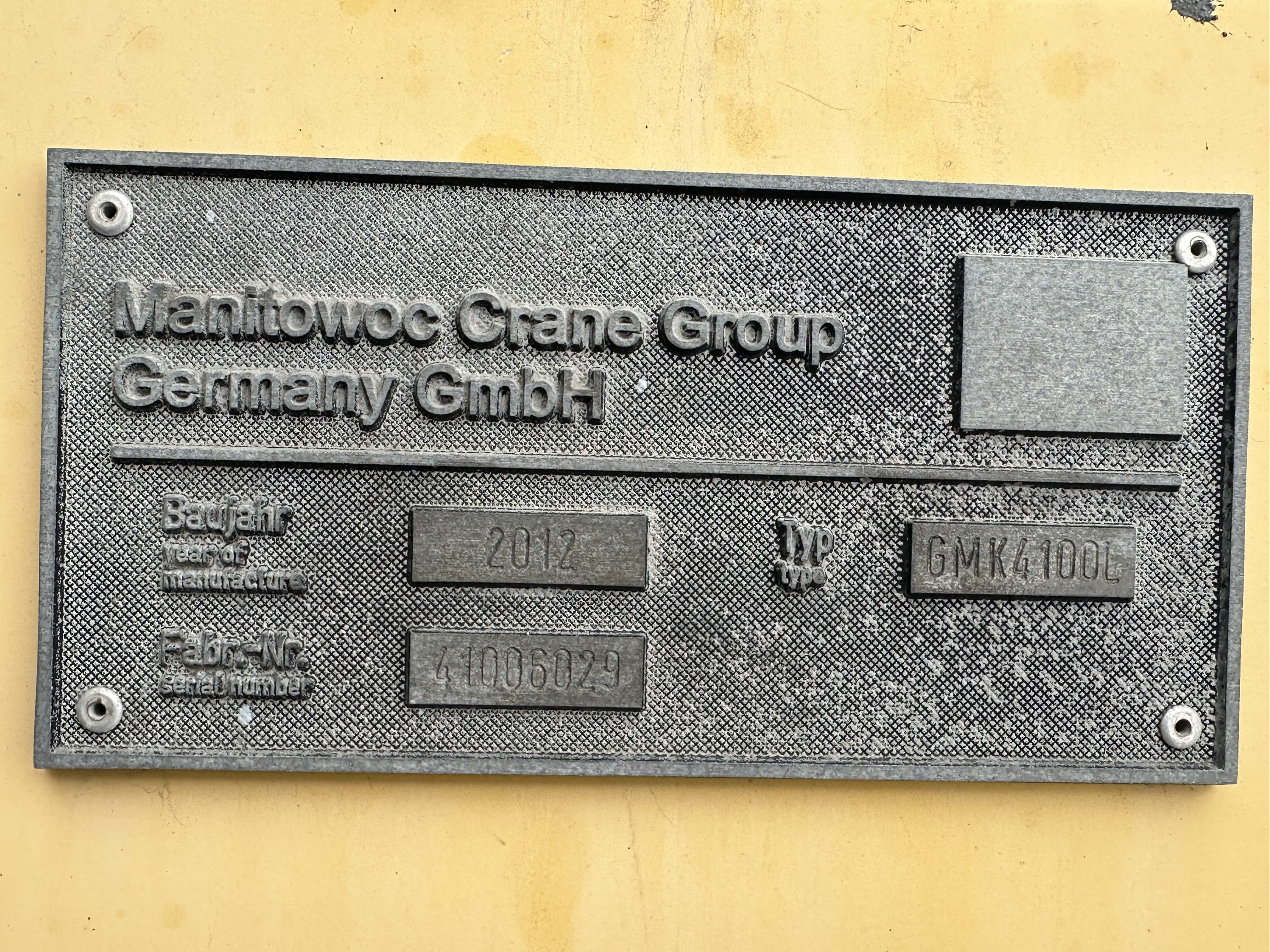

Serial: 4100-6029
Tons: 115
Weight: 105,821#
Location: Texas
Price: $499,900
CranesList ID: 1055
Good Condition
Annual Crane inspection
Annual Inspection

Certified

OSHA Certified

Notes

  • 38’-197’ Seven Section Full Power Boom with MEGAFORM Boom patented TWIN-LOCK™ boom pinning system with Auxiliary Lifting Sheave,
  • 36'- 58' Swing Away Lattice Extension (Jib). off-settable @ 0, 20 and 40 Degrees,
  • Main and Auxiliary Winches,

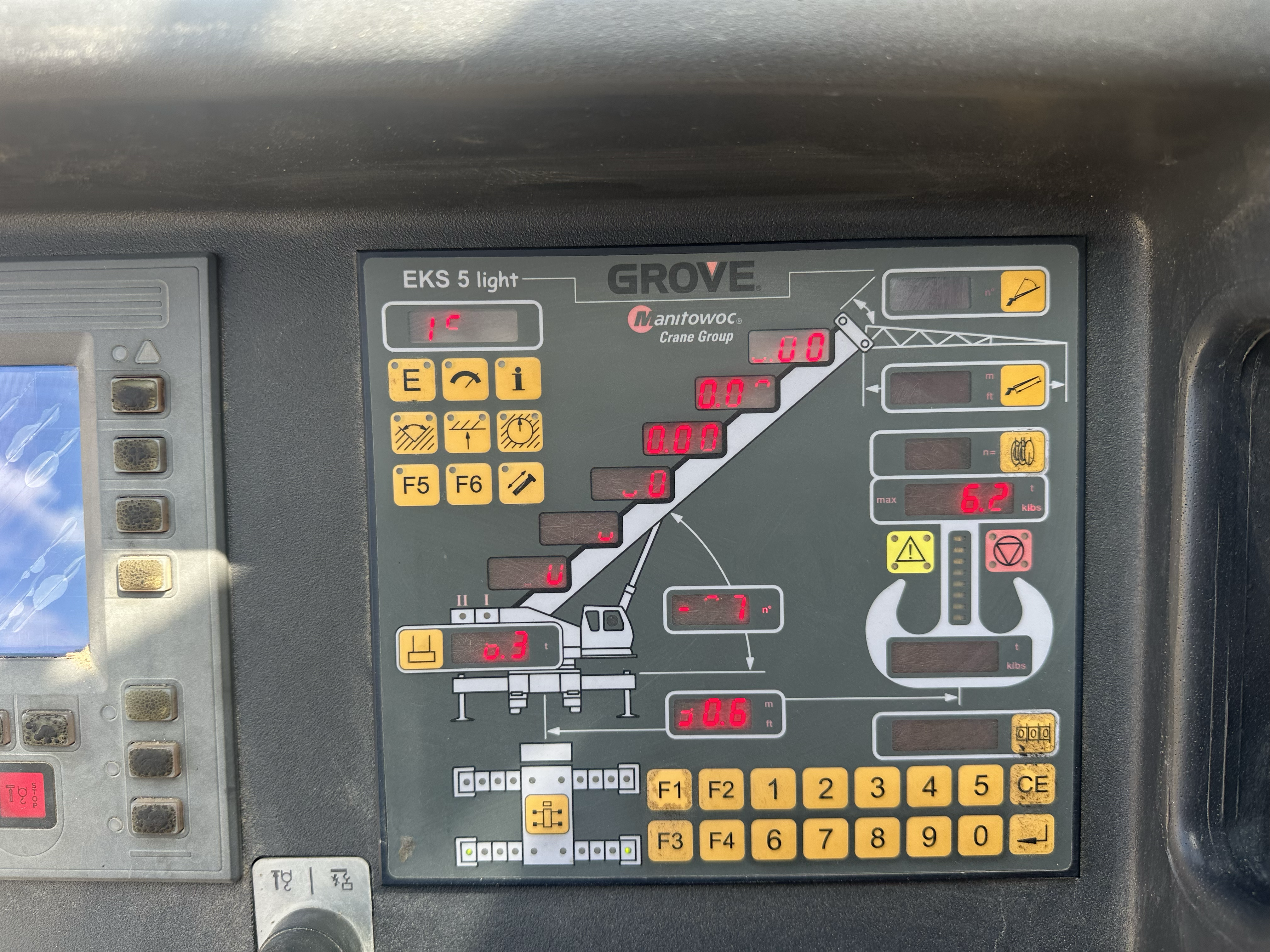

  • Drum Rotation Indicator, 2 Speed, Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two block condition,
  • Full electronic control of crane functions using control levers with automatic reset to zero. Integrated with the LMI and engine management systems by CAN-BUS. ECOS system with graphic display,
  • Mercedes-Benz OM 904 LA, diesel engine, 4 cylinders, water cooled, turbocharged (175 HP) at 2200 rpm. (80/1269 EWG - fan rigid). Max. torque: 580 Nm at 1200-1600 rpm. Fuel tank capacity: integrated in carrier fuel reservoir Engine emission: EUROMOT / EPA / CARB UP,
  • 9 Ton Headache Ball,
  • 80 Ton Hook Block,
  • 57,700# Total Counterweights with Hydraulic Removal removal system controlled from the superstructure cab,
  • Air Conditioning Up and Down,

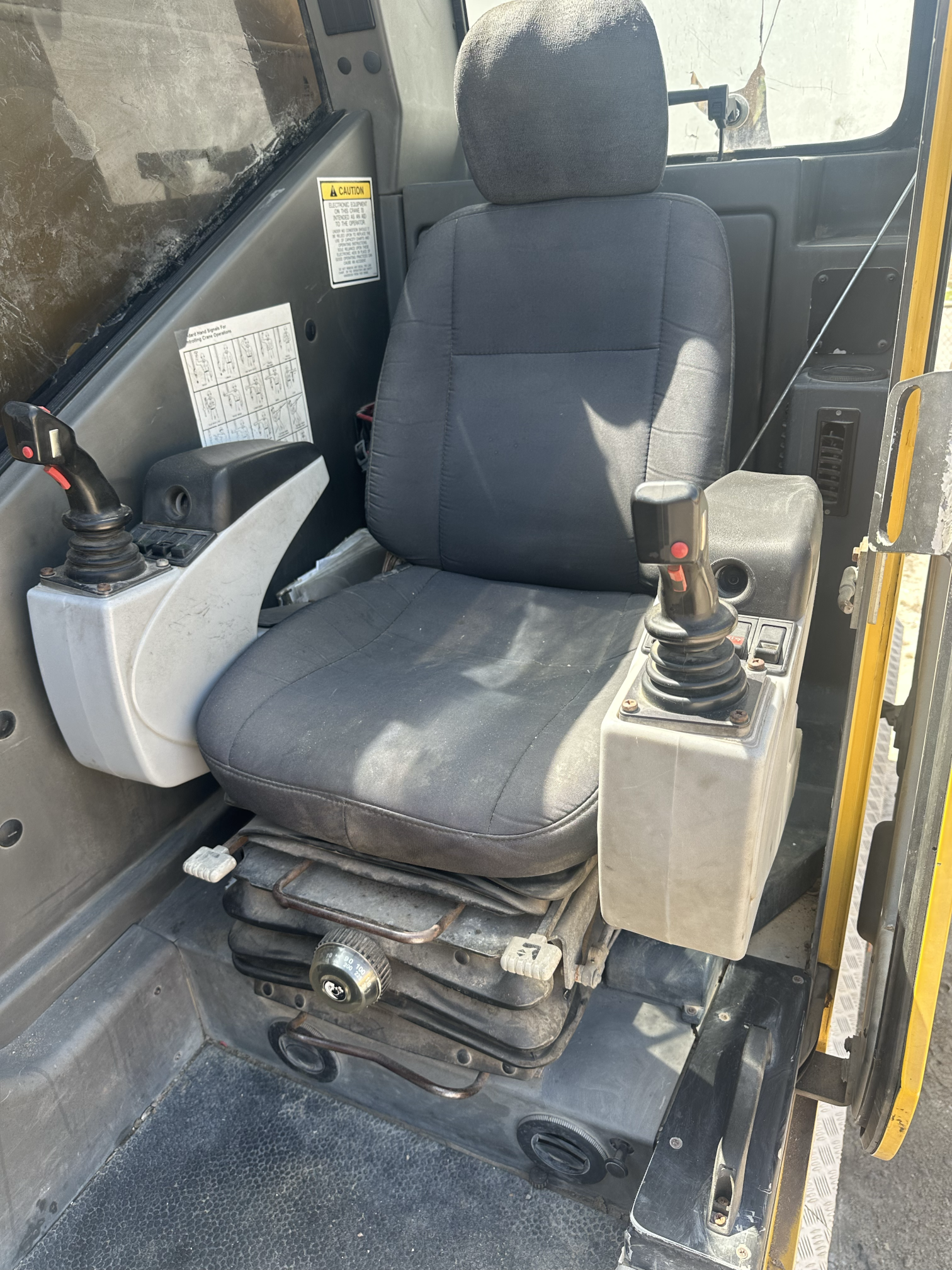

  • All aluminum constructed Operator's cab with acoustical lining, hydraulic tilted to 20°. Includes tinted safety glass, adjustable operator’s seat, opening windows at side and rear, hinged windshield with wiper, sun visor and window shade. Other features include diesel heater/ defroster, armrest integrated crane controls, drive/steer controls and ergonomically arranged instrumentation,
  • 9' wide Grove Two-man Carrier Cab, aluminum construction includes the following features: safety glass; driver seat with pneumatic suspension, passenger seat, engine-dependent heater, complete instrumentation and driving controls 8 x 6 x 8 Drive/Steer Carrier,
  • Mercedes in line 6 Diesel Engine,
  • Daimler Chrysler G 240-16 with EPS (Electronic Pneumatic Shifting), 16 forward and 2 reverse speeds. Two speed transfer case with inter-axle differential lock Transmission,
  • Front and Rear Tires: 16.00 R25,
  • Grove exclusive MEGATRAK™ suspension,
  • Four hydraulic single-stage outrigger beams with vertical cylinders and outrigger pads wih Electronic crane level indicators,
  • Fifth Front Outrigger,
  • Current 3rd Party Certification by Kempco Inspection Services.

Location

Texas

Crane Details

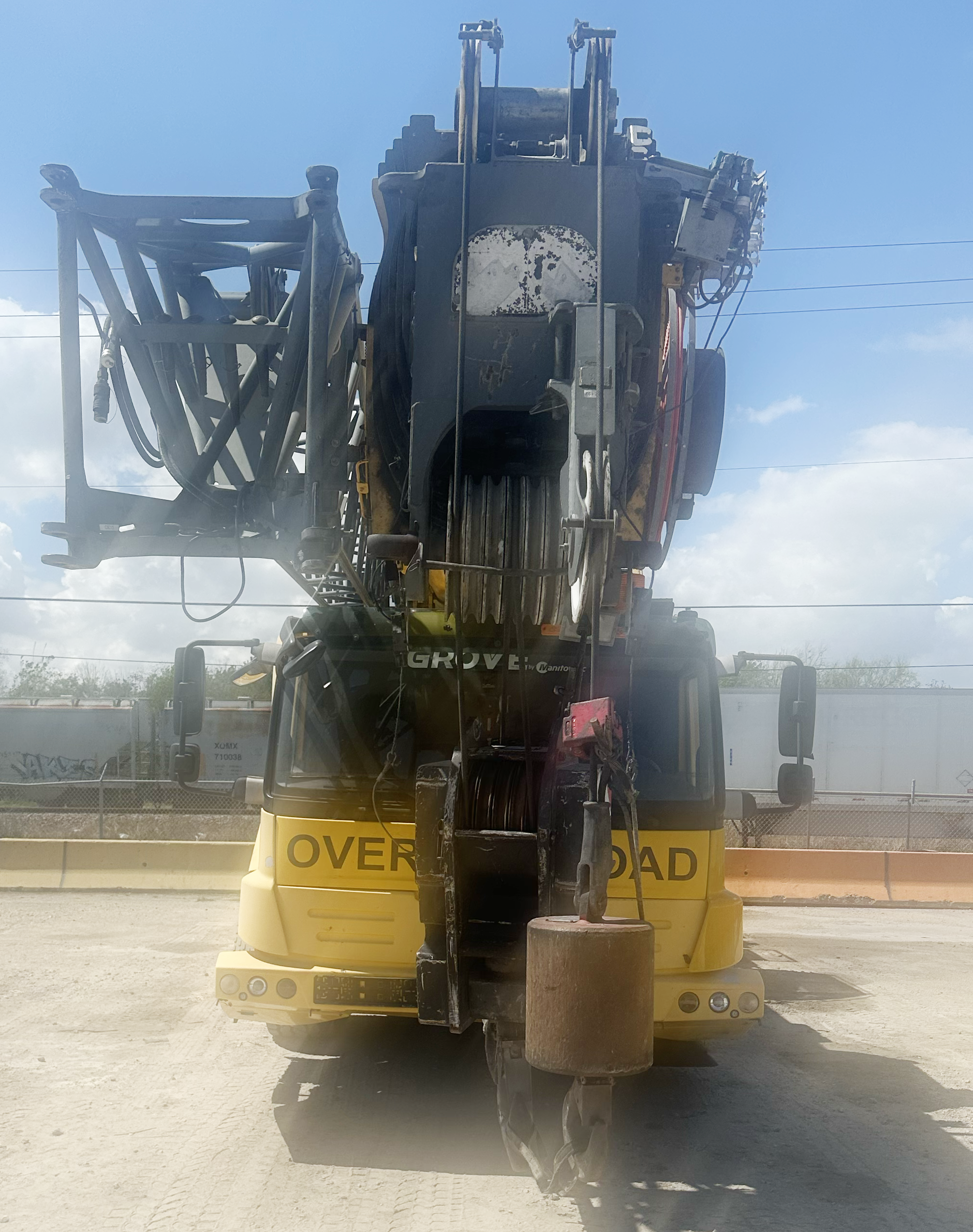

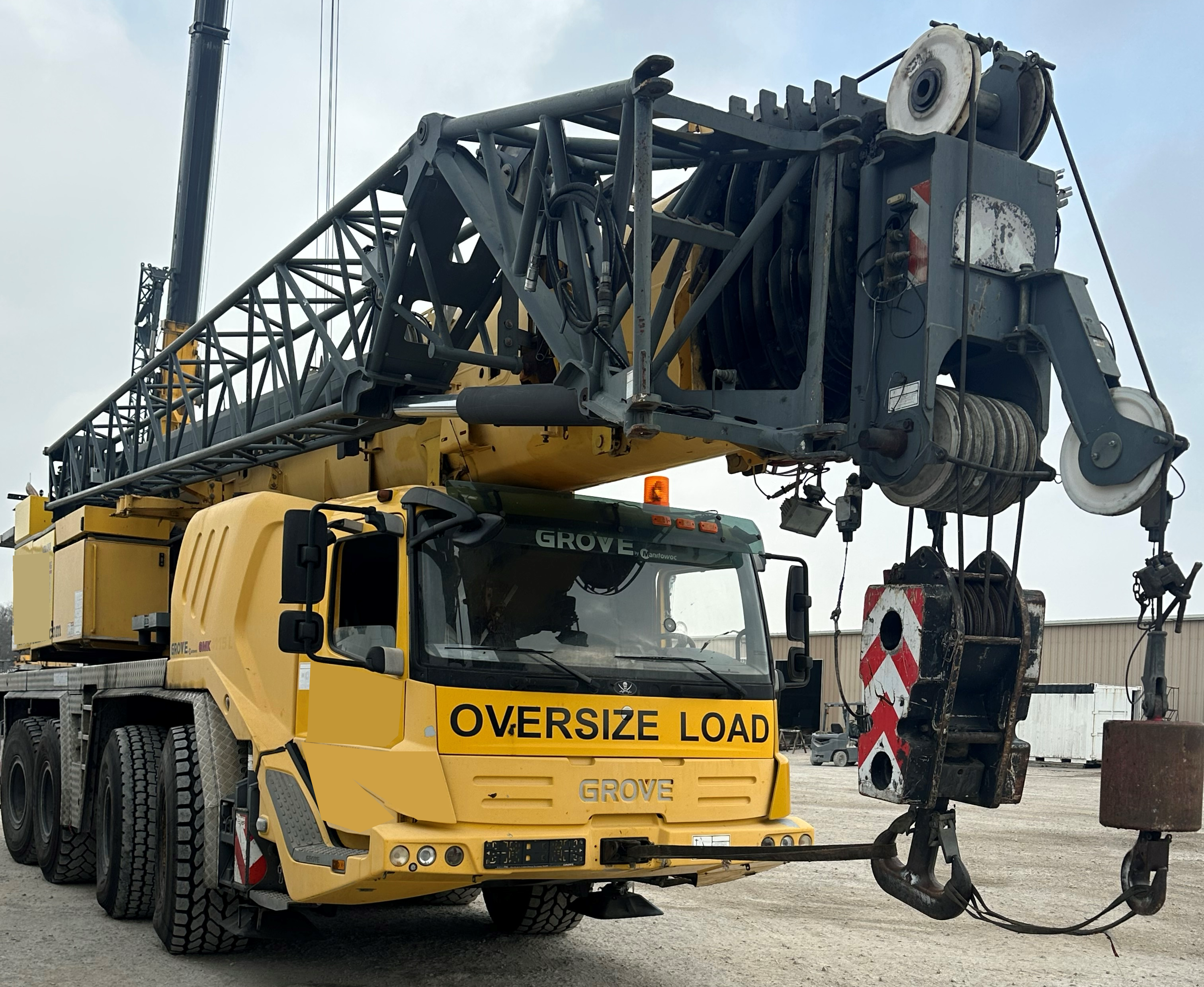

Boom/Jib

Boom/Jib Images
Boom:
Boom: 38’-197’ Seven Section Full Power Boom
Boom Length: 197'
Jib:
Jib: 36'- 58' Swing Away Lattice Extension (Jib)
Jib Length: 58'
Boom/Jib Notes:
  • 38’-197’ Seven Section Full Power Boom with MEGAFORM Boom patented TWIN-LOCK™ boom pinning system with Auxiliary Lifting Sheave,
  • 36'- 58' Swing Away Lattice Extension (Jib). off-settable @ 0, 20 and 40 Degrees.

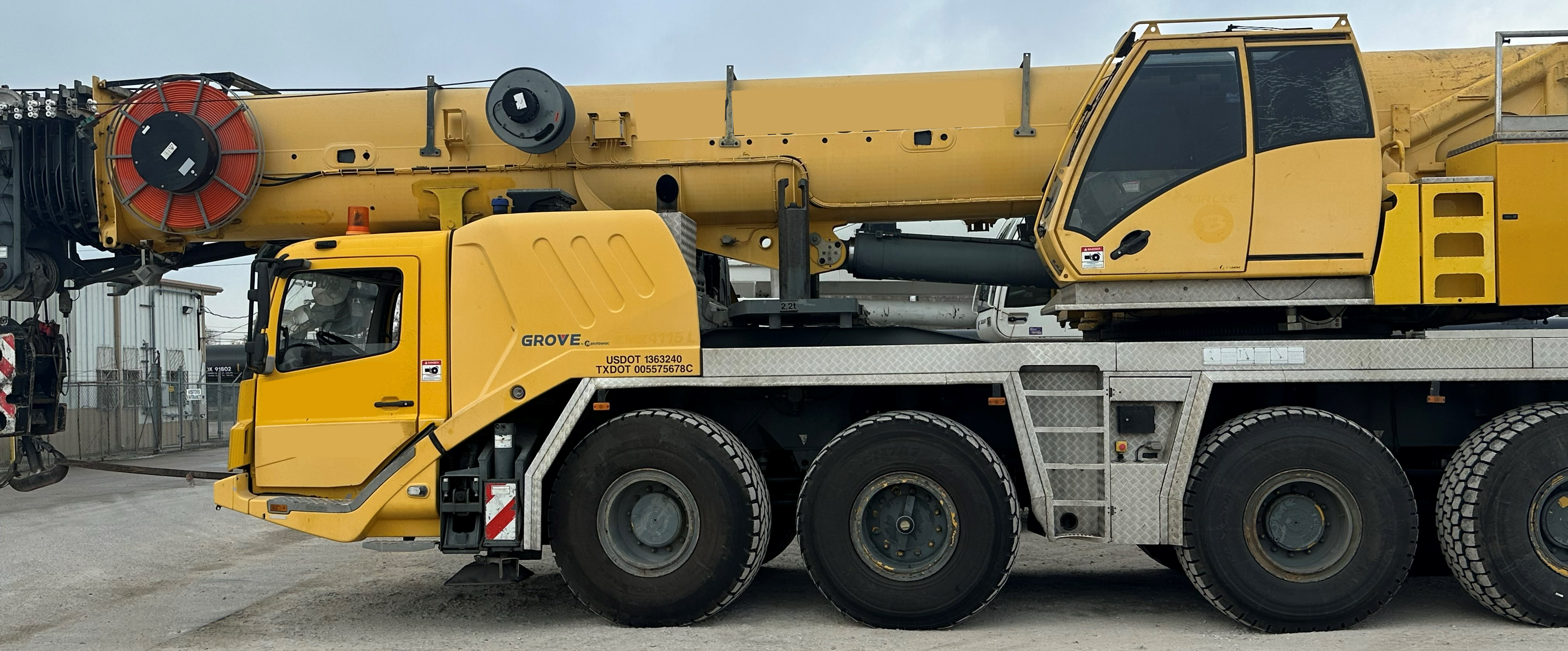

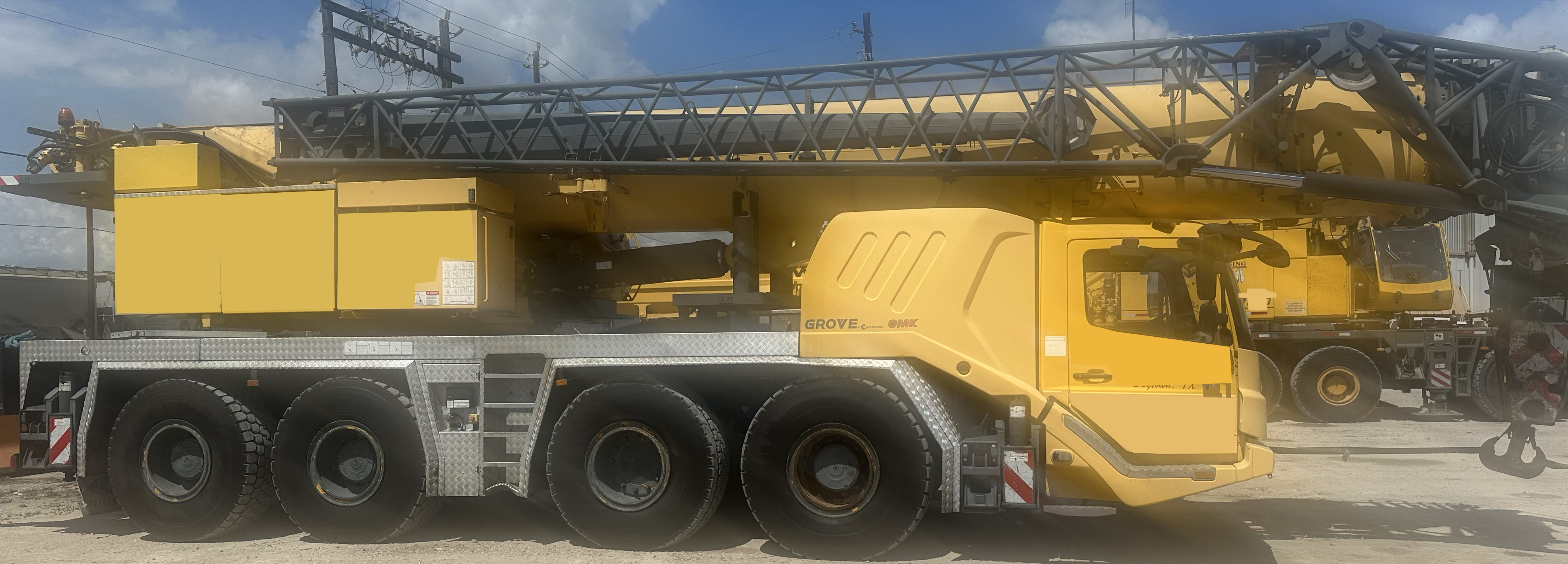

Carrier

Carrier images
Carrier: 9' wide Grove 8 x 6 x 8 Drive/Steer Two-man Carrier Cab,

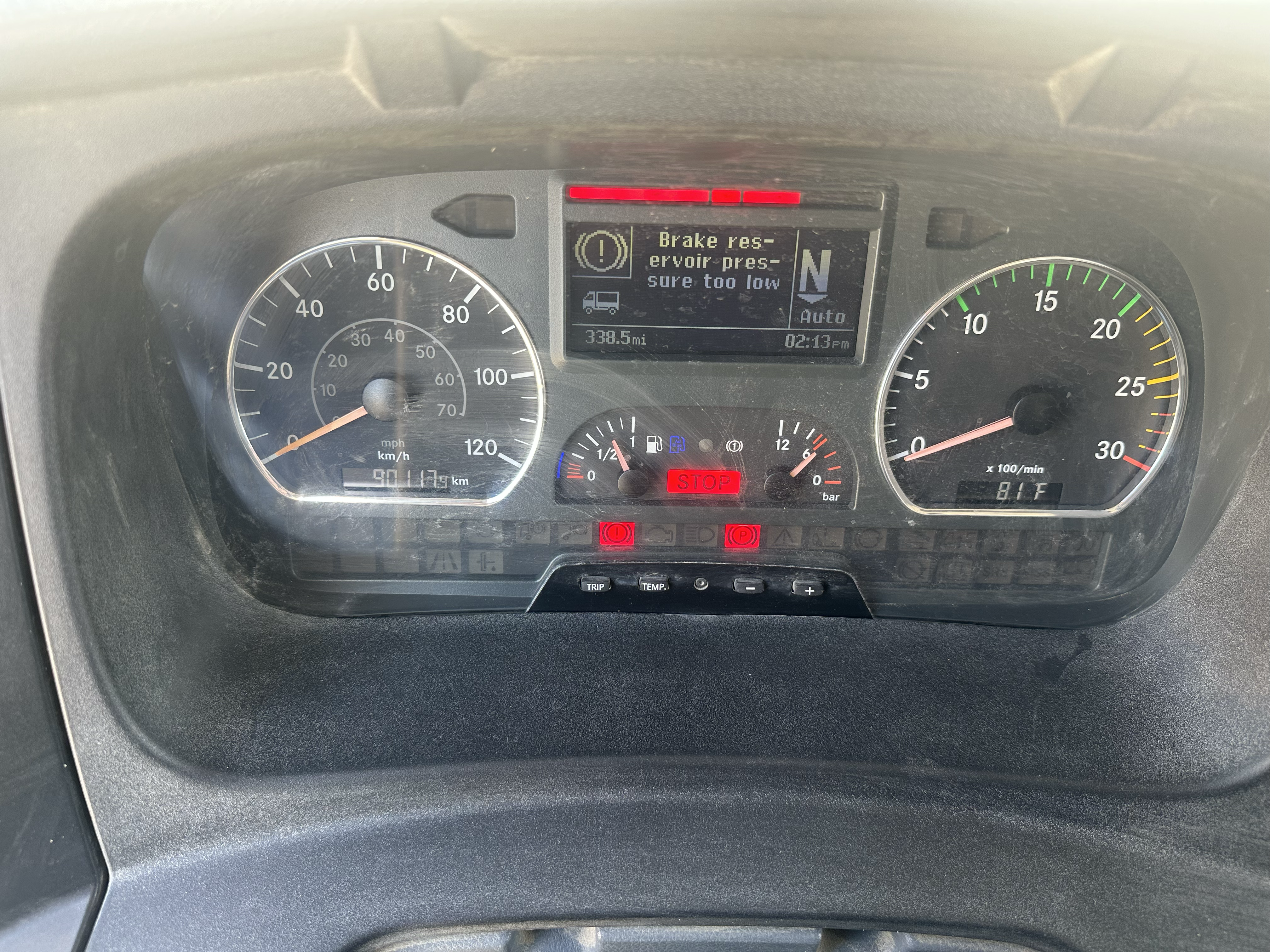

Mileage: 87,154 Kilometers as of 2.2026
Carrier Notes:

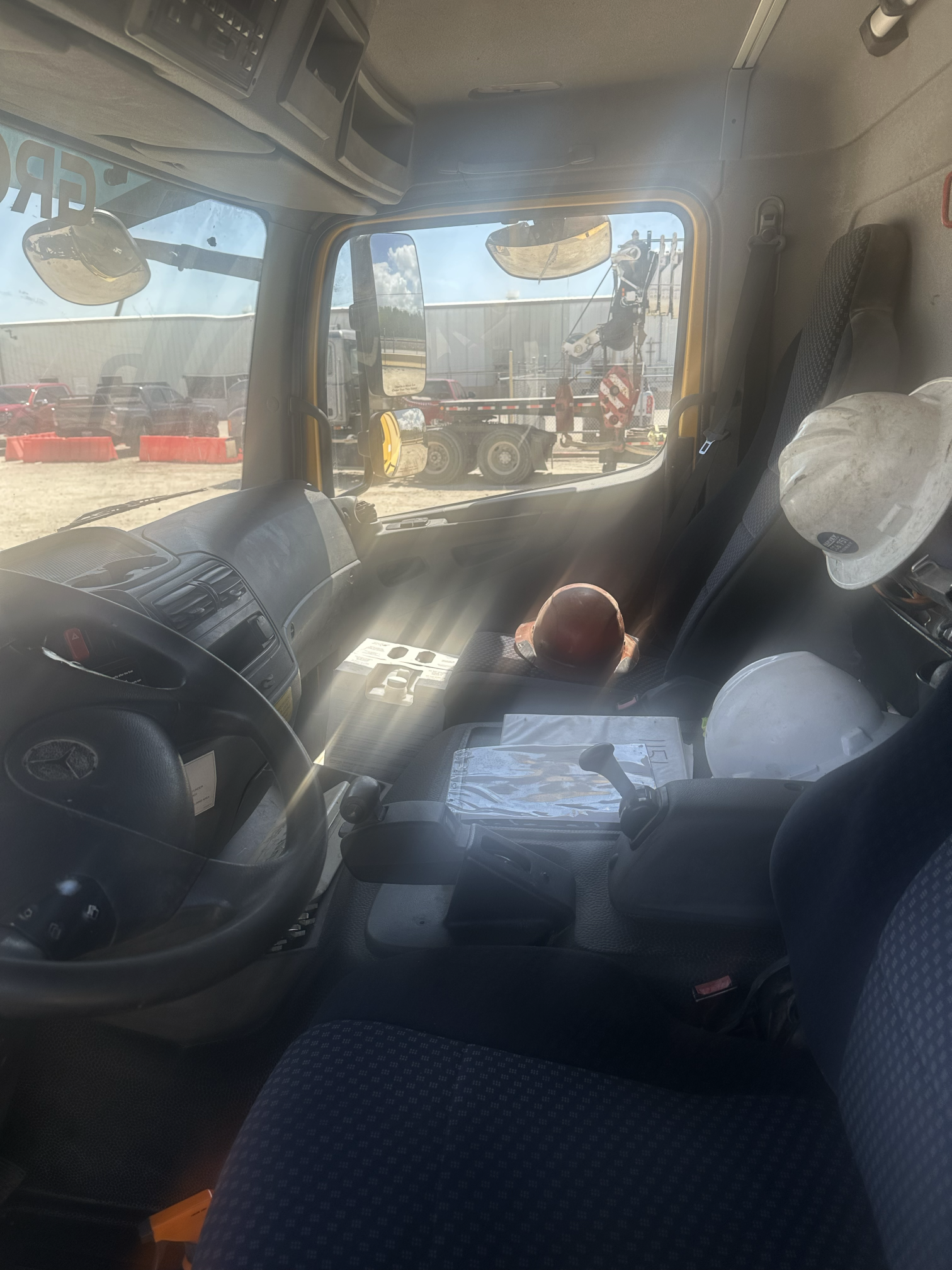

  • 9' wide Grove Two-man Carrier Cab, aluminum construction includes the following features: safety glass; driver seat with pneumatic suspension, passenger seat, engine-dependent heater, complete instrumentation and driving controls 8 x 6 x 8 Drive/Steer Carrier,
  • Mercedes in line 6 Diesel Engine,
  • Daimler Chrysler G 240-16 with EPS (Electronic Pneumatic Shifting), 16 forward and 2 reverse speeds. Two speed transfer case with inter-axle differential lock Transmission,
  • Front and Rear Tires: 16.00 R25,
  • Grove exclusive MEGATRAK™ suspension.

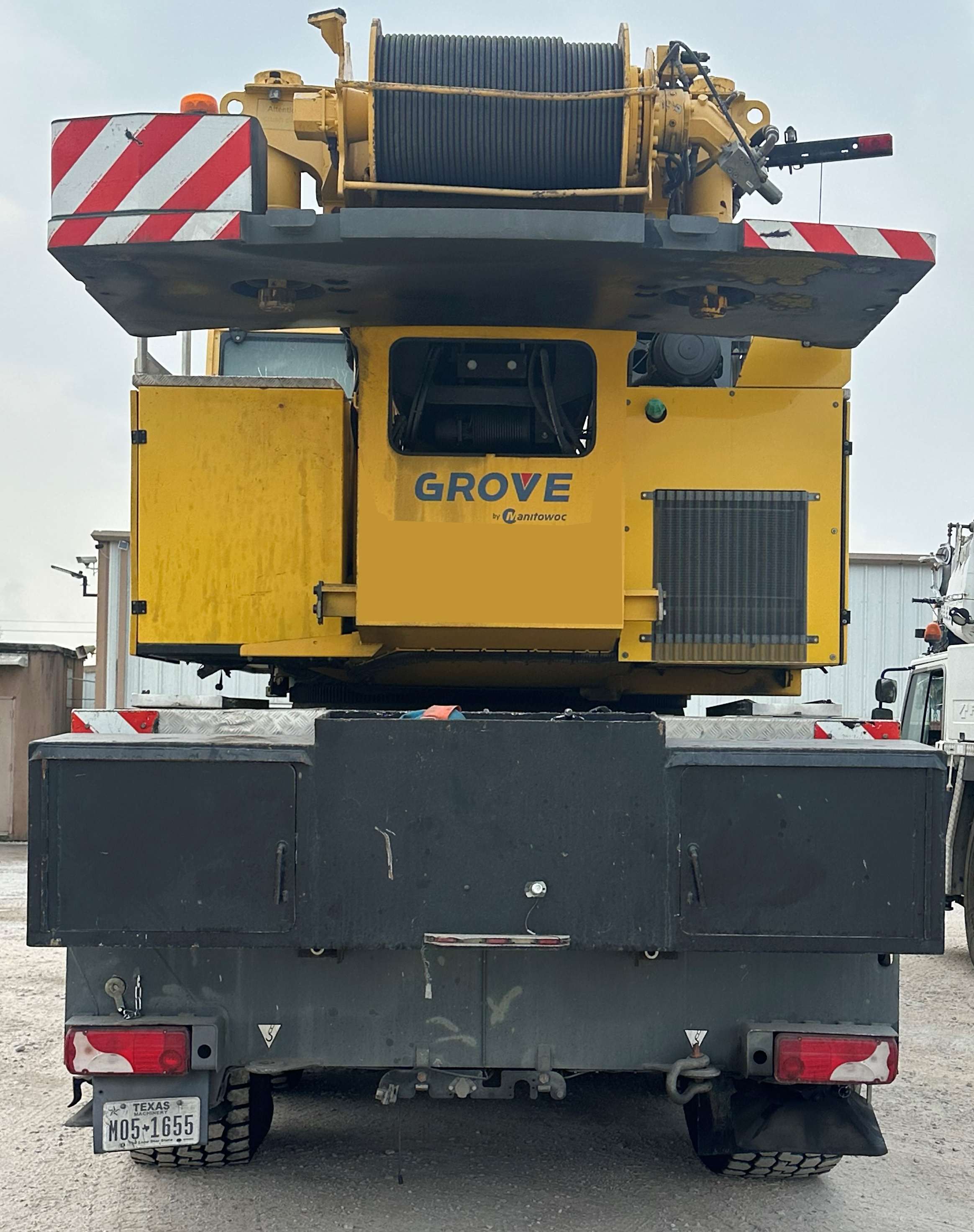

Lifting System

Lifting System Images
Hours: 12,249 Up and 5,661 Down as of 2.2026
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches,
  • Drum Rotation Indicator, 2 Speed, Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two block condition,
  • Full electronic control of crane functions using control levers with automatic reset to zero. Integrated with the LMI and engine management systems by CAN-BUS. ECOS system with graphic display,

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • 9 Ton Headache Ball,
  • 80 Ton Hook Block.
