CranesList Comprehensive Crane Listing

Knuckleboom

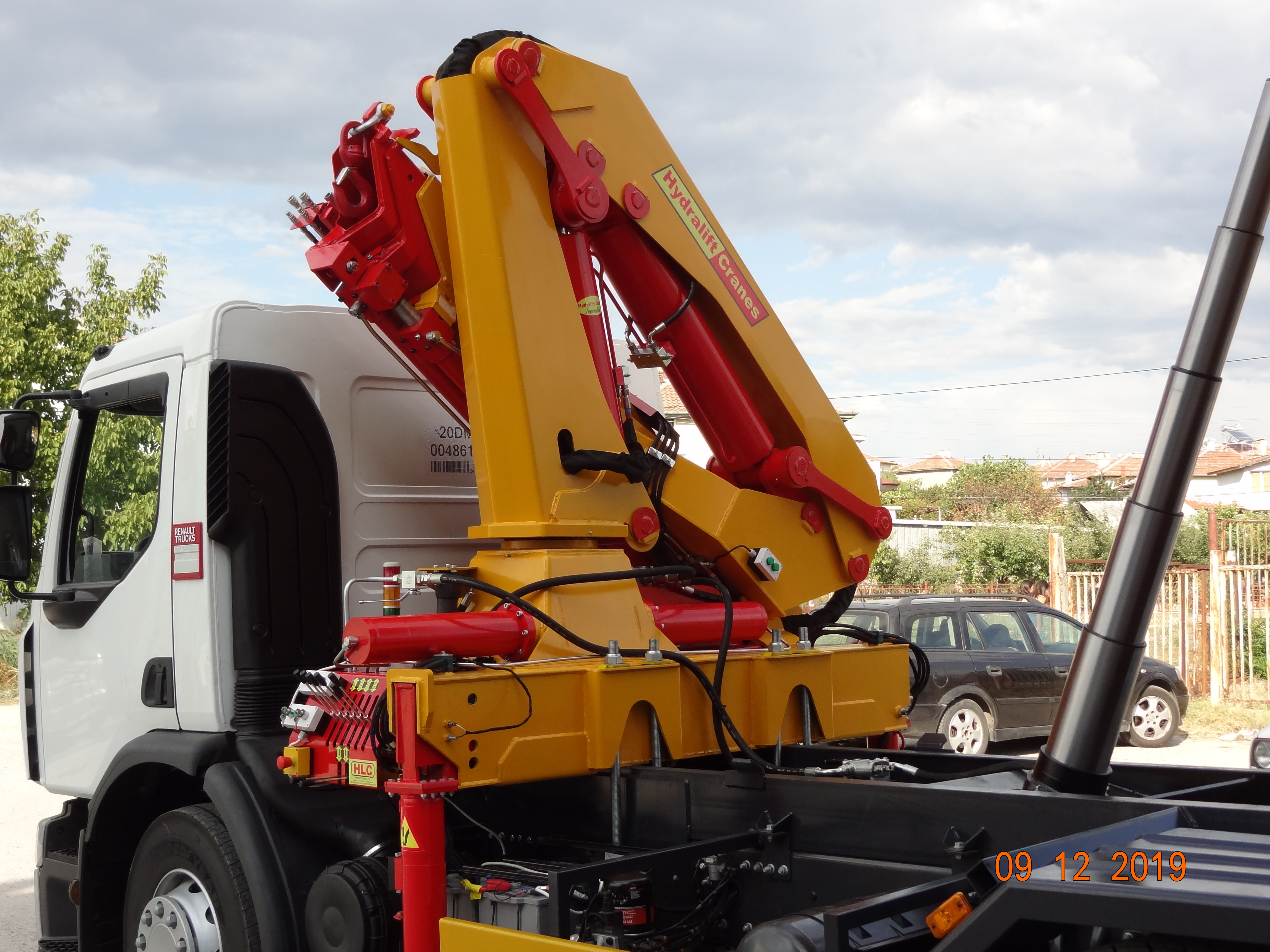

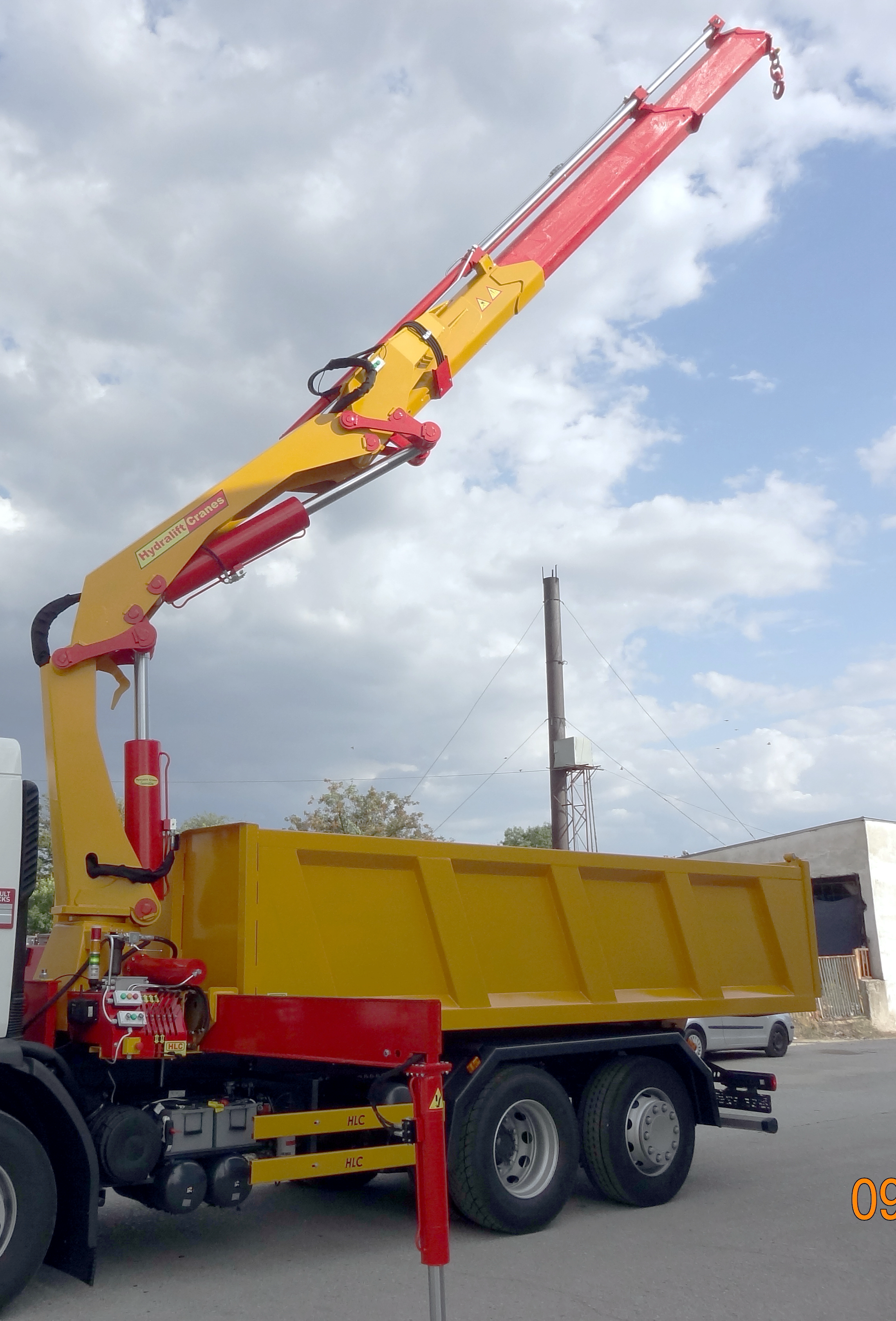

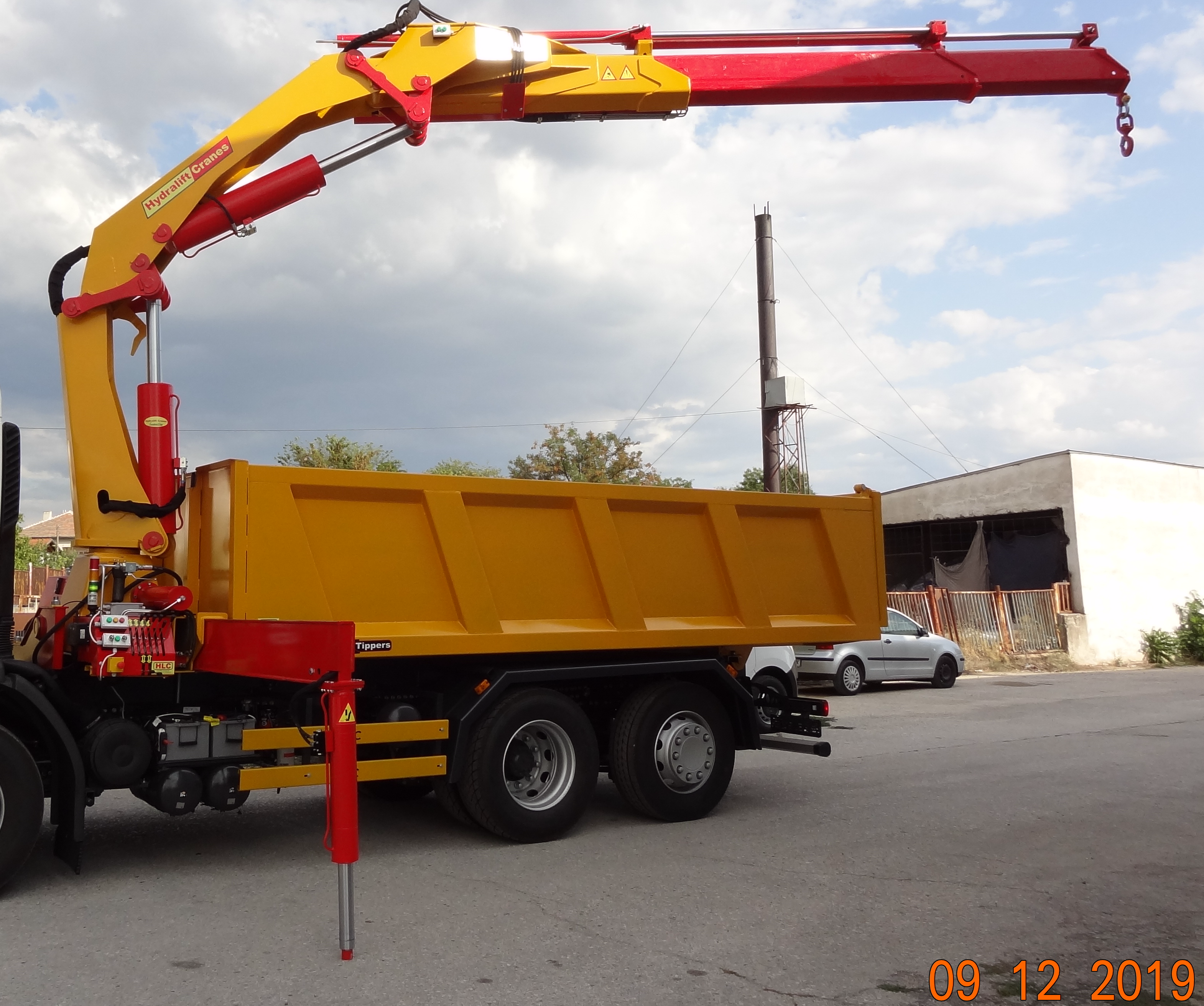

2026 HydraLift HLC25000

Brand New Crane!
$63,350

CranesList ID: 1042

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2026
Make: HydraLift
Model: HLC25000
Crane Type: Knuckleboom
Serial:
Tons: 12
Weight: 6,800#
Location: Bulgaria
Price: $63,350
CranesList ID: 1042
Great Condition

Notes

  • 53' Maximum working horizontal extension,
  • 62' Maximum working height,
  • Hexagonal telescopic boom,
  • Independent hydraulic cylinders for the extension of the telescopic booms equipped with sequence valves,
  • No Jib,
  • 2.5 Ton Hydraulic winch capacity with one rope,
  • Visual and audio load indication (light bar indicating 80%, 90%, 100% and overload),
  • Electronic overload limiting device with stability control,
  • Slew angle : 380 degrees,
  • Slew mechanism : gear – rack,
  • Load holding valves in every function,
  • Full proportional wireless remote control,
  • Construction material 100% high strength steel Strenx 700 and 960 by SSAB.
  • Full hydraulic operated stabilizers in horizontal and vertical movement, Stabilizers spread 20 ft,
  • Maximum lifting moment : 190.000 ft lbs,
  • Maximum lifting weight : 23,500 lbs @ 9 ft
  • Crane dead weight 5800 lbs,
  • Oil tank capacity 21 US gallons,
  • Maximum working pressure : 285 bar,
  • Preferable oil flow: : 90 L/m (24 gal/min),
  • Delivery time 16 weeks (ex works)
  • Payment Terms: 40% in advance for the order confirmation and the rest before shipment.





Location

Bulgaria

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 53' Maximum working horizontal extension
Boom Length: 53'
Jib:
Jib: No Jib
Jib Length:
Boom/Jib Notes:
  • 53' Maximum working horizontal extension,
  • 62' Maximum working height,
  • Hexagonal telescopic boom,
  • Independent hydraulic cylinders for the extension of the telescopic booms equipped with sequence valves,
  • No Jib.

Carrier

Carrier images
Carrier:
Mileage:
Carrier Notes:

Lifting System

Lifting System Images
Hours:
Winches: Main Winch
Lifting System Notes:
  • 2.5 Ton Hydraulic winch capacity with one rope,
  • Visual and audio load indication (light bar indicating 80%, 90%, 100% and overload),
  • Electronic overload limiting device with stability control,
  • Slew angle : 380 degrees,
  • Slew mechanism : gear – rack,
  • Load holding valves in every function.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball:
Hook Block/Hook Ball Notes:

Downloadable Files Associated with this Crane

Documents

Documents
hlc-2500017-uszzz.pdf (73.18 KB) , hlc-25000.pdf (4.42 MB)

Click To Enlarge or Browse

All Images

Click To Enlarge or Browse

, ,
