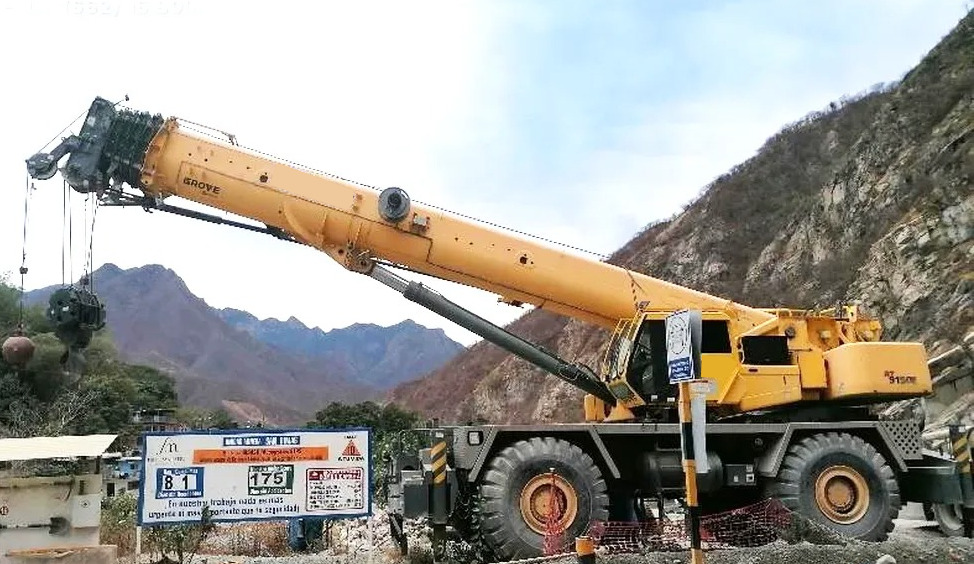

2011 Grove RT9150E

Fully imported into Mexico!
$529,900

CranesList ID: 858

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2011
Make: Grove
Model: RT9150E
Crane Type: Rough Terrain
Serial: 231614
Tons: 150
Weight: 87,751#
Location: Mexico
Price: $529,900
CranesList ID: 858
Good Condition

Notes

  • 42.3' - 197' Six Section, MEGAFORM style full power boom with TWIN-LOCK boom pinning system with Removable auxiliary quick reeve boom nose,
  • 36' - 59' hydraulically offsettable bifold lattice swingaway extension (Jib). Offsets from 0° to 40°. Stows alongside base boom section,
  • Main and Auxiliary winches with 3/4” wire rope,
  • Drum Rotation Indicator, Two-Speed, Load moment and anti-two block system - Standard “Graphic Display” with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.
  • Hook Ball and Hook Block,
  • Swing - Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab,
  • Grove 4 x 4 drive Carrier,
  • Cummins QSB 8.3L Six cylinders 224 kW (300 hp) Tier III Diesel Engine,
  • Full powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel.,
  • Front and Rear Tires: 33.25 x 29 - 38 bias ply,
  • Air Conditioning,
  • 39,000# counterweights. Hydraulically installed and removed,
  • Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation,
  • Outrigger Controls and crane level indicator located in cab,
  • Fully imported into Mexico.

Location

Mexico

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 42.3' - 197' Six Section, MEGAFORM style full power boom
Boom Length: 197'
Jib:
Jib: 36' - 59' hydraulically offsettable bifold lattice swingaway extension (Jib
Jib Length: 59'
Boom/Jib Notes:
  • 42.3' - 197' Six Section, MEGAFORM style full power boom with TWIN-LOCK boom pinning system with Removable auxiliary quick reeve boom nose,
  • 36' - 59' hydraulically offsettable bifold lattice swingaway extension (Jib). Offsets from 0° to 40°. Stows alongside base boom section.

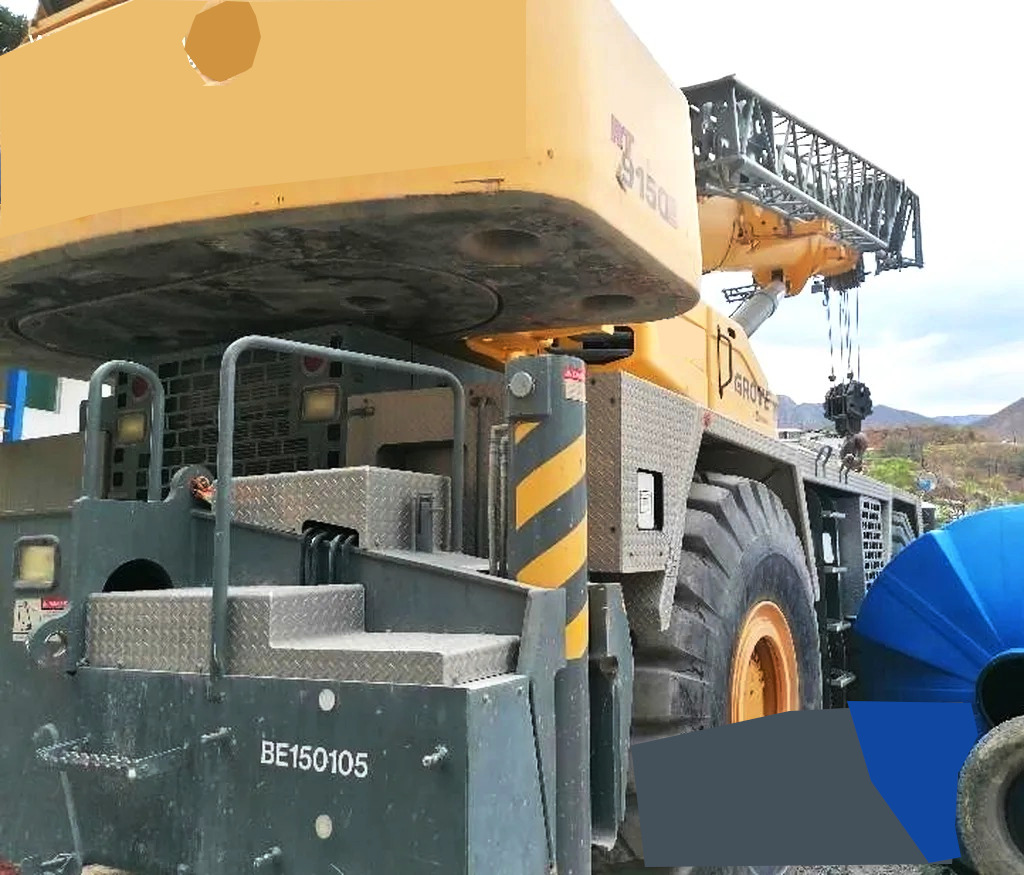

Carrier

Carrier images
Carrier: Grove 4 x 4 drive Carrier
Mileage:
Carrier Notes:
  • Grove 4 x 4 drive Carrier,
  • Cummins QSB 8.3L Six cylinders 224 kW (300 hp) Tier III Diesel Engine,
  • Full powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel.,
  • Front and Rear Tires: 33.25 x 29 - 38 bias ply,
  • Air Conditioning.

Lifting System

Lifting System Images
Hours: 11,515 as of 1.2024
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary winches with 3/4” wire rope,
  • Drum Rotation Indicator, Two-Speed, Load moment and anti-two block system - Standard “Graphic Display” with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.

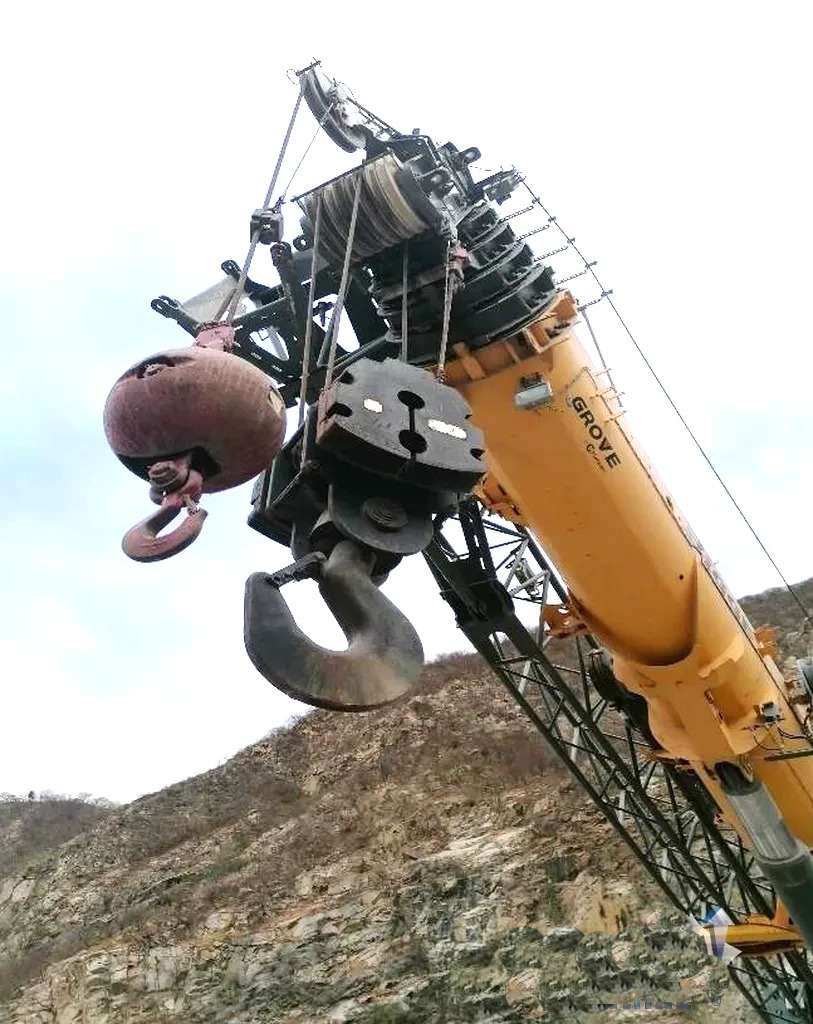

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • Hook Ball and Hook Block.

Downloadable Files Associated with this Crane

Documents

Click To Enlarge or Browse

All Images

Click To Enlarge or Browse

, , ,
