Lattice Boom Crawler

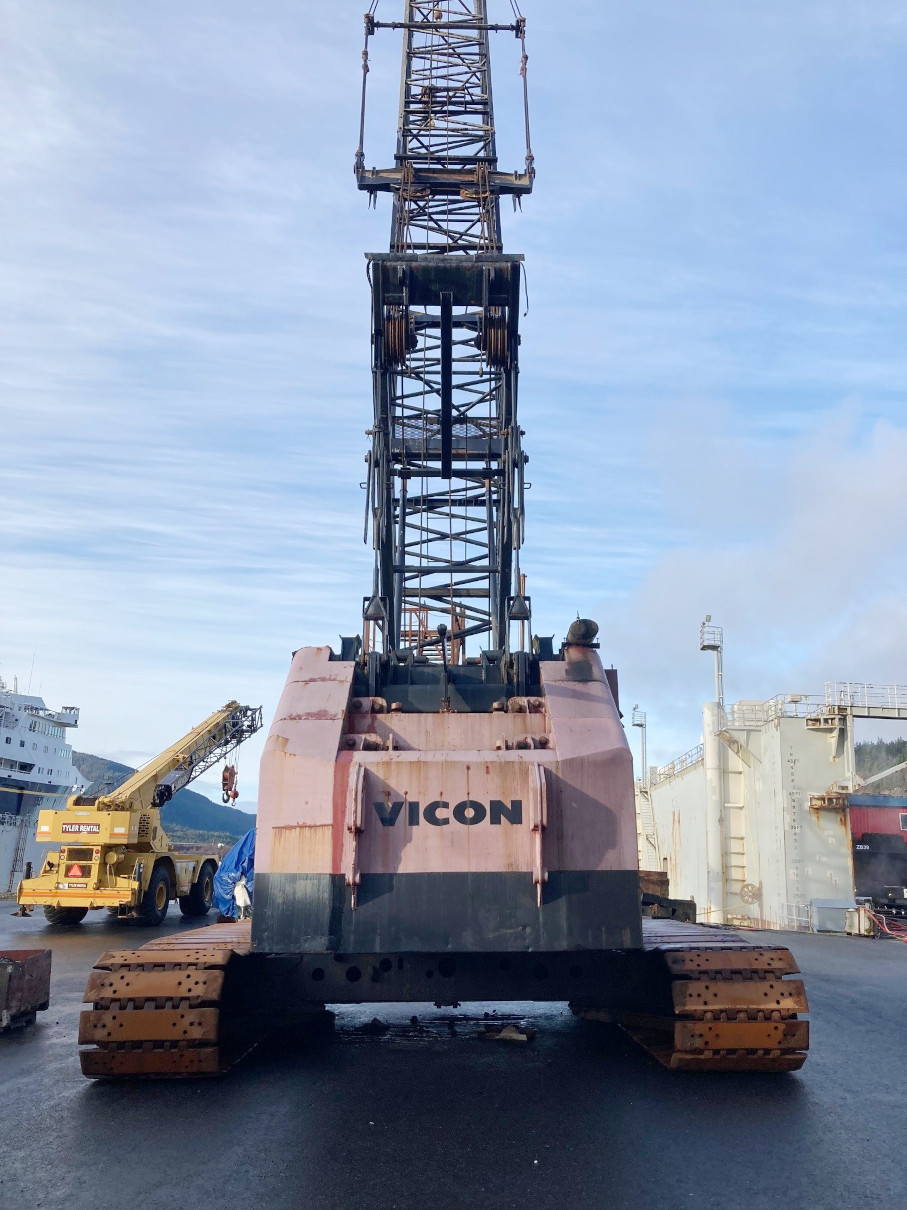

1973 Manitowoc 4000W - Seller will deliver to Seattle or Portland Included in the Price!

2023 CAT DSL w/New Starter & Turbo
$152,500

CranesList ID: 857

All Information Provided By The Seller

Crane Specifications

Overview


Year: 1973

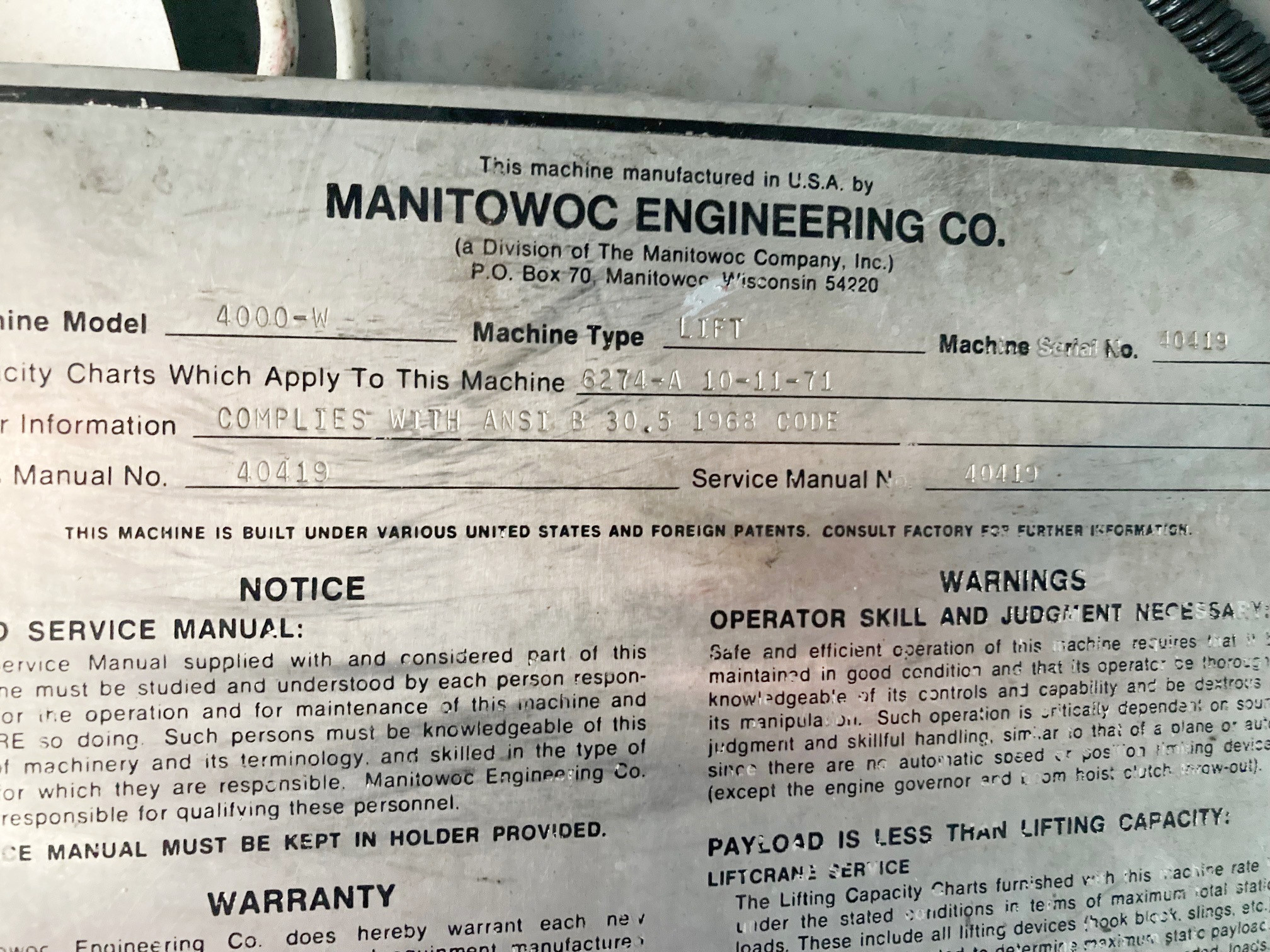

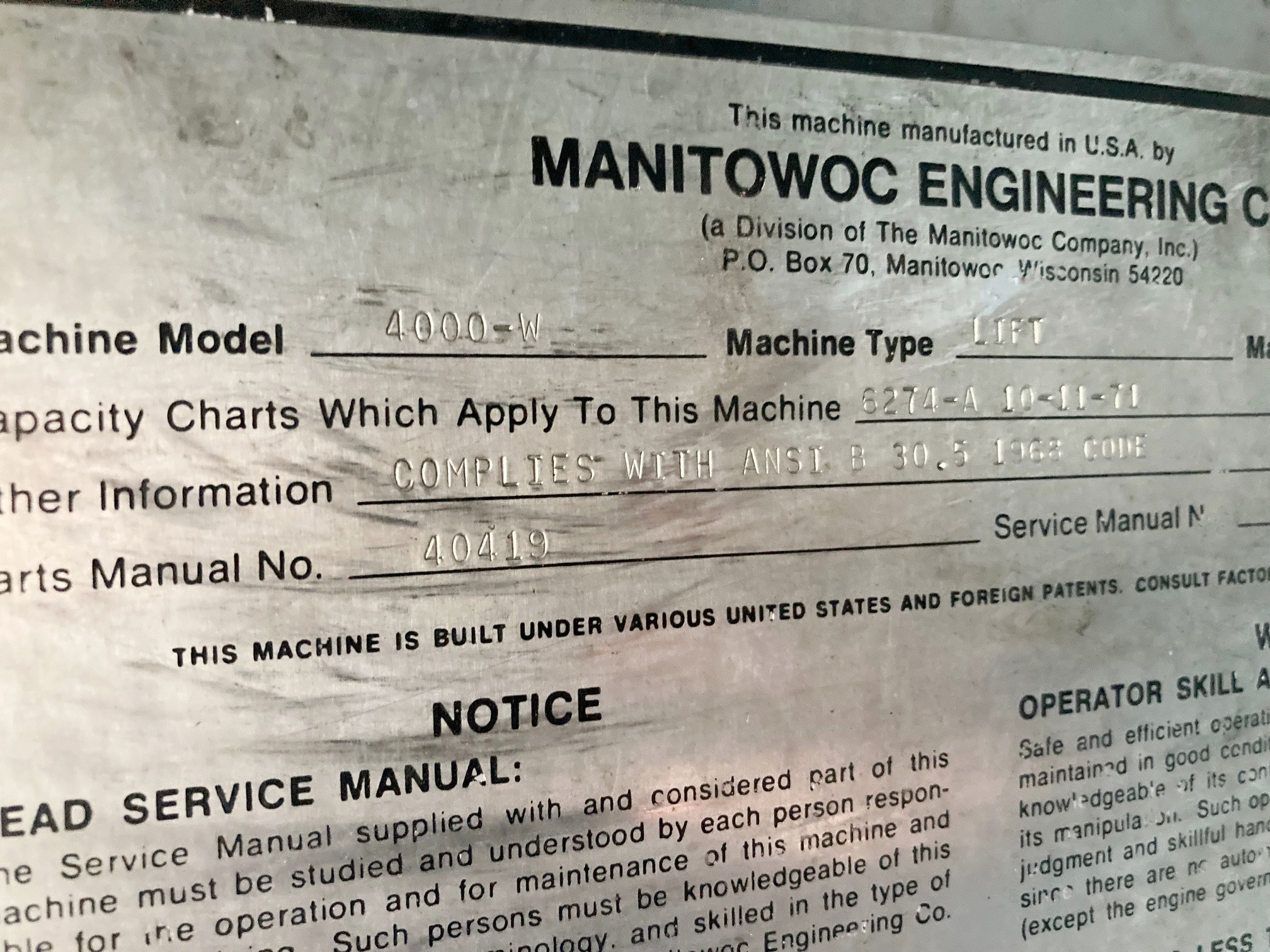

Make: Manitowoc
Model: 4000W - Seller will deliver to Seattle or Portland Included in the Price!
Crane Type: Lattice Boom Crawler
Serial: 40419
Tons: 150
Weight: 315,160#
Location: Alaska
Price: $152,500
CranesList ID: 857
Good Condition

Notes

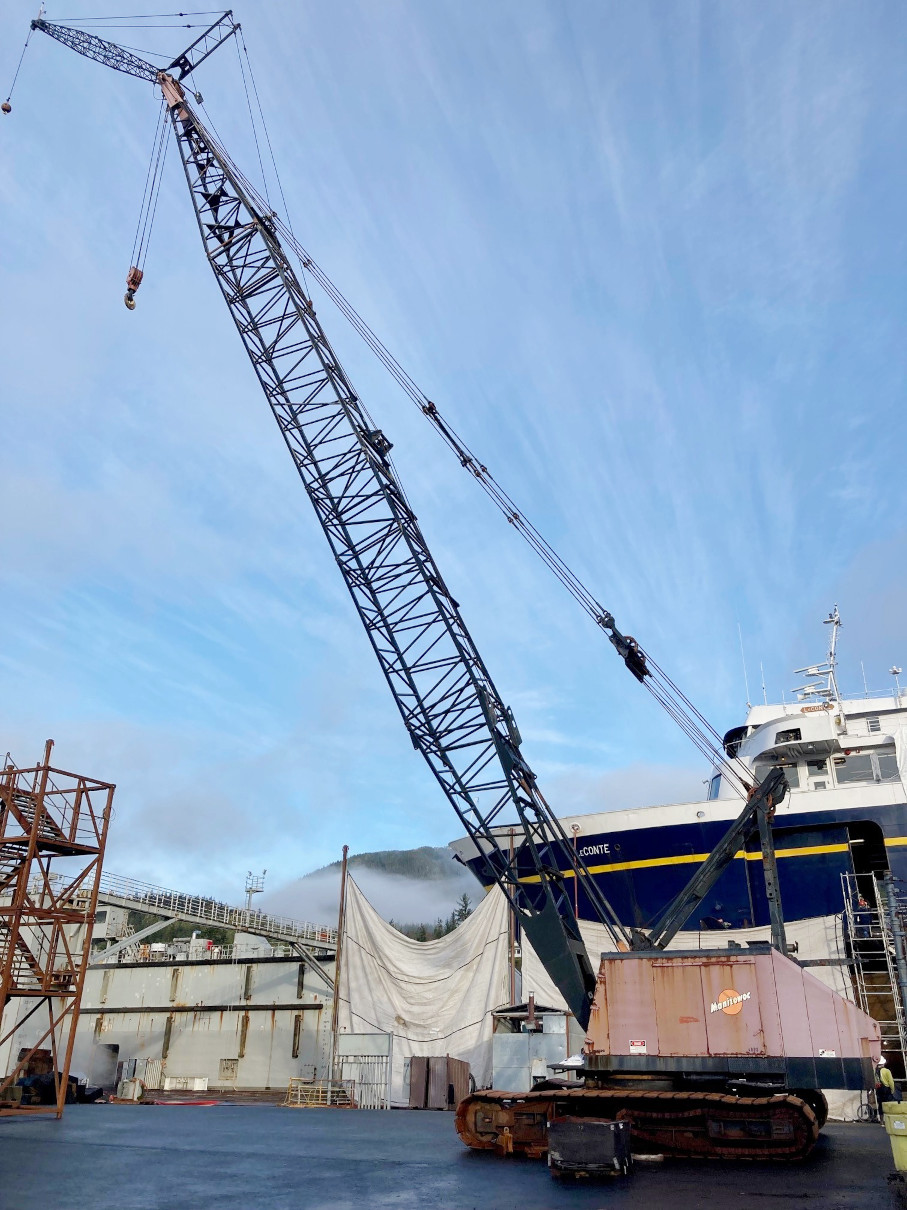

  • 180' Total Main Boom consisting of 70’ X 95” X 95”of basic No. 22A Angular Lattice Boom (30’ Base and 40’ Open-Throat Tip Section) + 110’X 95” X 95” of 22A boom inserts, Some lattices require repair but not enough to keep any of the boom from being utilized on the crane.
  • 40’ of No. 123 Fixed Lattice Jib (15-ton maximum capacity),
  • Gantry Lifting Device,
  • Main and Auxiliary Winches with 1 1/8" wire rope,
  • Vicon Power lowering, Boom Angle Indicator, Anti Two Block,
  • Independent Dual Drum Boom Hoist, Swing and Travel,
  • Hook Ball,
  • Hook Block,
  • 104,400# Three Section Self-Removing Counterweights,

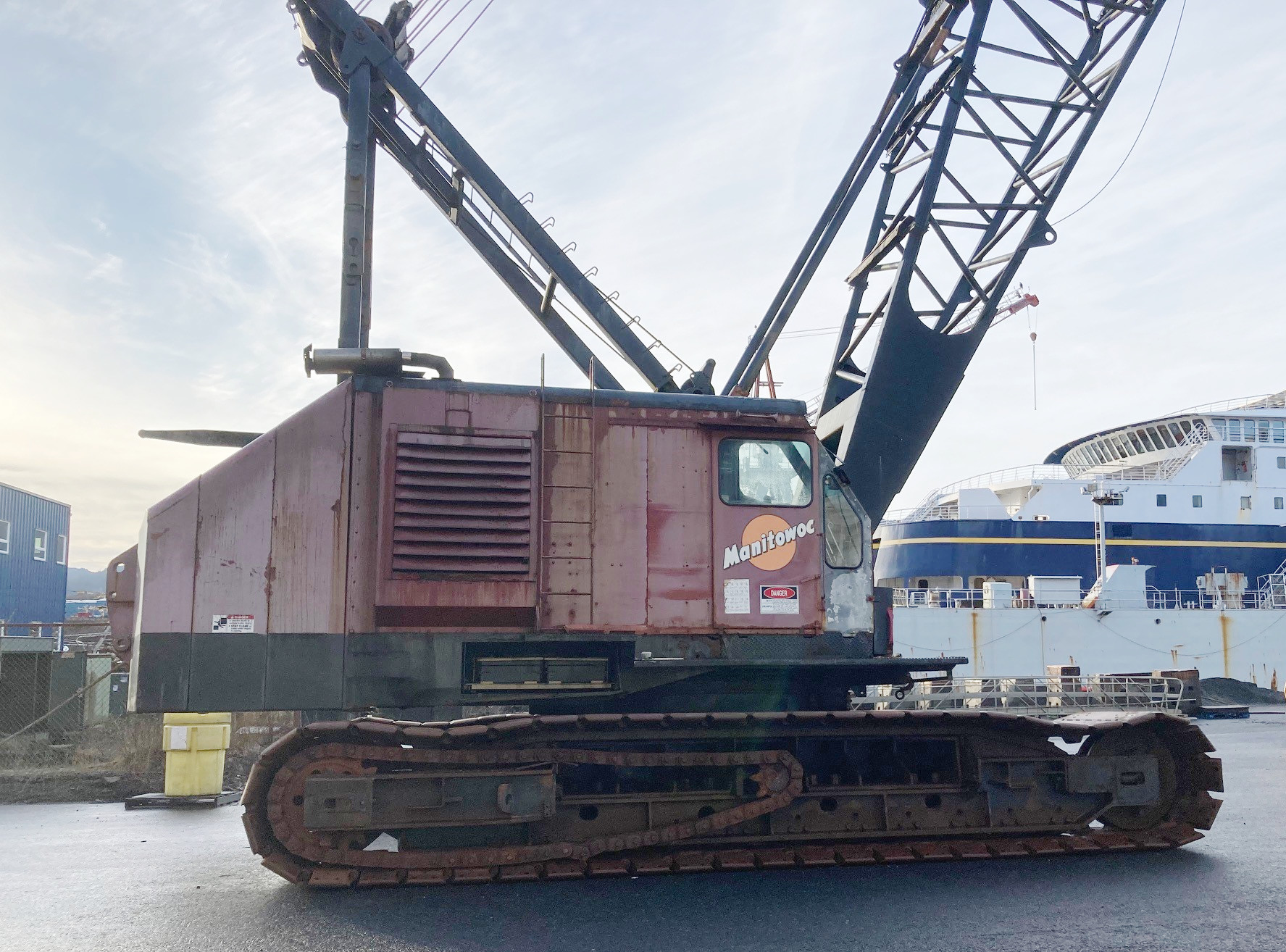

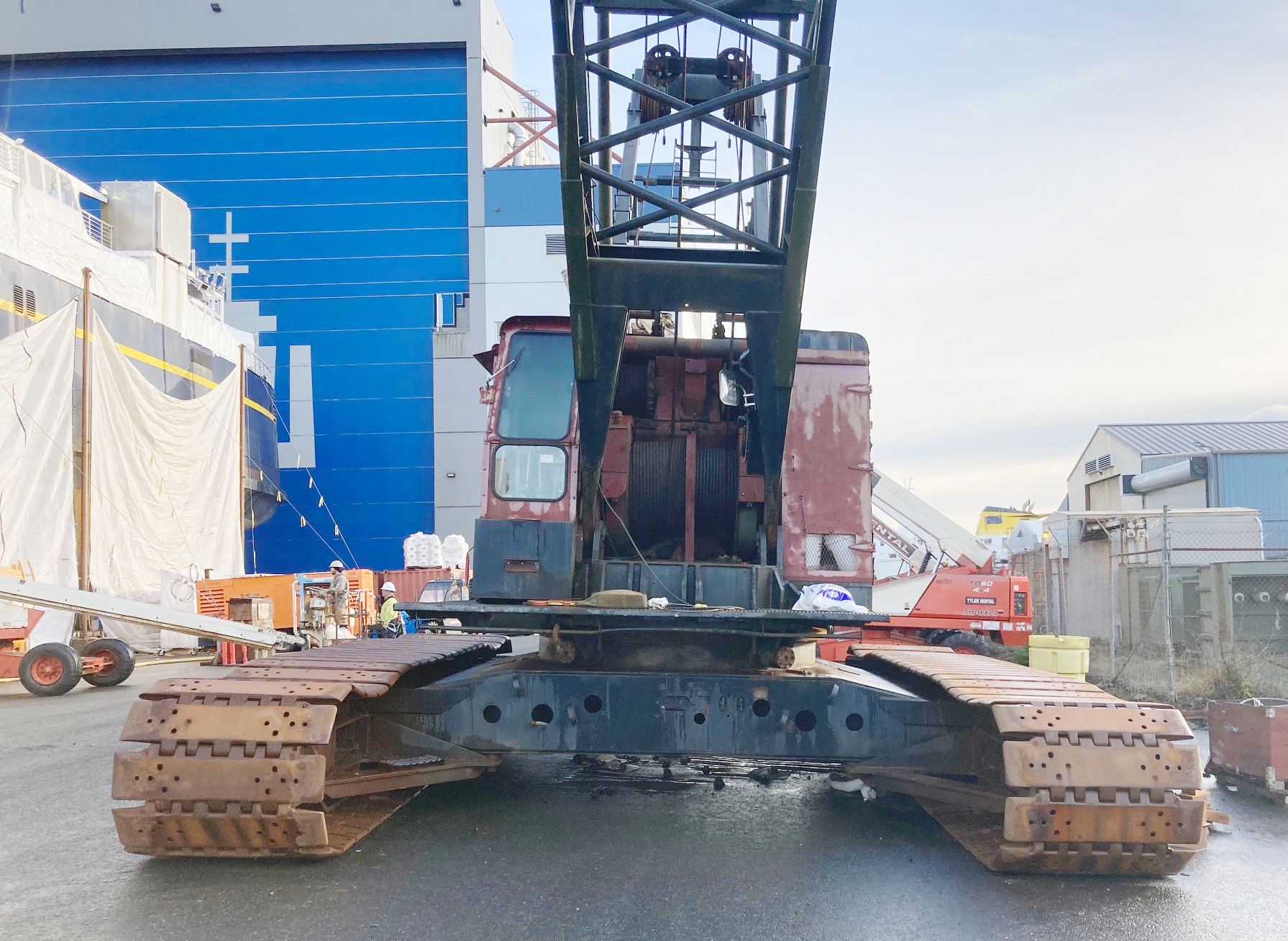

  • 18' 7" wide carbody with crawlers retracted,

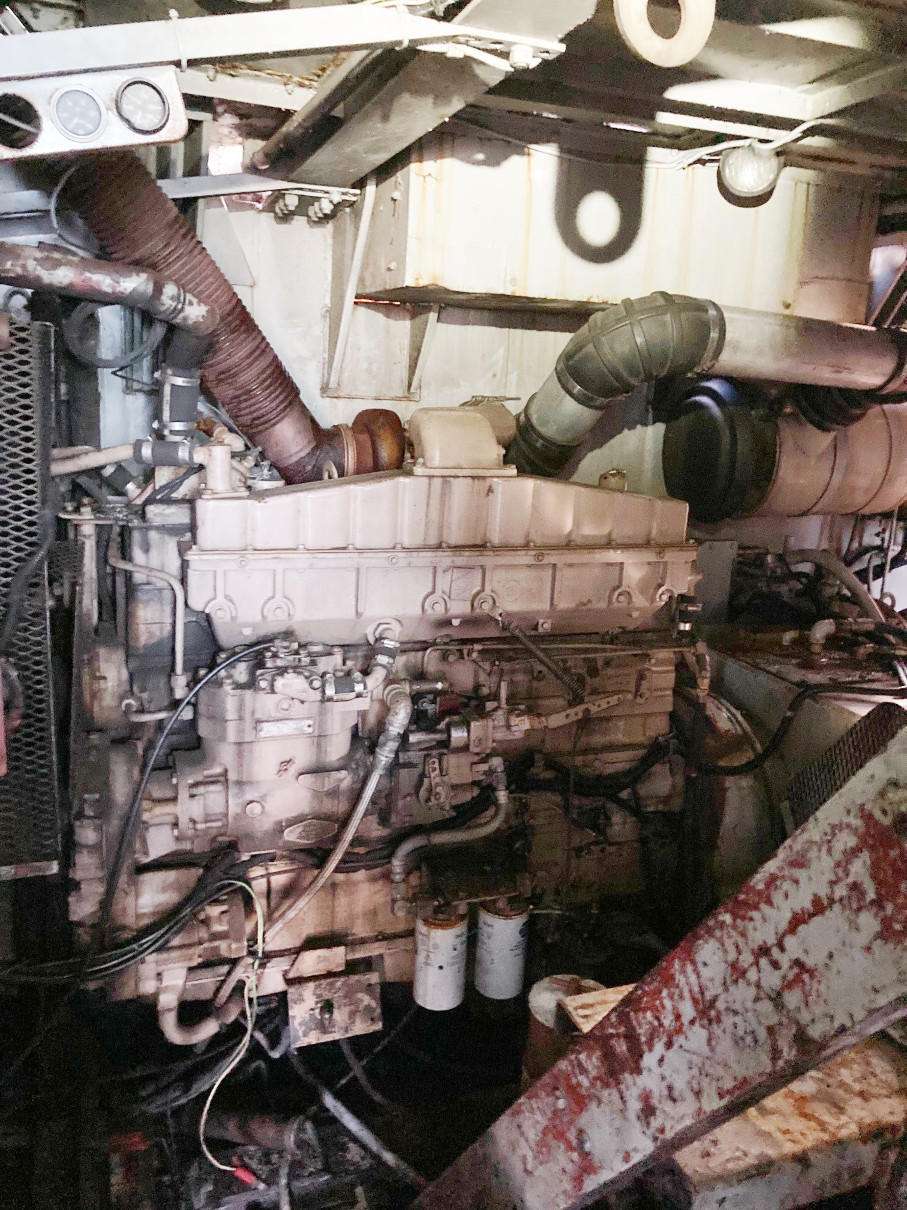

  • Caterpillar 3406D1 Diesel Engine, Serial # 90U1785,
  • CAT Diesel had new starter and Turbo installed in 2023,

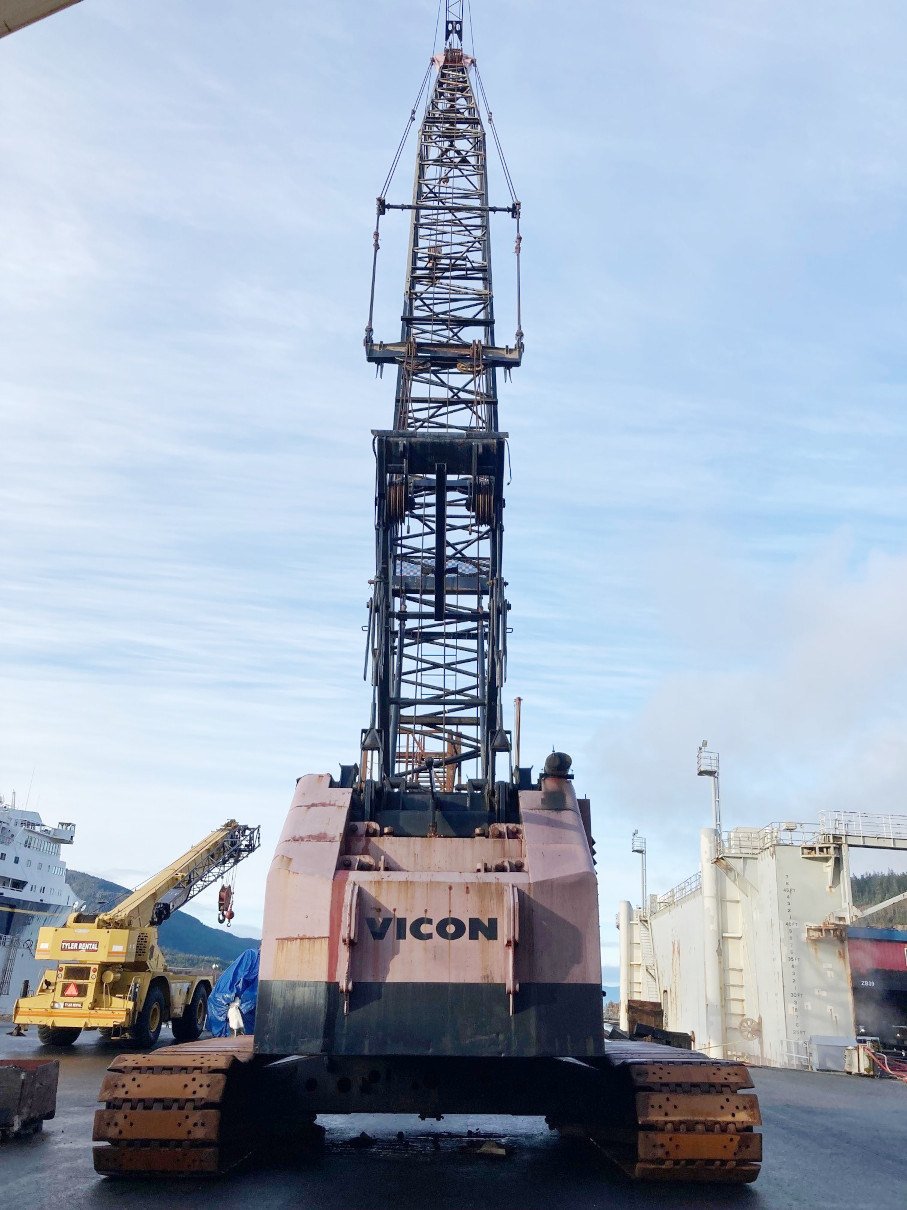

  • VICON” (Variable Independent Control) power transmission provides independent power through two torque converters.  Front converter powers hoisting drums while the rear converter powers the swing and travel machinery,
  • Heater,
  • 48" wide crawler treads,
  • 52 pads per crawler,
  • Runs like new,
  • Seller will deliver to Seattle or Portland Included in the Price!
  • Crane is Certified!

Location

Alaska

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 180' Total Main Boom
Boom Length: 180'
Jib:
Jib: 40’ of No. 123 Fixed Lattice Jib
Jib Length: 40'
Boom/Jib Notes:
  • 180' Total Main Boom consisting of 70’ X 95” X 95”of basic No. 22A Angular Lattice Boom (30’ Base and 40’ Open-Throat Tip Section) + 110’X 95” X 95” of 22A boom inserts,
  • 40’ of No. 123 Fixed Lattice Jib (15-ton maximum capacity),
  • Gantry Lifting Device.

Carrier

Carrier images
Carrier: 18' 7" wide carbody with crawlers retracted
Mileage:
Carrier Notes:
  • 18' 7" wide carbody with crawlers retracted,

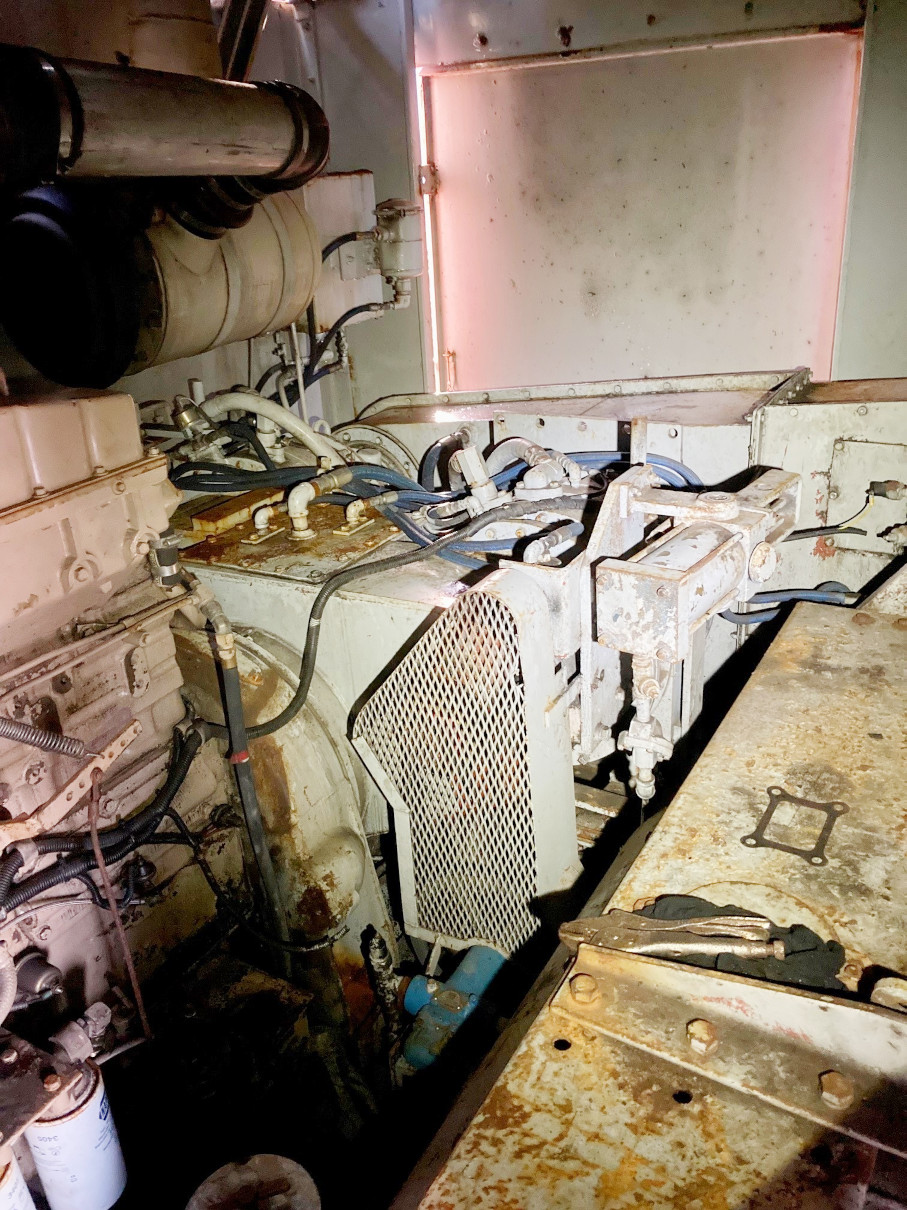

  • Caterpillar 3406D1 Diesel Engine, Serial # 90U1785,
  • CAT Diesel had new starter and Turbo installed in 2023,
  • VICON” (Variable Independent Control) power transmission provides independent power through two torque converters.  Front converter powers hoisting drums while the rear converter powers the swing and travel machinery,
  • Heater,

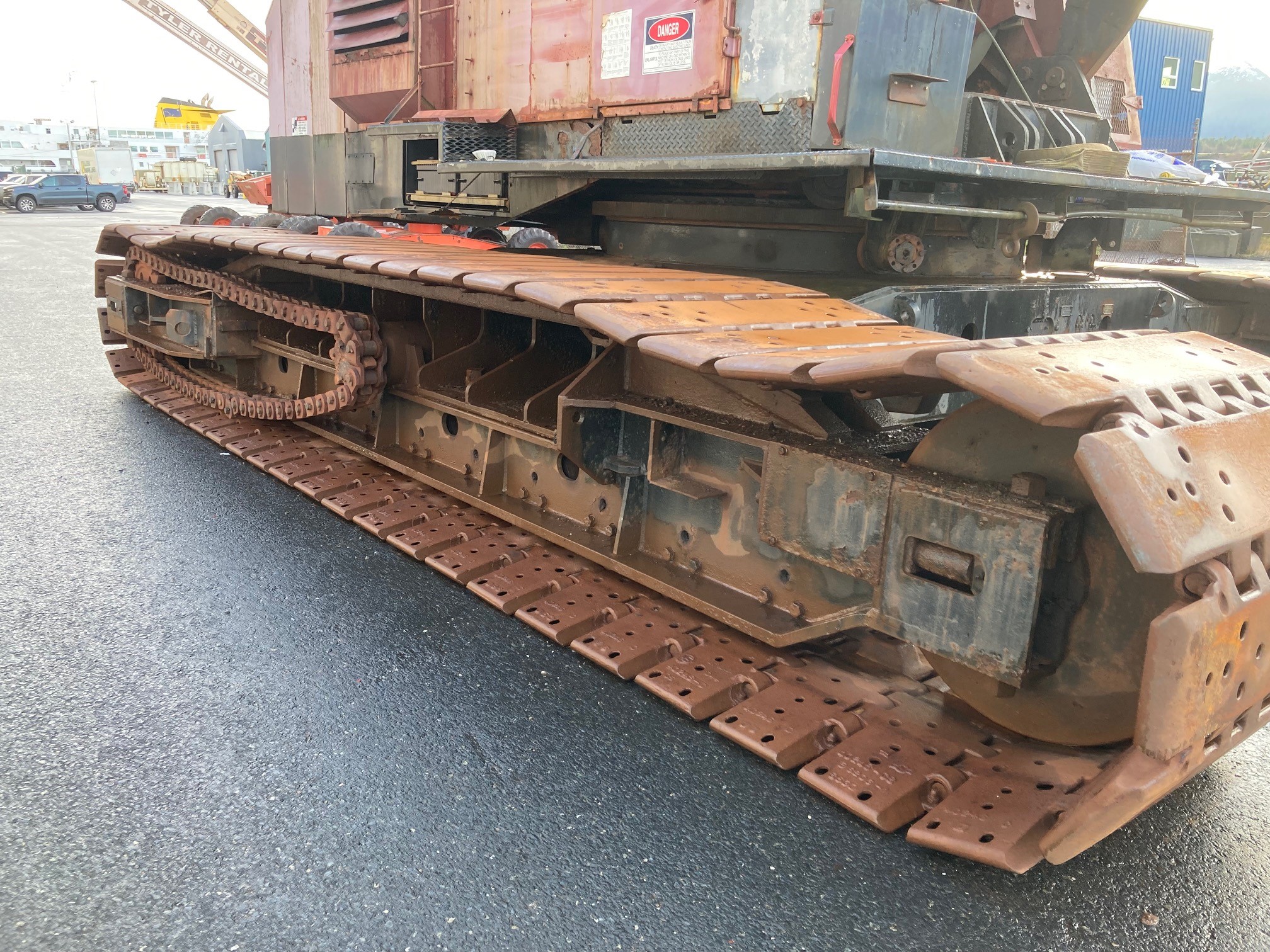

  • 48" wide crawler treads,
  • 52 pads per crawler,
  • Runs like new!

Lifting System

Lifting System Images
Hours:
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 1 1/8" wire rope,

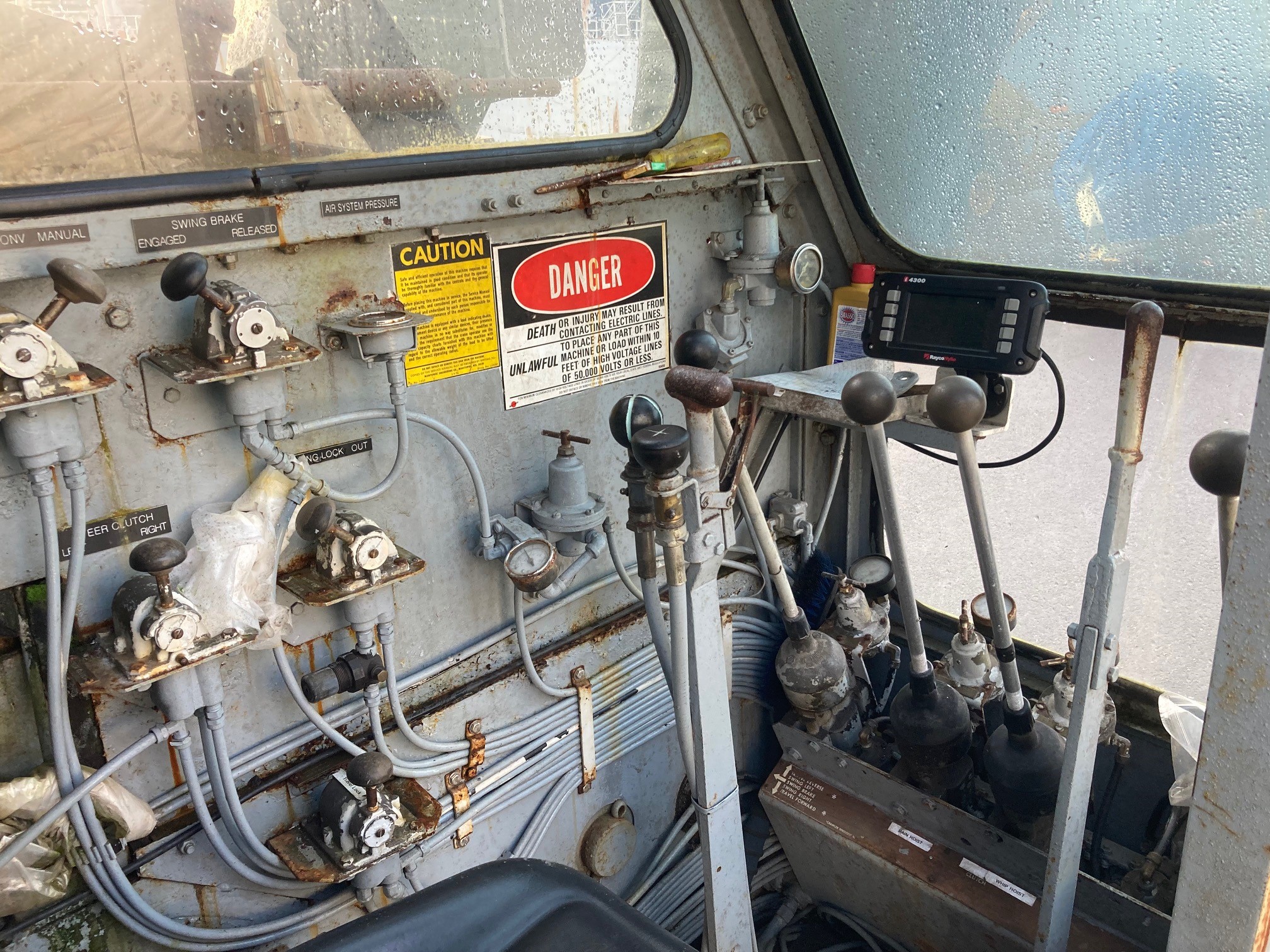

  • Vicon Power lowering, Boom Angle Indicator, Anti Two Block,
  • Independent Dual Drum Boom Hoist, Swing and Travel.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • Hook Ball,
  • Hook Block.

Downloadable Files Associated with this Crane

Documents

Click To Enlarge or Browse

All Images

Click To Enlarge or Browse

, , , , , , , , , ,
