Lattice Boom Crawler

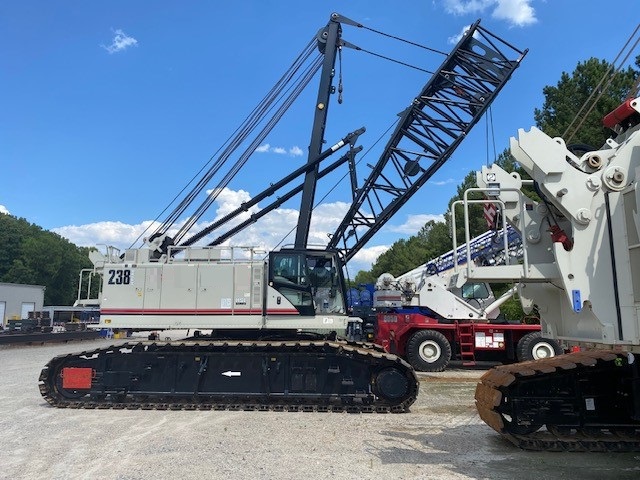

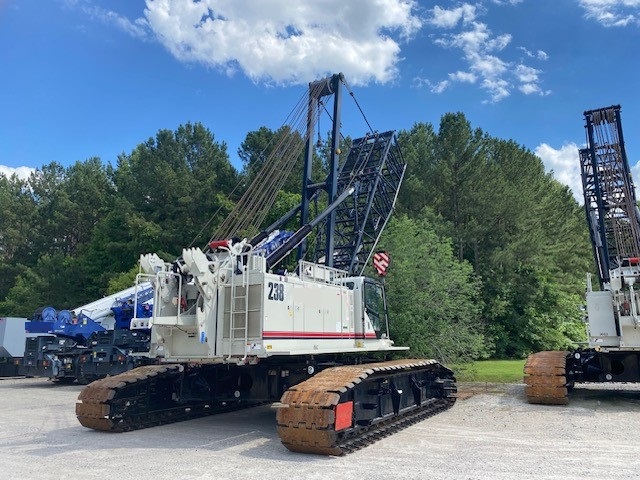

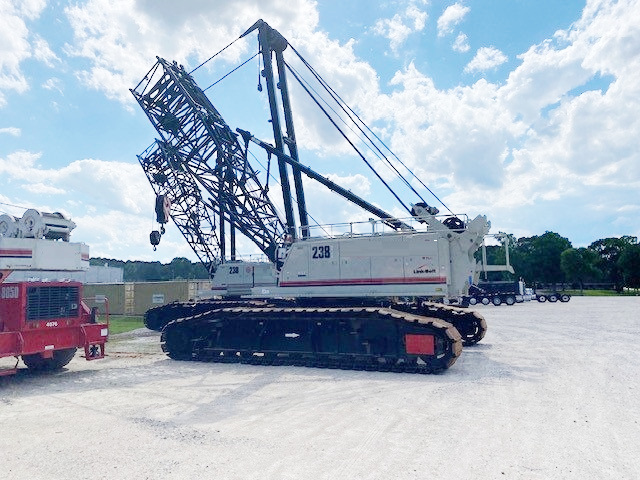

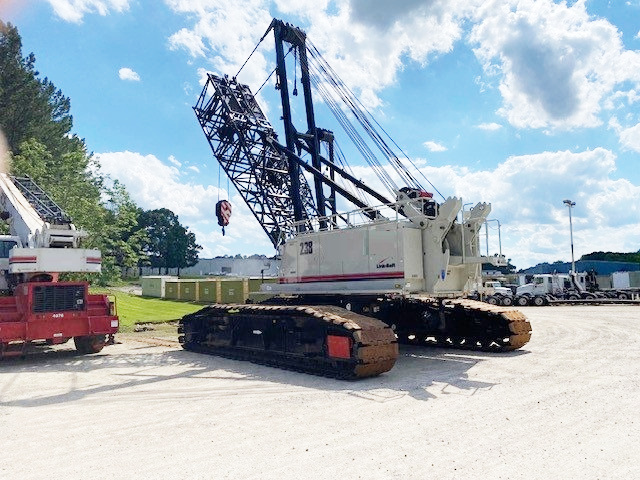

2022 Link-Belt LS238HSL

Almost New Crane
$1,299,900

CranesList ID: 907

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2022
Make: Link-Belt
Model: LS238HSL
Crane Type: Lattice Boom Crawler
Serial:
Tons: 150
Weight: 166,000#
Location: North Carolina
Price: $1,299,900
CranesList ID: 907
Great Condition

Certified

Notes

  • 190' Main Tubular Boom with 5' Tip luffing Boom Top Extension,
  • No Jib,
  • Main and Auxiliary Winches with 7/8" wire rope,
  • Drum Rotation Indicator, Power Load Lowering and Freefall, Load Indicator with Anti-Two Block,

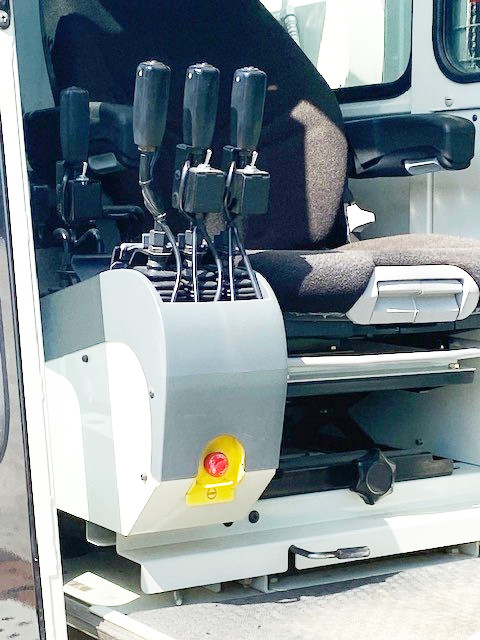

  • Fine Inching Control - For super precise control of load lowering/hoisting, boomhoist or travel, hydraulic pump flow can be minimized by activating the pump control switch. This allows the operator to place loads with either the main or auxiliary drums with extreme accuracy,
  • 15 ton Hook Ball,
  • 30 Ton One Sheave Hook Block,
  • 90 Ton Three Sheave Hook Block,
  • Standard Catwalks on right and left sides
  • Independent hydraulic travel/steering,
  • Swing Brake,
  • "ABC" upper. - 69,000#  Counterweights,
  • 19' 02" wide Link-Belt Car Body,
  • Cummins QSB 6.7, 270 HP, Diesel Engine,
  • Hydraulic Extendable Side Frames,
  • 44" Wide Track Shoes - 42 shoes per side frame,
  • Equipped With All Standard Equipment,
  • Certified.

Location

North Carolina

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 190' Main Tubular Boom
Boom Length: 190'
Jib:
Jib: No Jib
Jib Length:
Boom/Jib Notes:
  • 190' Main Tubular Boom with 5' Tip luffing Boom Top Extension,
  • No Jib.

Carrier

Carrier images
Carrier: 19' 02" wide Link-Belt Car Body
Mileage:
Carrier Notes:
  • 19' 02" wide Link-Belt Car Body,
  • Cummins QSB 6.7, 270 HP, Diesel Engine,
  • Hydraulic Extendable Side Frames,
  • 44" Wide Track Shoes - 42 shoes per side frame,
  • Equipped With All Standard Equipment.

Lifting System

Lifting System Images
Hours: 1,211 as of 6.2024
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 7/8" wire rope,
  • Drum Rotation Indicator, Power Load Lowering and Freefall, Load Indicator with Anti-Two Block,
  • Fine Inching Control - For super precise control of load lowering/hoisting, boomhoist or travel, hydraulic pump flow can be minimized by activating the pump control switch. This allows the operator to place loads with either the main or auxiliary drums with extreme accuracy,

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball, Additional Hook Blocks
Hook Block/Hook Ball Notes:
  • 15 ton Hook Ball,
  • 30 Ton One Sheave Hook Block,
  • 90 Ton Three Sheave Hook Block.

Downloadable Files Associated with this Crane

Documents

Click To Enlarge or Browse

All Images

Click To Enlarge or Browse

, , , , ,
