All Terrain

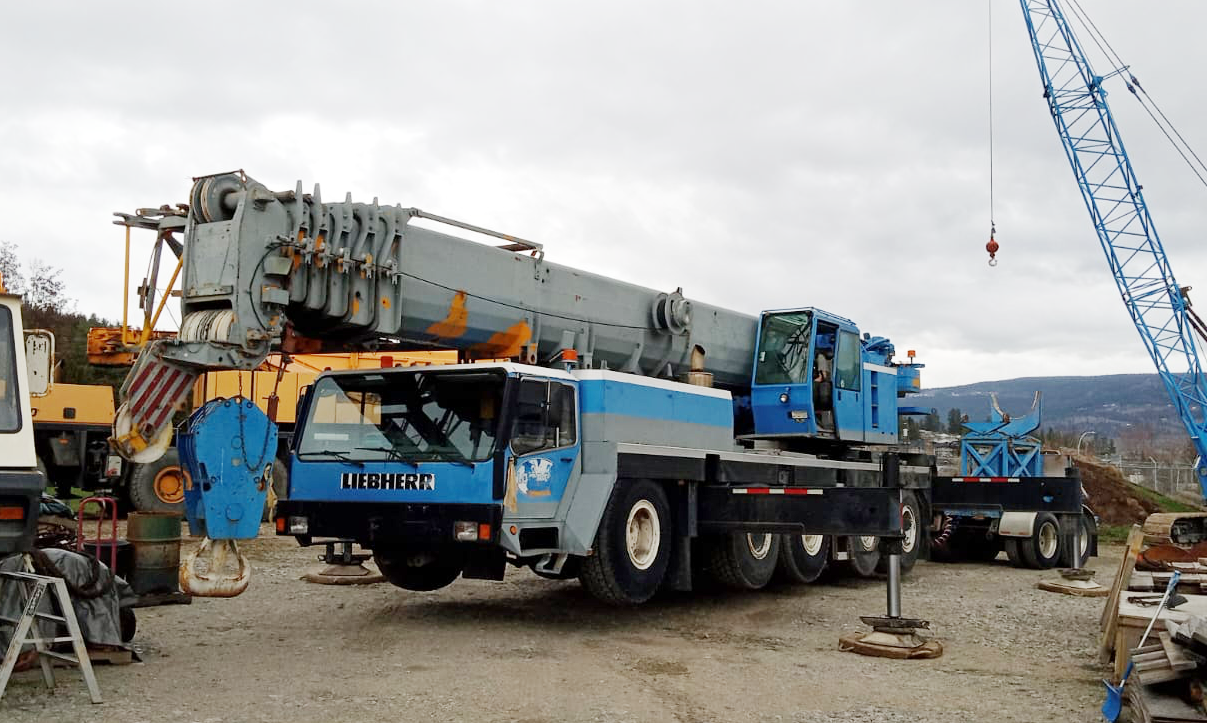

1998 Liebherr LTM1120-1

Low hours and Miles!
$164,900

CranesList ID: 972

All Information Provided By The Seller

Crane Specifications

Overview


Year: 1998
Make: Liebherr
Model: LTM1120-1
Crane Type: All Terrain
Serial:
Tons: 150
Weight: 132,500#
Location: Washington
Price: $164,900
CranesList ID: 972

Notes

  • 41' - 184’ Five Section Boom - 1 base section and 5 telescopic sections. All telescopic sections hydraulically extendable independent of one another. Rapid-cycle telescoping system “Telematik” with Auxiliary Lifting Sheave,
  • 37' to 92' folding jib for mounting on telescopic boom offsettablre at 0°, 15°, 30° or 45°.
  • Liebherr Diesel, type D 924 T-E,163 HP,  Diesel Engine UP - AS PER LIEBHERR SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Main and Auxiliary Winches with 27/32" wire rope,
  • LICCON2 safe load indicator, test system hoist limit switch, safety valves to prevent pipe and hose ruptures,
  • 77,200# Full Counterweights,
  • Liebherr 8.5 Ton weighted Hook Ball,
  • Liebherr 125 Ton, Five Sheave Hook Block,
  • Crane cab: All-steel construction fully galvanized, safety glazing, heater, controls and instruments,
  • Crane Control: Load sensing system, 4 working motions can be performed at the same time, by 2 control levers (joy stick type),
  • 9’ 10" wide Liebherr 10 x 8 Drive Carrier,
  • Liebherr Diesel, type D 9408 TI-E, 544 HP, 8 cylinder, watercooled Diesel Engine - AS PER LIEBHERR SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Telma Brake,
  • Allison automatic transmission with torque converter and hydrodynamic retarder brake, 5 forward and 1 reverse speed. Transfer case with off-road range - AS PER LIEBHERR SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Front and Rear Tires: : 20.5 R 25,
  • All axles steered. Axles 1, 4 and 5 with planetary gears and differential locks,
  • All axles with hydropneumatic suspension and hydraulic locking facility,
  • Tandem axle boom dolly available for additional cost,
  • Recent Repairs: Lower engine rebuilt @ 6,800 hours,  All new brakes @ 8,100 hours, Replaced both counterweight cylinders @ 11,621 hours, Rebuilt boom hoist cylinder @ 12,100 hours, Installed new slewing bearing, Rebuilt telescopic cylinder @ 13,221 hours, New main winch cable   @ 13,590 hours.

Location

Washington

Crane Details

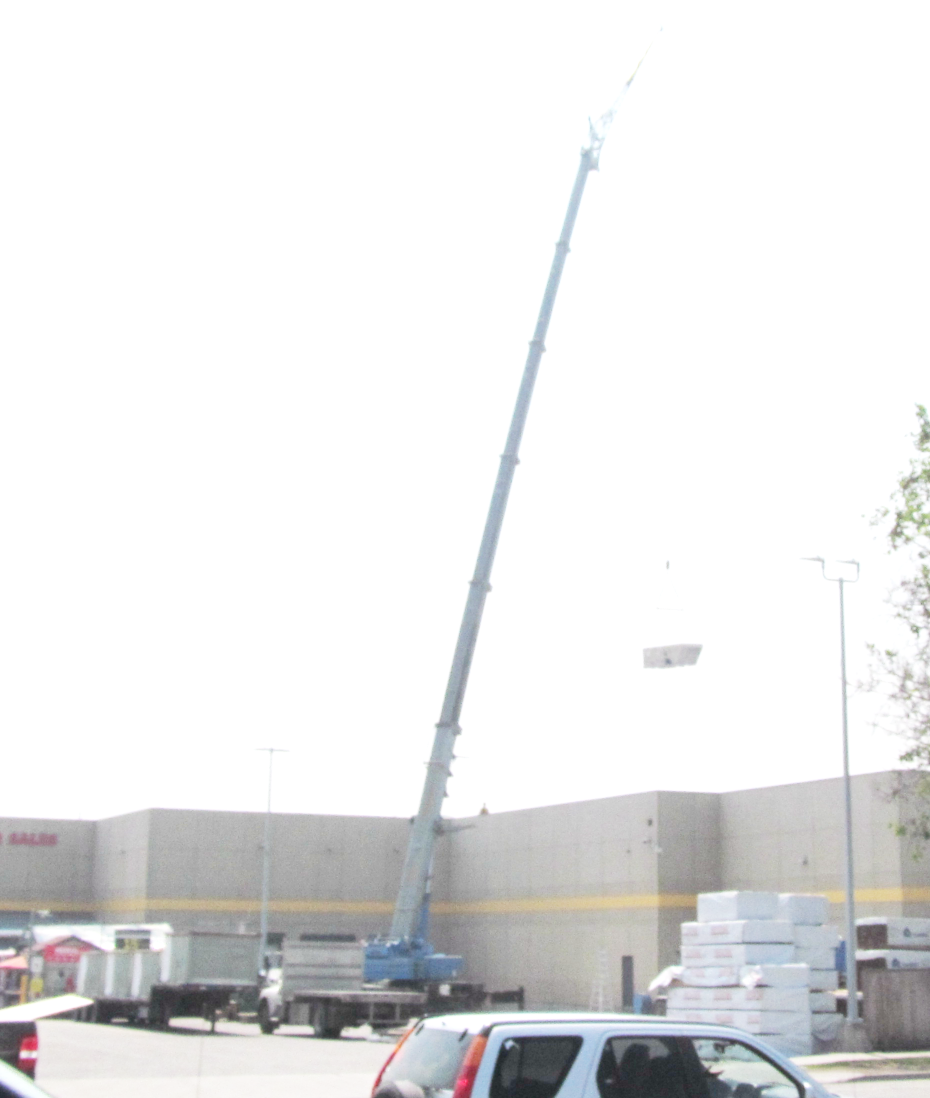

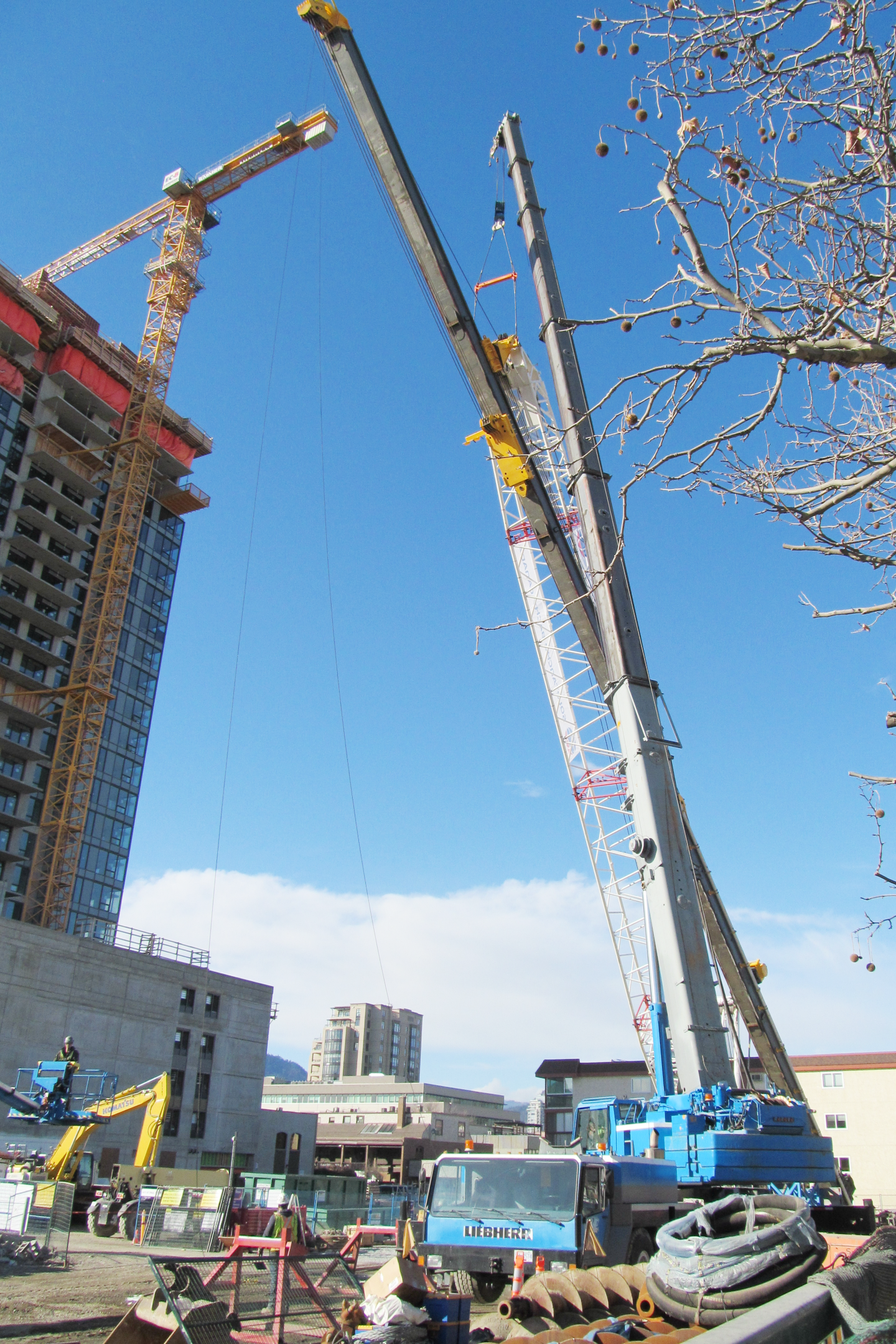

Boom/Jib

Boom/Jib Images
Boom:
Boom: 41' - 184’ Five Section Boom
Boom Length: 184'
Jib:
Jib: 37' to 92' folding jib for mounting on telescopic boom offsettablre at 0°, 15°, 30° or 45°.
Jib Length: 92'
Boom/Jib Notes:
  • 41' - 184’ Five Section Boom - 1 base section and 5 telescopic sections. All telescopic sections hydraulically extendable independent of one another. Rapid-cycle telescoping system “Telematik” with Auxiliary Lifting Sheave,
  • 37' to 92' folding jib for mounting on telescopic boom offsettablre at 0°, 15°, 30° or 45°.

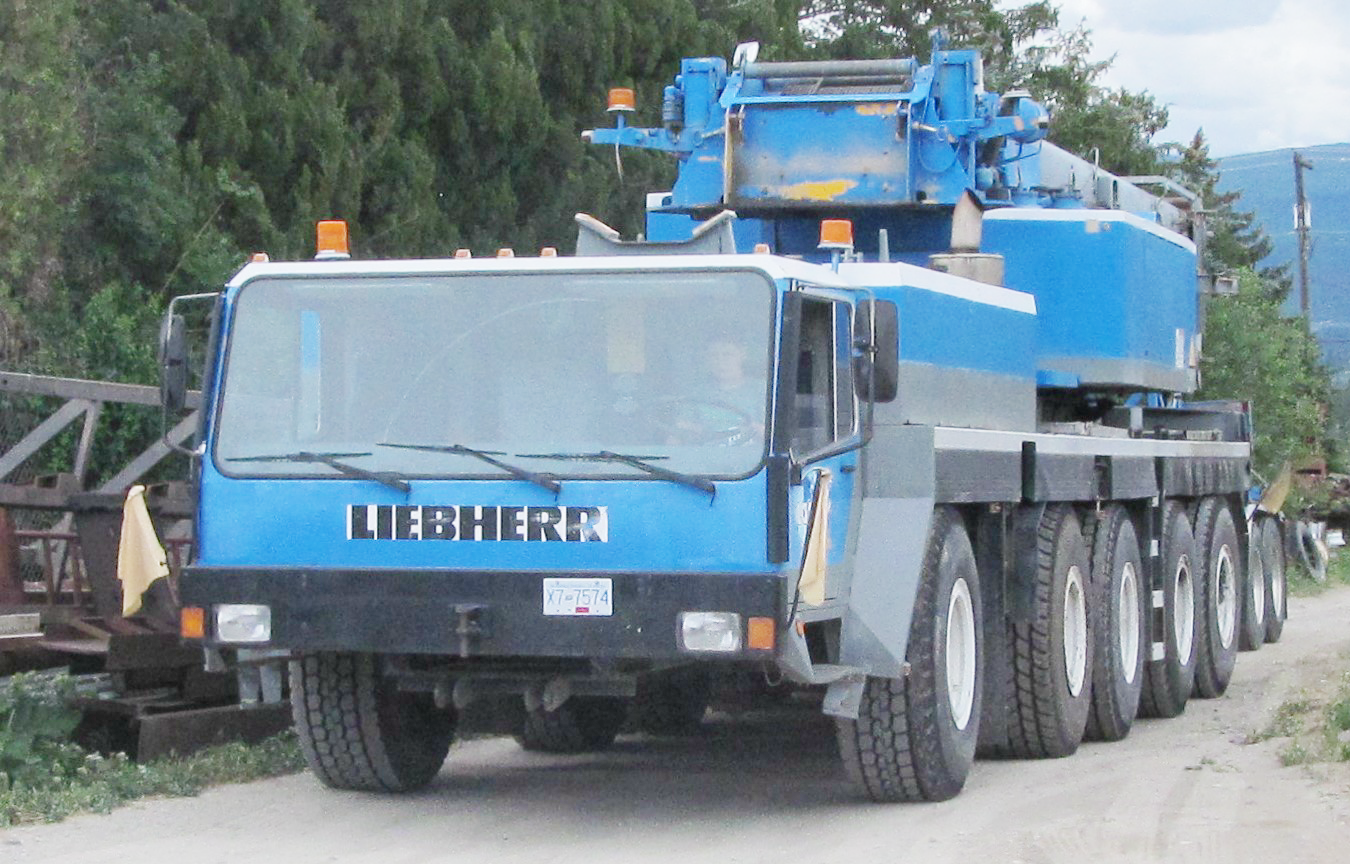

Carrier

Carrier images
Carrier: 9’ 10" wide Liebherr 10 x 8 Drive Carrier
Mileage: 69,181 miles or 111,382 kilometers
Carrier Notes:
  • 9’ 10" wide Liebherr 10 x 8 Drive Carrier,
  • Liebherr Diesel, type D 9408 TI-E, 544 HP, 8 cylinder, watercooled Diesel Engine - AS PER LIEBHERR SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Telma Brake,
  • Allison automatic transmission with torque converter and hydrodynamic retarder brake, 5 forward and 1 reverse speed. Transfer case with off-road range - AS PER LIEBHERR SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Front and Rear Tires: :

    20.5 R 25,

  • All axles steered. Axles 1, 4 and 5 with planetary gears and differential locks,
  • All axles with hydropneumatic suspension and hydraulic locking facility,

Lifting System

Lifting System Images
Hours: 8,522 Lower & 14,185 Upper as of 3.2025
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 27/32" wire rope,
  • LICCON2 safe load indicator, test system hoist limit switch, safety valves to prevent pipe and hose ruptures.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • Liebherr 8.5 Ton weighted Hook Ball,
  • Liebherr 125 Ton, Five Sheave Hook Block.
