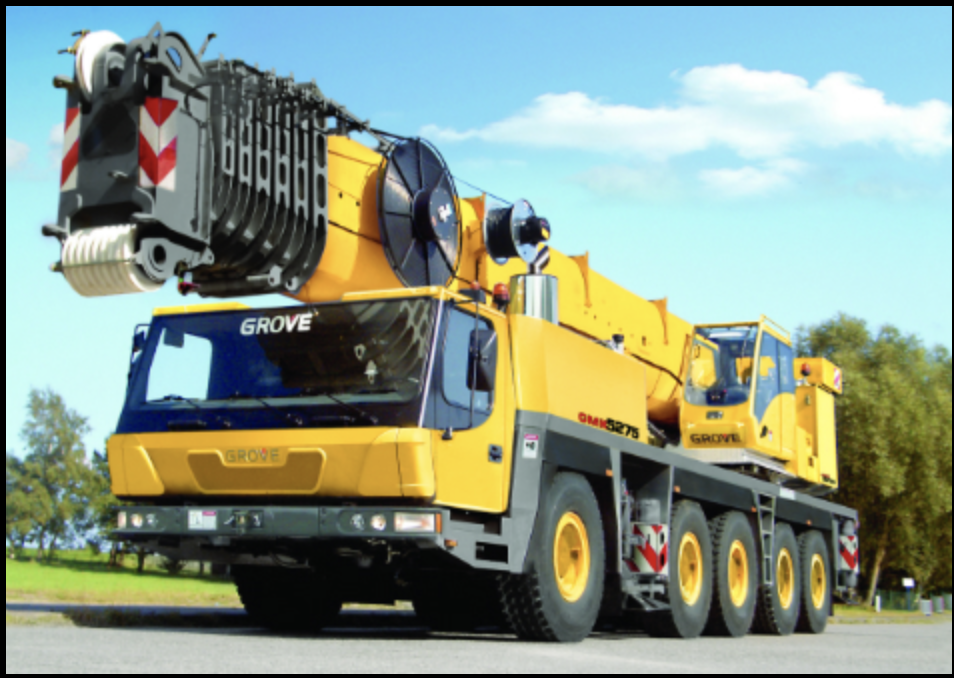

STOCK PHOTO!
All Terrain

2011 Grove GMK5275

Ready to Go to Work!
$585,000

CranesList ID: 1078

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2011
Make: Grove
Model: GMK5275
Crane Type: All Terrain
Serial:
Tons: 275
Weight: 152,293#
Location: Southern USA
Price: $585,000
CranesList ID: 1078
Good Condition
Annual Crane inspection
Annual Inspection

Certified

Notes

  • 44' - 223' Seven Section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave,
  • 39' - 69’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°),
  • Cummins Diesel Engine (Up),
  • Main and Auxiliary Winches with 22 mm Wire Rope,
  • Drum Rotation Indicator, EKS 5 Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition,
  • Hook Ball and Hook Block,
  • 169,700# Counterweights consisting of various sections with hydraulic installation/removal system controlled from the superstructure cab.
  • Air Conditioning and Heater in both cabs,
  • 10’ Wide, 10 x 8 x10 Drive/Steer Grove Carrier,
  • Cummins QSX, Diesel Engine
  • Allison automatic 4000 SP, 6 speeds forward, 1 reverse 2 speed transfer case Transmission - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Front and Rear Tires: 525/R25,
  • Grove exclusive MEGATRAK™ suspension. Independent hydro-pneumatic system acting on all wheels with hydraulic lockout,
  • Outrigger System - Four hydraulic two stage outrigger beams with vertical cylinders and outrigger pads, 600 mm (23.6 in) square. Outrigger can be set in 5 positions: Full: 8,1 m (26.6 ft) Partial: 6,8 m (22.3 ft)
    Partial: 5,6 m (18.4 ft) Partial: 4,4 m (14.4 ft)
    Retracted: 2,7 m (9.0 ft) Independent horizontal and vertical movement controlled from each side of carrier and the superstructure cab. Electronic crane level  indicators. Hydraulic disconnect for all outrigger beams,
  • Photos by Request.  PHOTO SHOWN IS A STOCK PHOTO!

Location

Southern USA

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 44' - 223' Seven Section, Full-Power Boom
Boom Length: 223'
Jib:
Jib: 39' - 69’ Bi-fold Lattice Swing Away Extension (Jib)
Jib Length: 69'
Boom/Jib Notes:
  • 44' - 223' Seven Section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave,
  • 39' - 69’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°).
  • Photos by Request.  PHOTO SHOWN IS A STOCK PHOTO!

Carrier

Carrier images
Carrier: 10’ Wide, 10 x 8 x10 Drive/Steer Grove Carrier
Mileage: 102,501 Kilometers as of 7.2026
Carrier Notes:
  • 10’ Wide, 10 x 8 x10 Drive/Steer Grove Carrier,
  • Cummins QSX, Diesel Engine
  • Allison automatic 4000 SP, 6 speeds forward, 1 reverse 2 speed transfer case Transmission - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Front and Rear Tires: 525/R25,
  • Grove exclusive MEGATRAK™ suspension. Independent hydro-pneumatic system acting on all wheels with hydraulic lockout,
  • Photos by Request.  PHOTO SHOWN IS A STOCK PHOTO!

Lifting System

Lifting System Images
Hours: 6,728 on the Carrier and 14,128 on the Upper as of 7.2026
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 22 mm Wire Rope,
  • Drum Rotation Indicator, EKS 5 Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • Hook Ball and Hook Block.
