Lattice Boom Truck

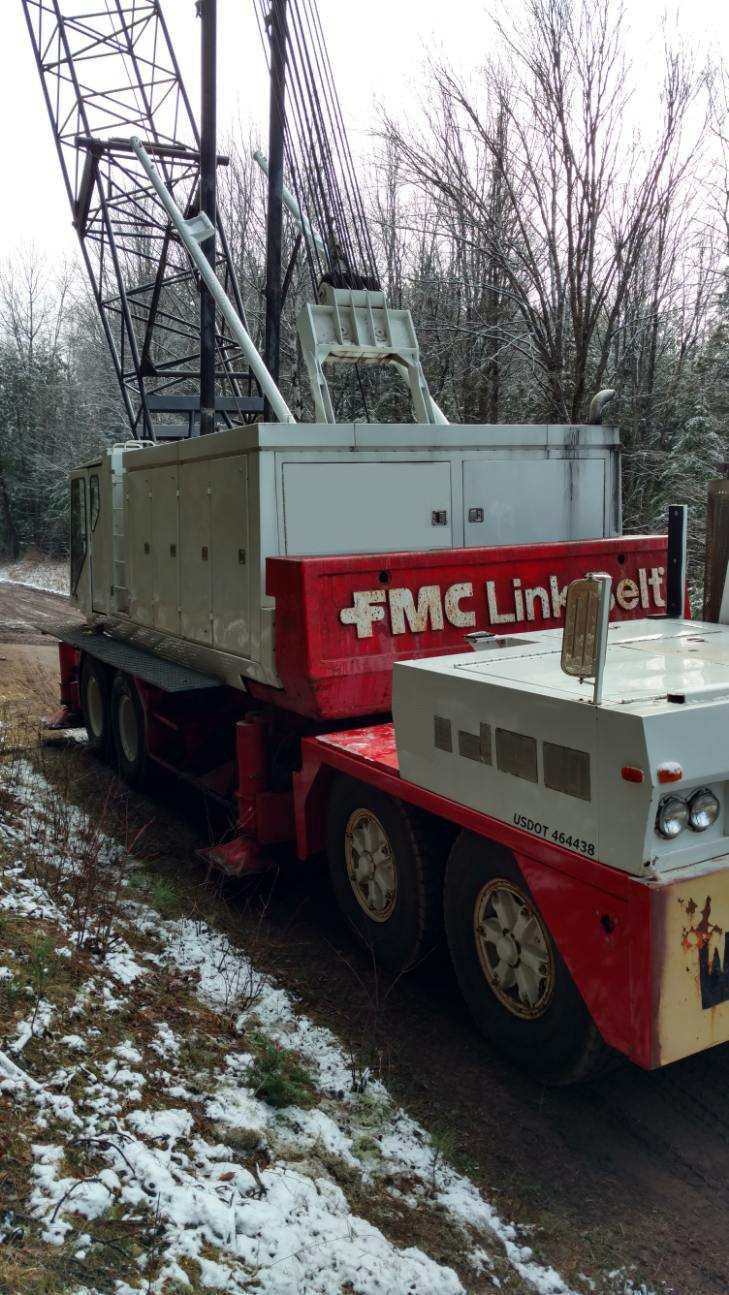

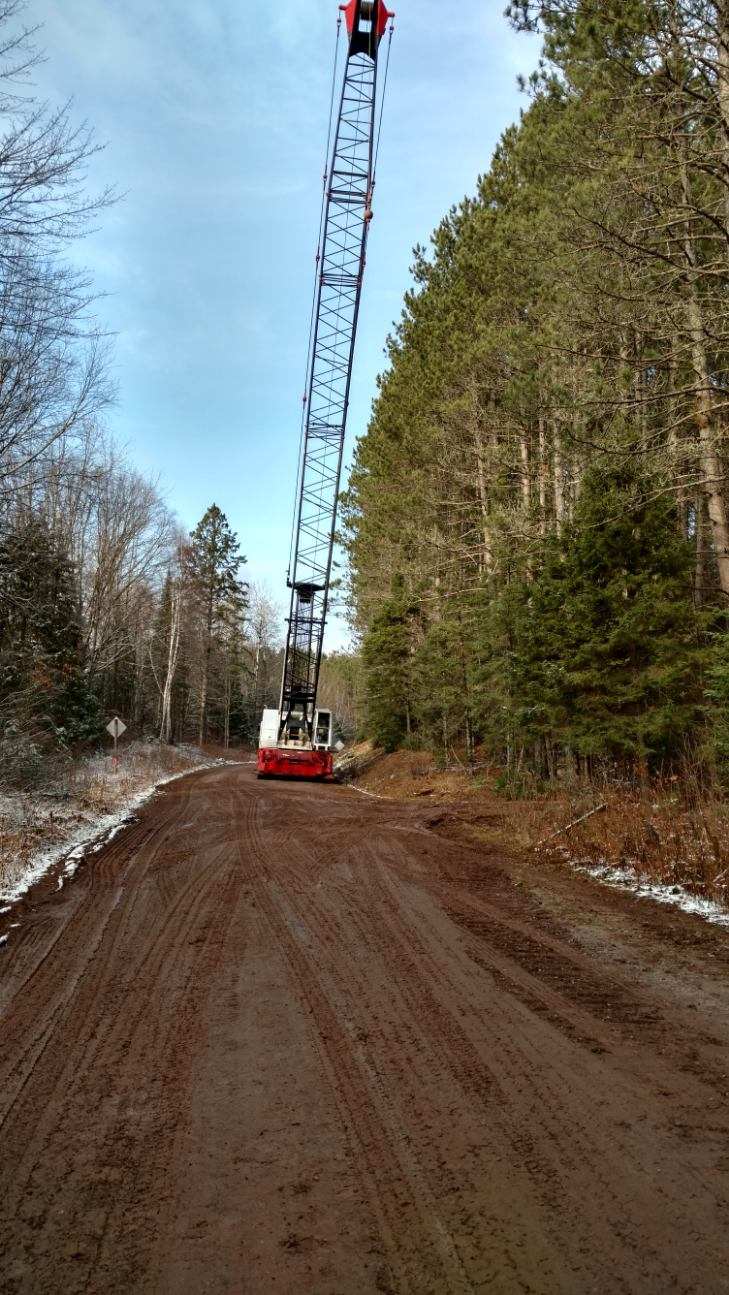

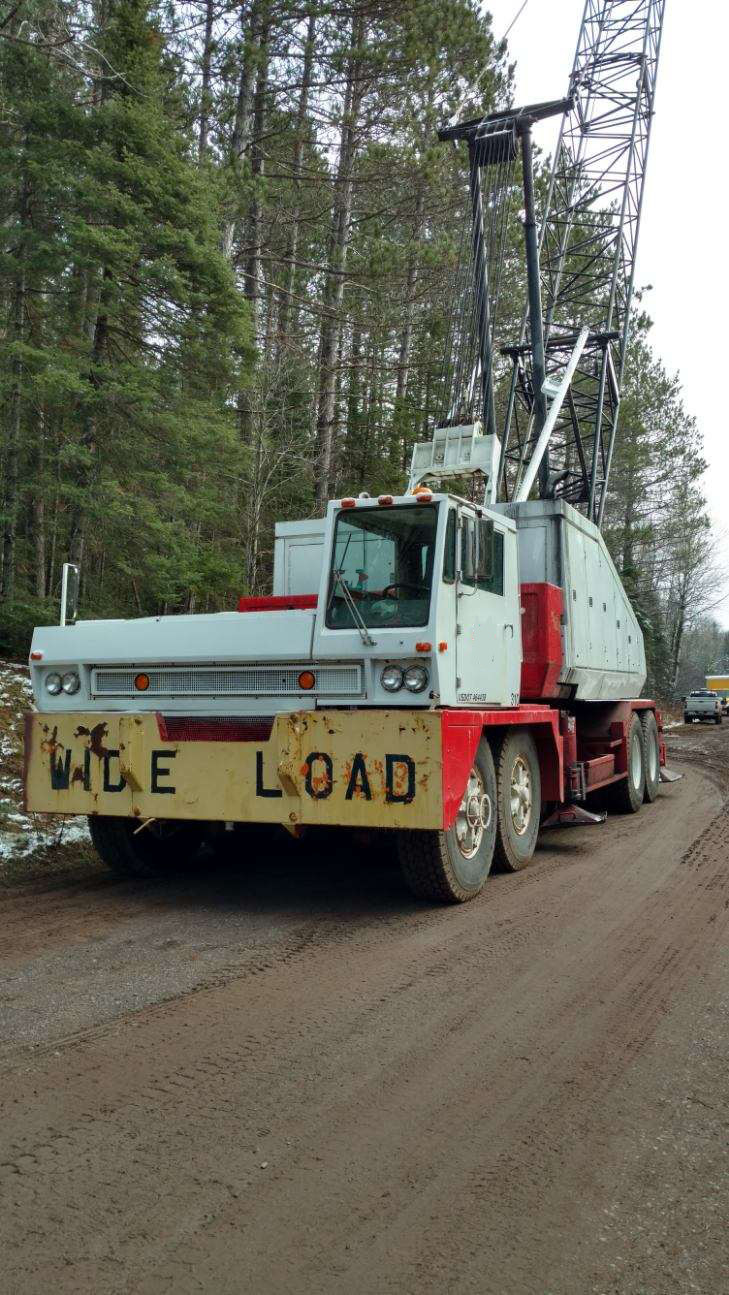

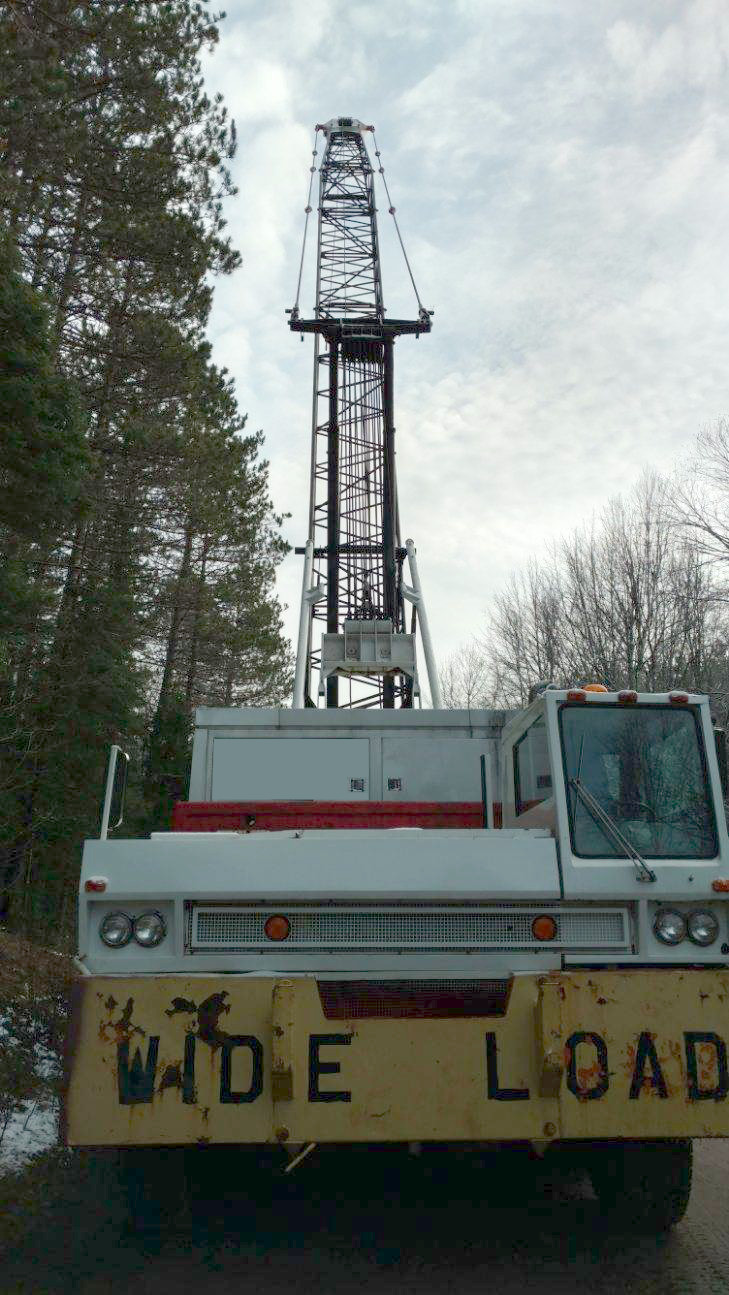

1984 Link-Belt HC218A

230' of Boom + 60' of Jib
$124,900

CranesList ID: 316

All Information Provided By The Seller

Crane Specifications

Overview


Year: 1984
Make: Link-Belt
Model: HC218A
Crane Type: Lattice Boom Truck
Serial:
Tons: 100
Weight: 118,760#
Location: Michigan
Price: $124,900
CranesList ID: 316
Good Condition
Annual Crane inspection
Annual Inspection

Certified

Notes

  • 230' Main Tubular Boom With Open Throat Tip - SUBJECT TO FINAL CONFIRMATION DURING TIME OF INSPECTION,
  • 60' Jib Consisting of 1 x 30' Basic, 2 x 15' Inserts Offsetable at 0, 15, 30 degrees,
  • Detroit 6-71N, Six Cylinder, 165 HP Diesel Engine Up,
  • Torque Convertor,
  • Main and Auxiliary Winches with 3/4" wire rope,
  • Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering on both,
  • Hook Block and Ball,
  • 33,000# AB Upper Counterweights,
  • 11' Wide Link-Belt 8 x 4 Carrier,
  • Detroit 6V-92TA, Six Cylinder, Two Cycle, 318 HP Diesel Engine,
  • Eaton Fuller Roadranger 15 Speed Forward and 3 Reverse Transmission with Two Speed direct and low Auxiliary,
  • Front and Rear Tires: 14:00 X 24J 18 Ply, New Two Years Ago,
  • 8 wheel Air Brakes,
  • Heaters up and down,
  • 13,500# Bumper Counterweight,
  • Full width, double box Hydraulic outriggers,
  • 5th Front Hydraulic Outrigger for 360 degree swing,
  • Storage Bins,
  • Bridge Crane,
  • Ready To Go To Work,
  • Seller-vendor is thought to be second owner of the crane,

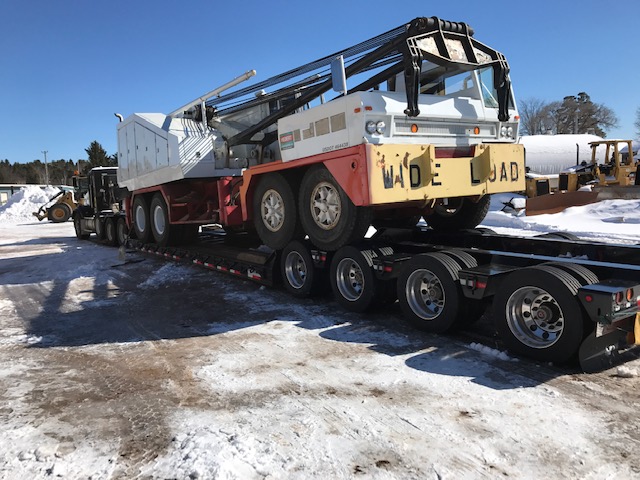

  • Seller-vendor has lowboy and will quote freight to buyer's location,
  • Current Annual Inspection

Location

Michigan

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 230' Main Tubular Boom
Boom Length: 230'
Jib:
Jib: 60' Jib
Jib Length: 60'
Boom/Jib Notes:
  • 230' Main Tubular Boom With Open Throat and Hammer Head Tips,
  • 60' Jib Consisting of 1 x 30' Basic, 2 x 15' Inserts Offsetable at 0, 15, 30 degrees

Carrier

Carrier images

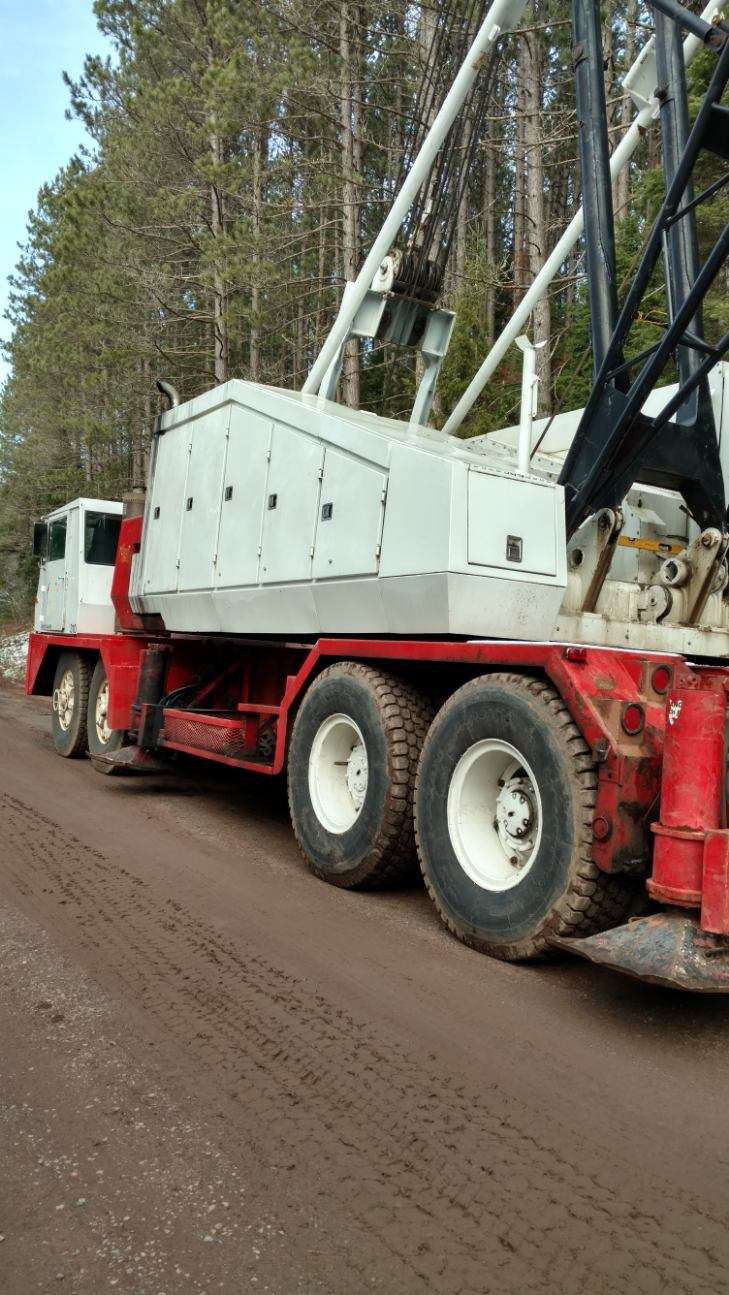

Carrier: 11' Wide Link-Belt 8 x 4 Carrier
Mileage:
Carrier Notes:
  • 11' Wide Link-Belt 8 x 4 Carrier,
  • Detroit 6V-92TA, Six Cylinder, Two Cycle, 318 HP Diesel Engine,
  • Eaton Fuller Roadranger 15 Speed Forward and 3 Reverse Transmission with Two Speed direct and low Auxiliary,
  • Front and Rear Tires: 14:00 X 24J 18 Ply, New Two Years Ago,
  • 8 wheel Air Brakes,
  • Heaters and down,
  • 13,500# Bumper Counterweight

Lifting System

Lifting System Images
Hours:
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 3/4" wire rope,
  • Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering on both

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball:
Hook Block/Hook Ball Notes:
  • Hook Block and Ball
