Lattice Boom Crawler

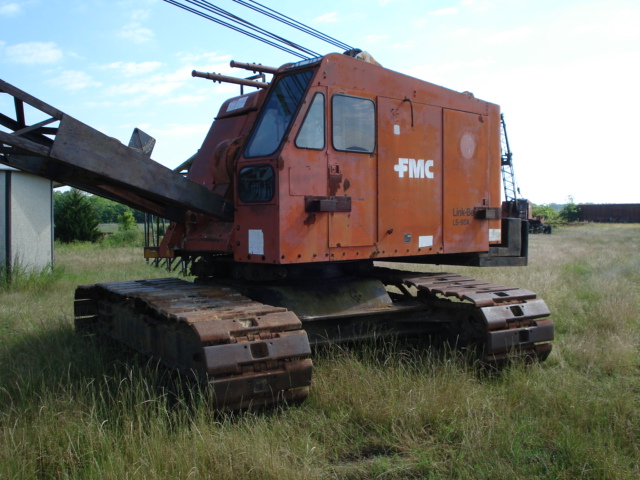

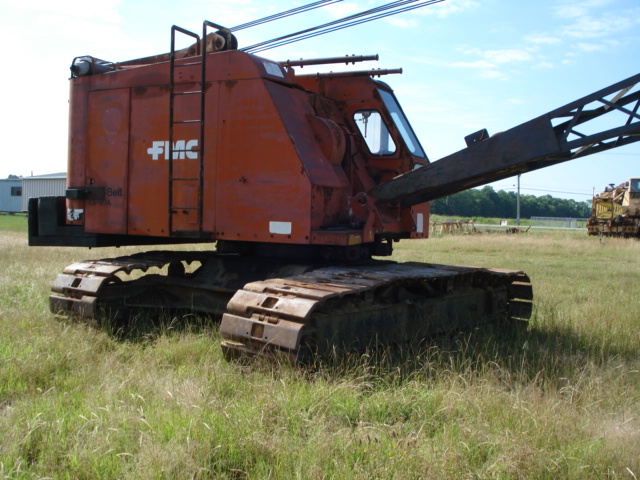

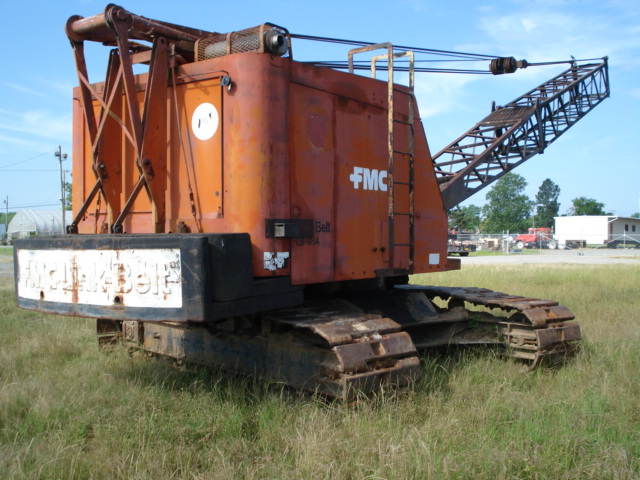

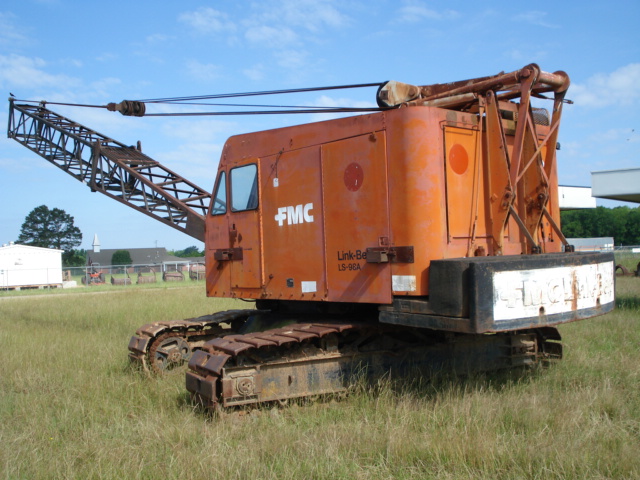

1977 Link-Belt LS98A


$39,900

CranesList ID: 75

All Information Provided By The Seller

Crane Specifications

Overview


Year: 1977
Make: Link-Belt
Model: LS98A
Crane Type: Lattice Boom Crawler

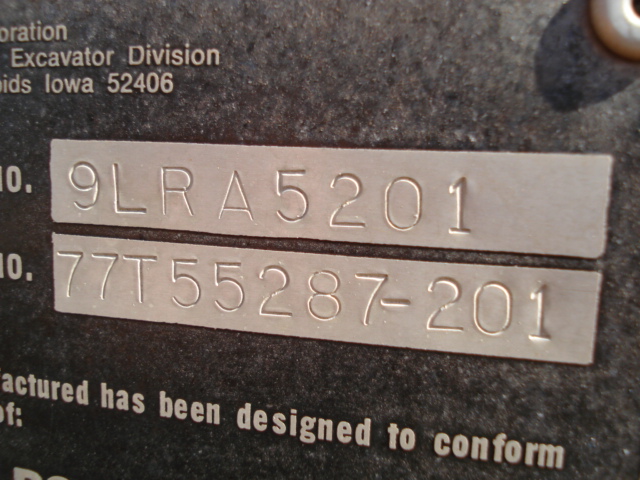

Serial: 9LRA-5201
Tons: 40
Weight:
Location: Arkansas
Price: $39,900
CranesList ID: 75

Notes

  • 80' Pin connected Angle Boom- alloy steel main boom angles, all welded, lattice construction. Consisting of  base & tip sections with 2 x 20' inserts
  • No Jib
  • Main and Auxiliary Winches
  • Boom angle indicator
  • Hook Block and Ball
  • Fairlead, fully revolving type with lock, barrel, sheaves, and guide rollers mounted on anti-friction bearings.

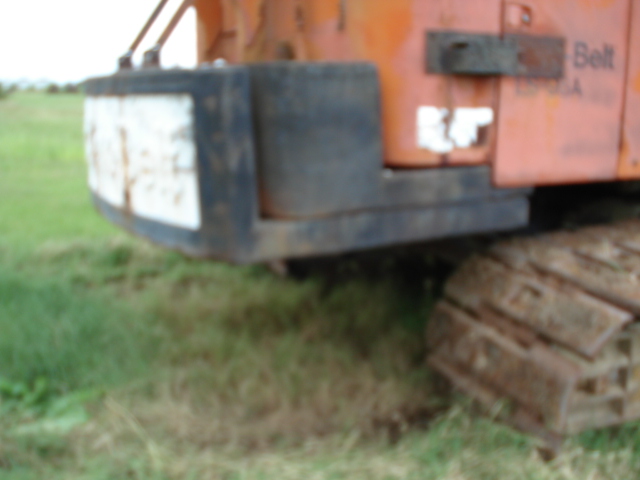

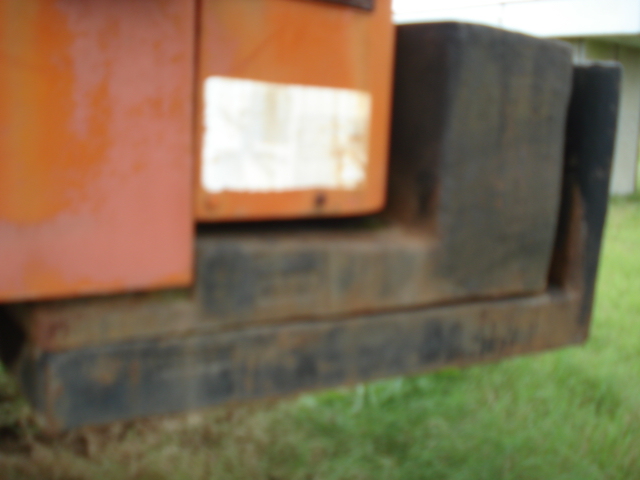

  • A & B counterweights
  • Retractable Gantry mounted to upper to support bail, boom suspension system and two boom hoist rope sheaves.
  • 360 degree rotation
  • Hendricks 1 1/2 yard bucket is available for additional cost

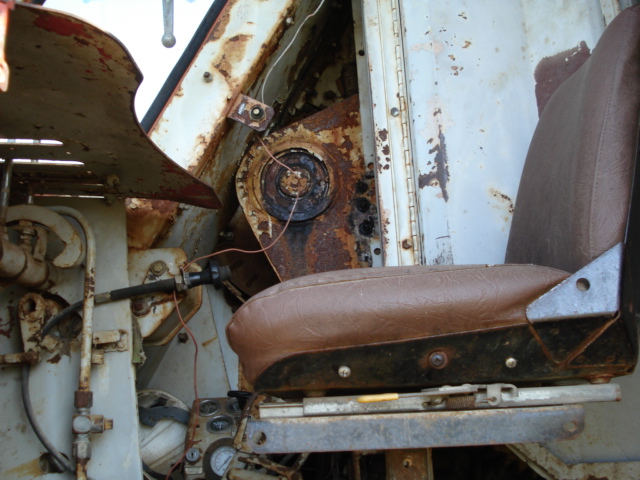

  • 11' Wide Cab with catwalks both sides

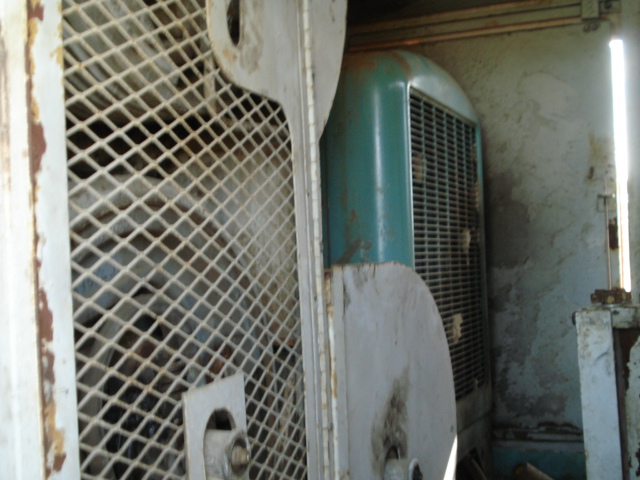

  • GM4-71N Detroit Diesel Engine

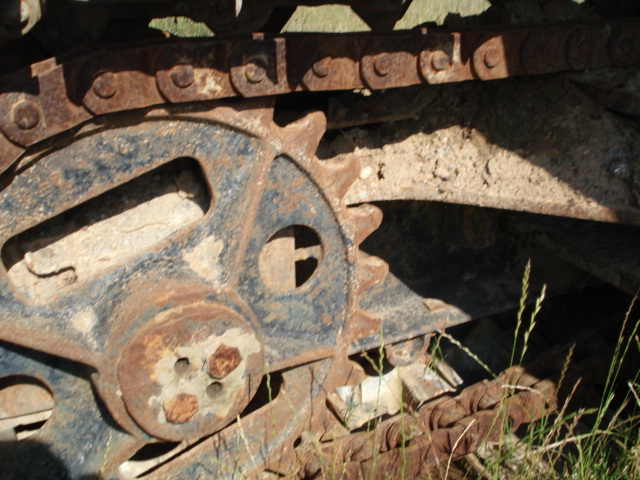

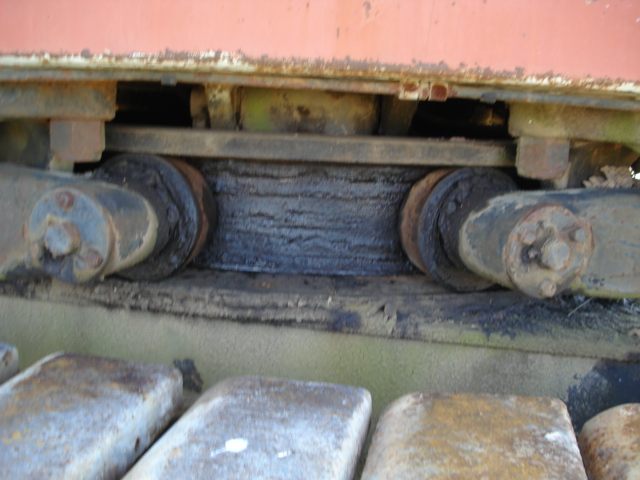

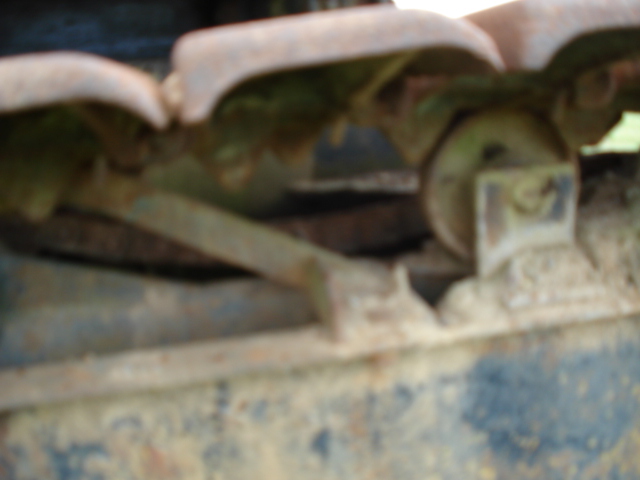

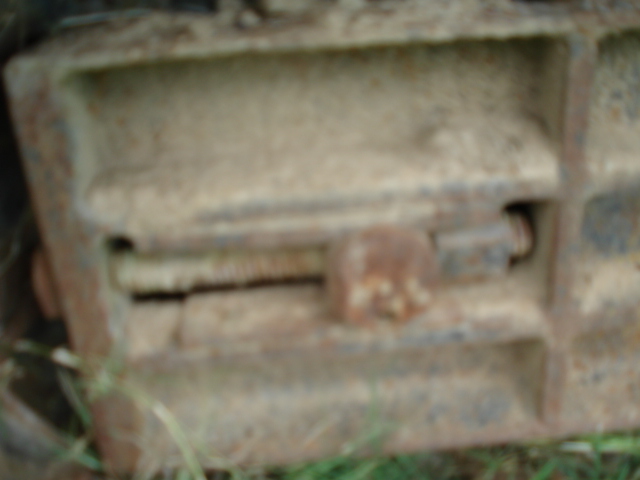

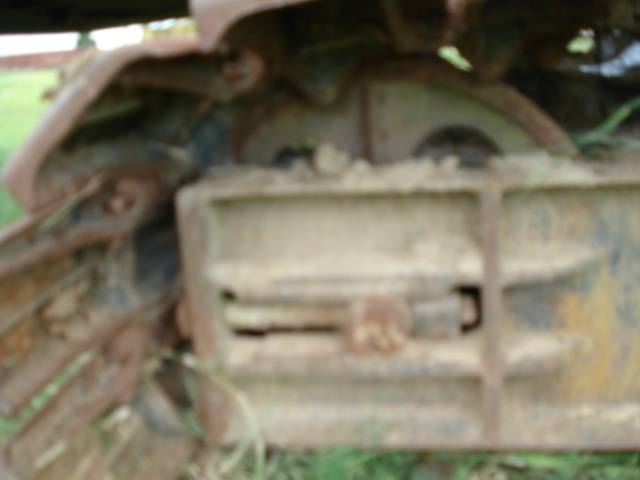

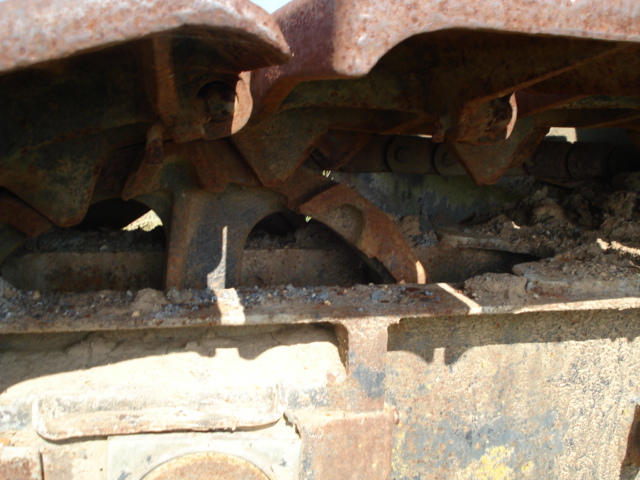

  • Heat treated track rollers on sintered iron bushings are sealed for maintenance-free operation

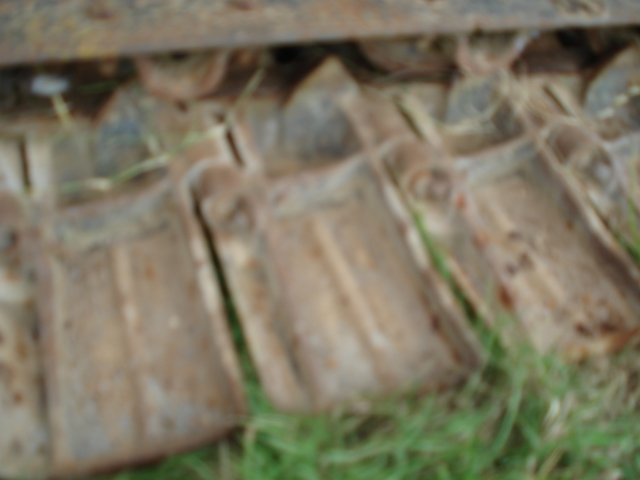

  • 43 shoes, 36” wide each crawler
  • 12'6” Overall width of crawler
  • 15'1" ” Overall length of crawler
  • Unit has been used as a Crane not a dragline...was first used by the original owner as a crane mounted on a barge close to Houston, TX. It was later sold to a county in Arkansas that used it as a crane in their bridge building department.They owned it for 20 to 25 years, they got to where they weren't using it so they sold it to the present owner who has it for sale

  • The float trailer is $1,500. Additional it was used by the county to move the block, ball and boom

Location

Arkansas

Crane Details

Boom/Jib

Boom/Jib Images
Boom:
Boom: 80' Pin connected Angle Boom
Boom Length: 80'
Jib:
Jib: No Jib
Jib Length:
Boom/Jib Notes:
  • 80' Pin connected Angle Boom- alloy steel main boom angles, all welded, lattice construction. Consisting of  base & tip sections with 2 x 20' inserts
  • Boom angle indicator
  • No Jib

Carrier

Carrier images
Carrier: Link-Belt
Mileage:
Carrier Notes:
  • 11' Wide Cab with catwalks both sides
  • GM4-71N Detroit Diesel Engine
  • Heat treated track rollers on sintered iron bushings are sealed for maintenance-free operation
  • 43 shoes, 36” wide each crawler
  • 12'6” Overall width of crawler
  • 15'1" ” Overall length of crawler
  • Unit has been used as a Crane not a dragline...was first used by the original owner as a crane mounted on a barge close to Houston, TX. It was later sold to a county in Arkansas that used it as a crane in their bridge building department.They owned it for 20 to 25 years, they got to where they weren't using it so they sold it to the present owner who has it for sale

  • The float trailer is $1,500. Additional it was used by the county to move the block, ball and boom

Lifting System

Lifting System Images
Hours: 5547 hours showing as of 9.2015
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:

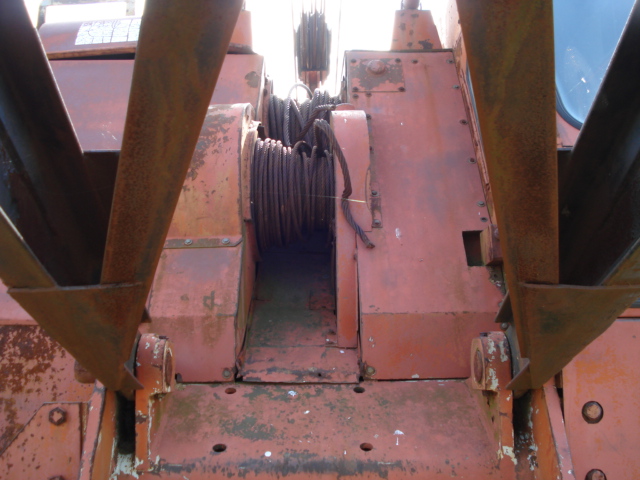

  • Main and Auxiliary Winches
  • Boom angle indicator
  • Hook Block and Ball
  • Fairlead, fully revolving type with lock, barrel, sheaves, and guide rollers mounted on anti-friction bearings.
  • A & B counterweights
  • Retractable Gantry mounted to upper to support bail, boom suspension system and two boom hoist rope sheaves.
  • 360 degree rotation

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • Hook Block and Ball

Downloadable Files Associated with this Crane

Documents

Documents
ls-98a-brochure.pdf (2.49 MB) , ls-98a-flysheet.pdf (1.43 MB) , ls-98a-specifications.pdf (1.09 MB)
