CranesList Comprehensive Crane Listing

Lattice Boom Crawler

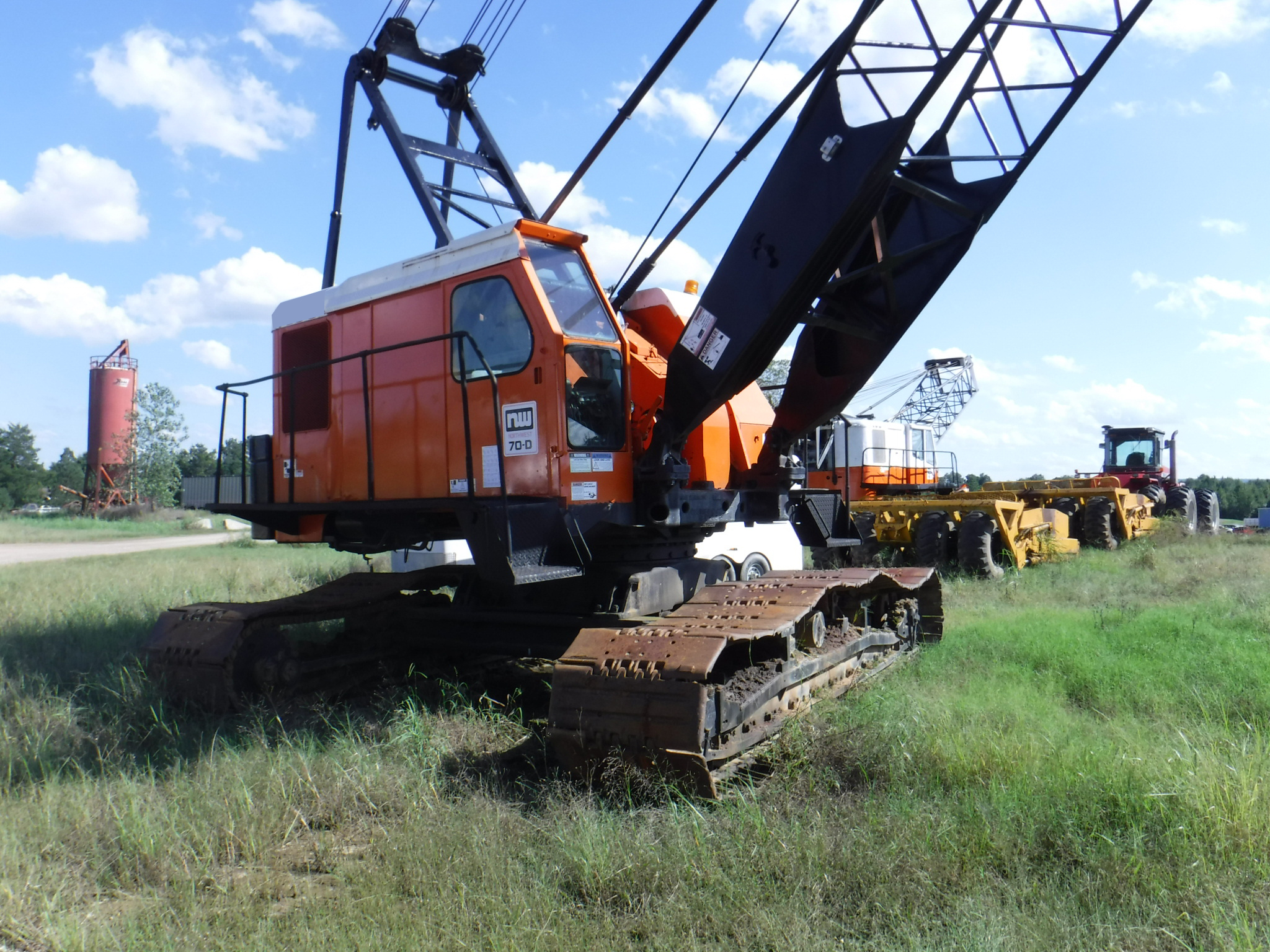

1974 Northwest 70D


$56,500

CranesList ID: 240

All Information Provided By The Seller

Crane Specifications

Overview


Year: 1974
Make: Northwest
Model: 70D
Crane Type: Lattice Boom Crawler

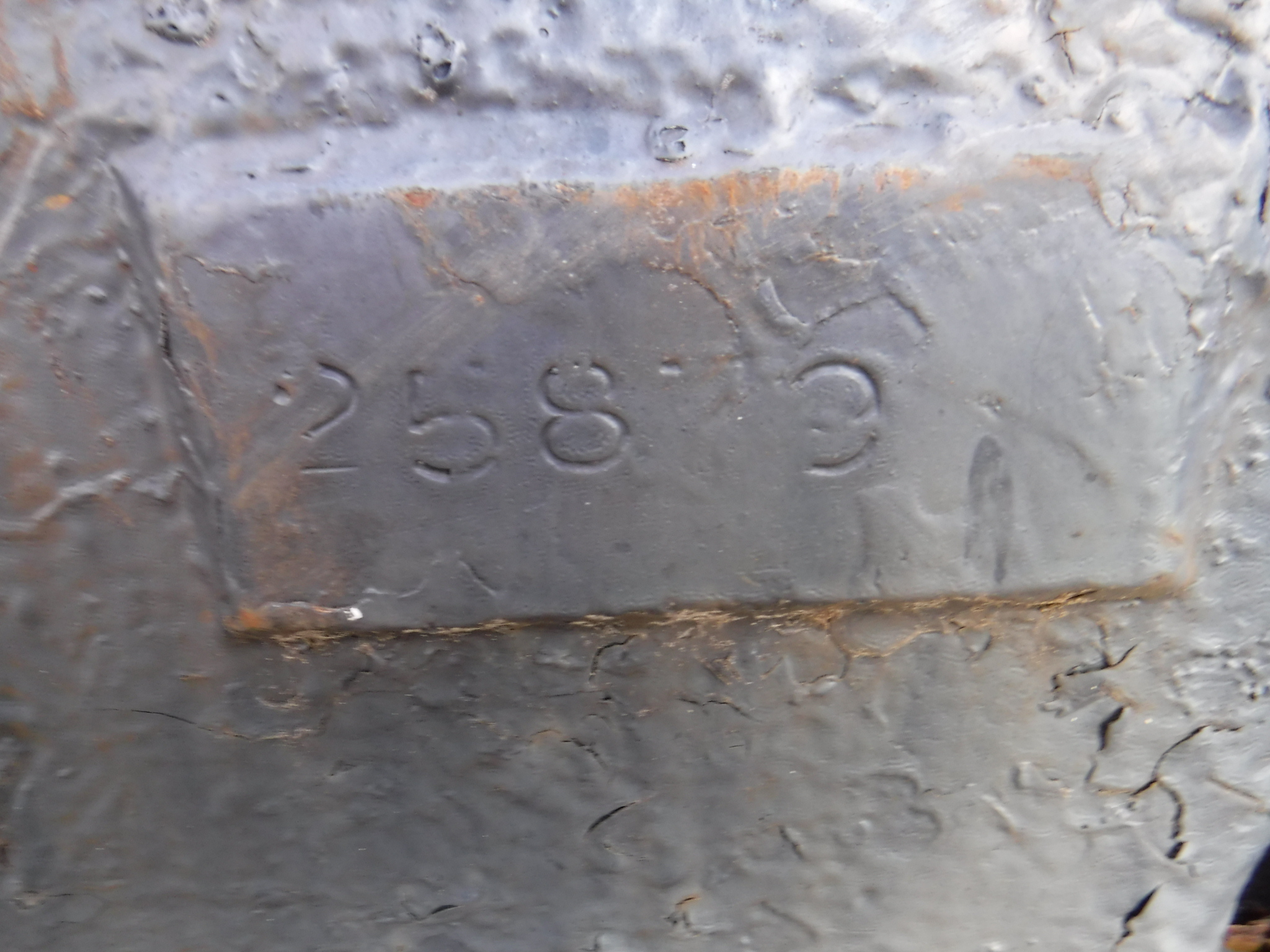

Serial: 25879
Tons: 80
Weight: 144,490#
Location: Central Arkansas
Price: $56,500
CranesList ID: 240
Good Condition

Notes

  • 100' Safe-T-Lite Tubular Boom,
  • Jib not included but seller has one available for an additional cost,
  • High folding gantry,
  • Main and Auxiliary Winches with Independent boom hoist,
  • Power Load Lowering,
  • Air Controls,
  • Headache Ball,
  • Three Piece 39,400# External Counterweights,
  • Independent Swing,
  • Catwalks on both sides,
  • 15’ 2" Wide Northwest Carbody with Capsule Cab,
  • GM 8V71 Detroit Diesel Engine,
  • Allison Torque Converter,

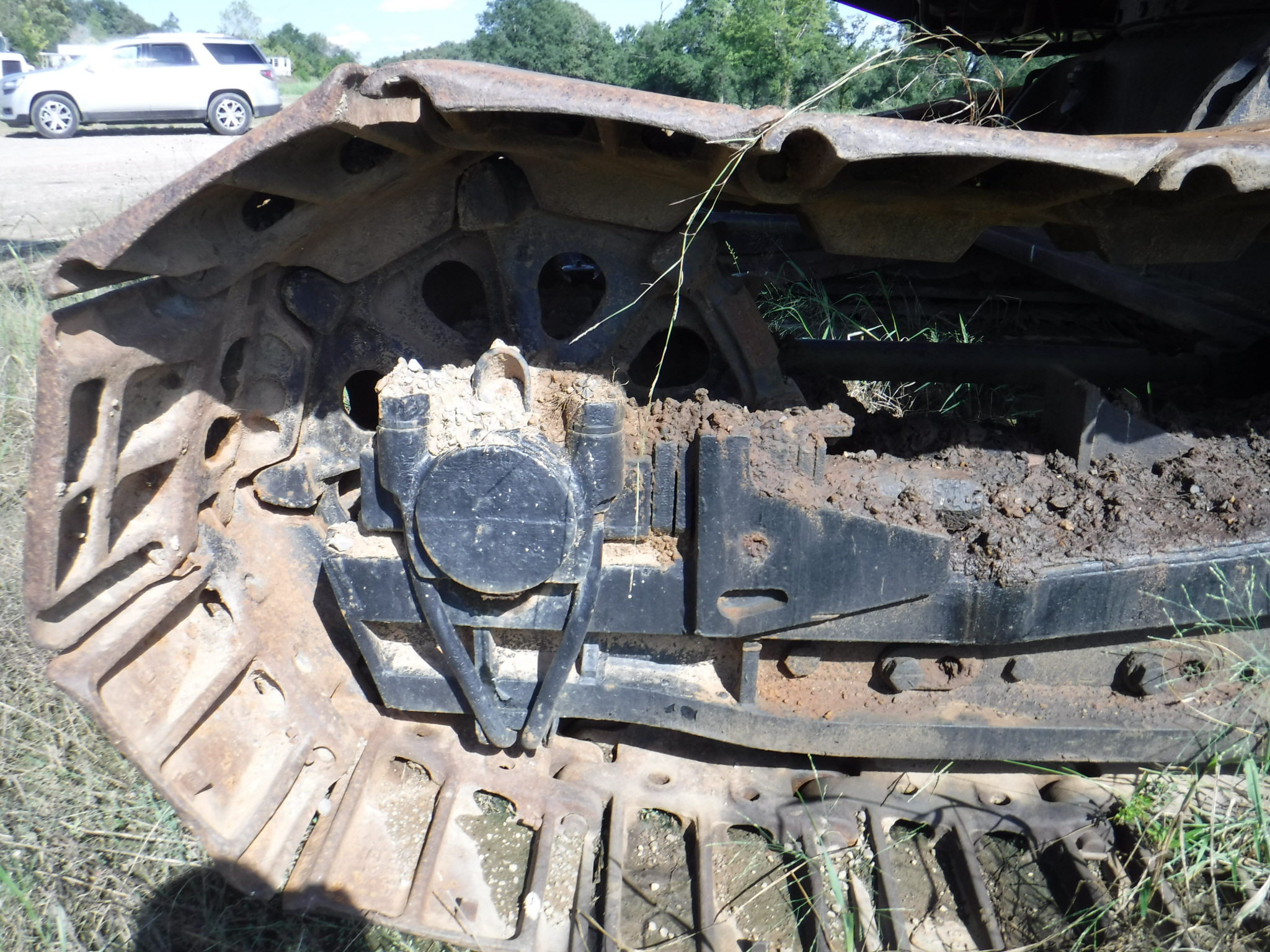

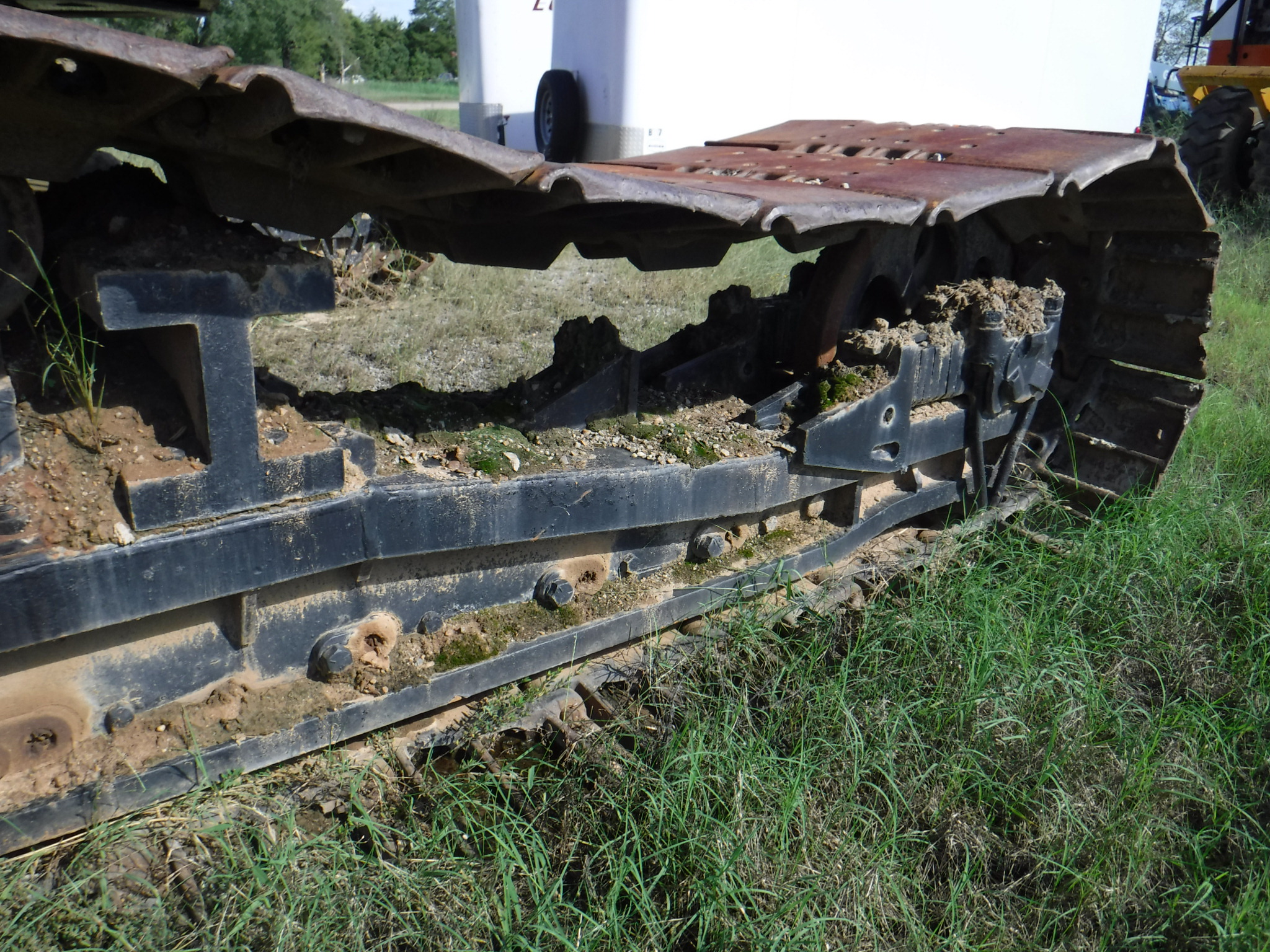

  • 19' Long Crawler with 38" Pads,
  • New clutch,
  • Crane has been setting up for a couple years, and most likely needs to be serviced,
  • Rud-O-Matic Tagline is not included as part of this sale,
  • Crane is not certified but is in certifiable condition -  the job it was on last was for the corp of engineers

Location

Central Arkansas

Crane Details

Boom/Jib

Boom/Jib Images
Boom:

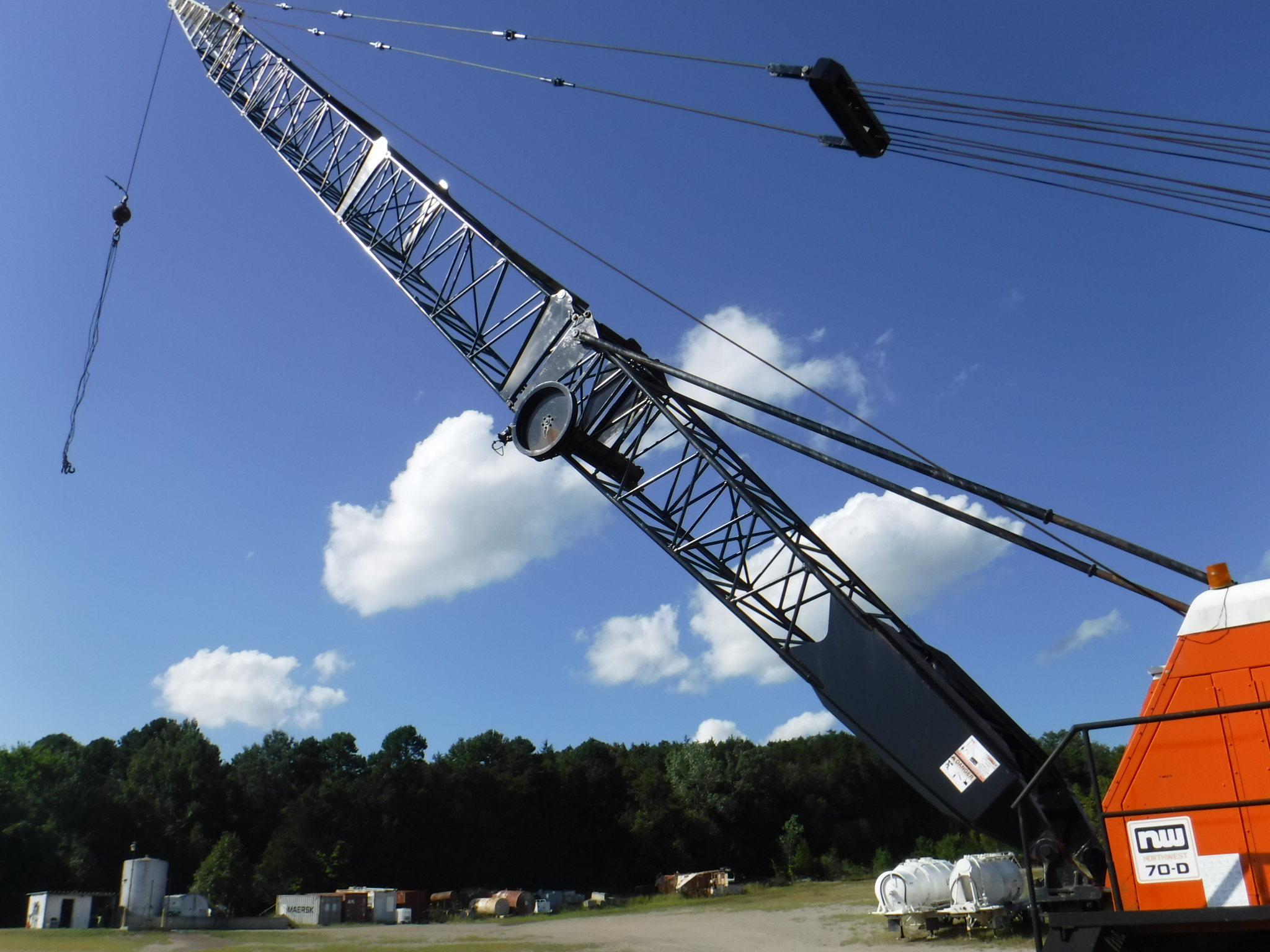

Boom: 100' Safe-T-Lite Tubular Boom
Boom Length: 100'
Jib:
Jib:
Jib Length:
Boom/Jib Notes:
  • 100' Safe-T-Lite Tubular Boom,
  • Jib not included but seller has one available for an additional cost,

Carrier

Carrier images
Carrier: 15’ 2" Wide Northwest Carbody
Mileage:
Carrier Notes:
  • 15’ 2" Wide Northwest Carbody with Capsule Cab,
  • GM 8V71 Detroit Diesel Engine,
  • Allison Torque Converter,
  • New clutch,
  • Crane has been setting up for a couple years, and most likely needs to be serviced

Lifting System

Lifting System Images
Hours: 4,578 showing of 10.2018
Winches: Main Winch
Lifting System Notes:
  • High folding gantry,
  • Main and Auxiliary Winches with Independent boom hoist,
  • Power Load Lowering,
  • Rud-O-Matic Tagline is not included as part of this sale,

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Ball
Hook Block/Hook Ball Notes:
  • Headache Ball

Downloadable Files Associated with this Crane

Documents

Documents
northwest-70d-charts.pdf (1.3 MB)

Click To Enlarge or Browse

All Images

Click To Enlarge or Browse

, , , , , , ,
