2008 Link-Belt RTC8090SII

Ready to Go to Work!
$199,900

CranesList ID: 650

All Information Provided By The Seller

Crane Specifications

Overview


Year: 2008
Make: Link-Belt
Model: RTC8090SII
Crane Type: Rough Terrain
Serial:
Tons: 90
Weight: 105,000#
Location: Oregon
Price: $199,900
CranesList ID: 650

Notes

  • 38'-140' Five section Full Power Latching Boom with Quick Reeve Boom Head and Auxiliary Lifting Sheave
  • 35'-58' Bi-Fold two piece lattice Fly (Jib), stowable, off-settable to 2 ̊, 15 ̊, 30 ̊ and 45 ̊,
  • Main and Auxiliary Winches with 3/4" Rotation Resistant Wire Rope,
  • Drum Rotation Indicator, Two Speed, Load Moment Indicator with Anti-Two Block,
  • Hook Ball,
  • 50 Ton, 5 sheave hook block that weighs approximately 1,200#,
  • 28,800# Counterweight consisting of three 9,600# counterweights pinned to the upper,
  • 360 Degree Rotation,
  • 10' 9" Wide Link-Belt 4 x 2 and 4 x 4 for off highway travel carrier,
  • CAT C6.6 Six Cylinder 225 H.P. Diesel Engine,
  • Powershift Transmission - Three speed with high/low range for 6 forward and 6 reverse gears. Front axle disconnect for two or four wheel drive. Front axle disconnects in high range,
  • Front and Rear Tires: 29.5 x 25 - 28 Ply Rating earthmover type tires on steel disc wheels,
  • Outriggers Boxes - Two double box, front and rear welded to carrier frame,
  • Beams and Jacks - Four single stage beams with Confined Area Lifting Capacities (CALC) provide selectable outrigger extensions of full, intermediate, and retracted. Hydraulically controlled from the operator’s cab with integral check valves,
  • Work Ready - all crane functions are operational,
  • Crane is Certified.

Location

Oregon

Crane Details

Boom/Jib

Boom/Jib Images
Boom:

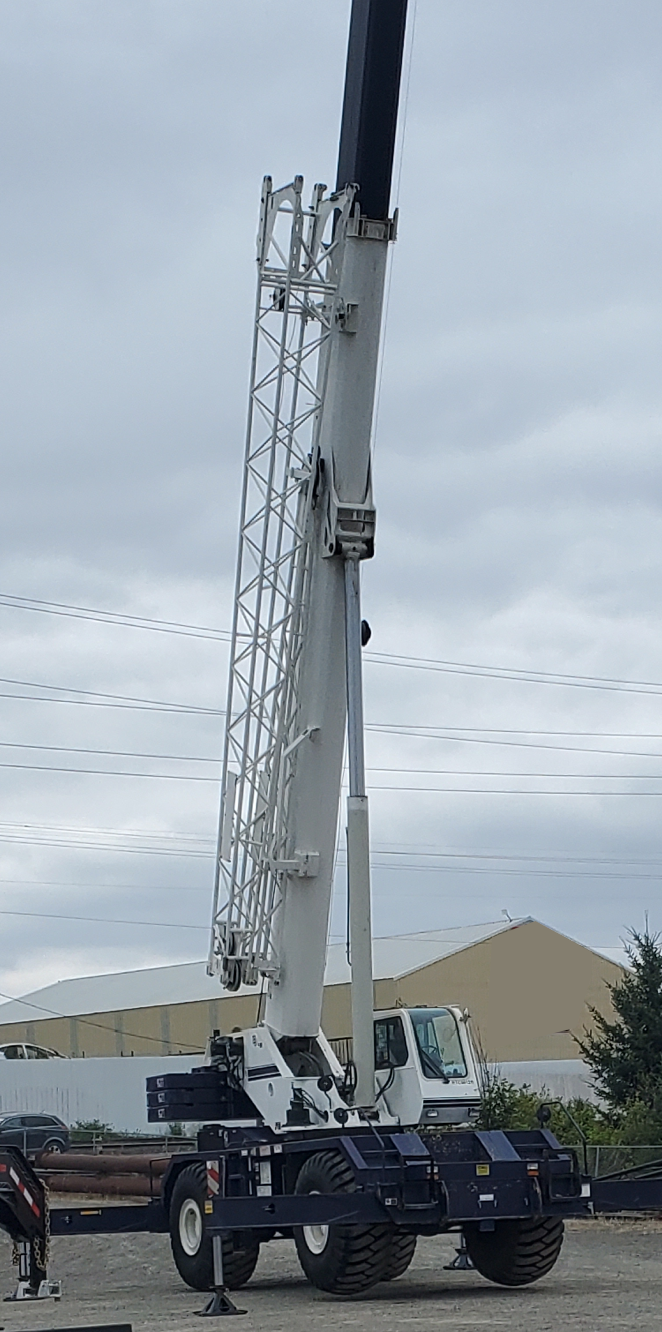

Boom: 38'-140' Five section Full Power Latching Boom
Boom Length: 140'
Jib:
Jib: 35'-58' Bi-Fold two piece lattice Fly (Jib)
Jib Length: 58'
Boom/Jib Notes:
  • 38'-140' Five section Full Power Latching Boom with Quick Reeve Boom Head and Auxiliary Lifting Sheave
  • 35'-58' Bi-Fold two piece lattice Fly (Jib), stowable, off-settable to 2 ̊, 15 ̊, 30 ̊ and 45 ̊.

Carrier

Carrier images
Carrier: 10' 9" Wide Link-Belt 4 x 2 and 4 x 4 for off highway travel carrier
Mileage:
Carrier Notes:
  • 10' 9" Wide Link-Belt 4 x 2 and 4 x 4 for off highway travel carrier,
  • CAT C6.6 Six Cylinder 225 H.P. Diesel Engine,
  • Powershift Transmission - Three speed with high/low range for 6 forward and 6 reverse gears. Front axle disconnect for two or four wheel drive. Front axle disconnects in high range,
  • Front and Rear Tires: 29.5 x 25 - 28 Ply Rating earthmover type tires on steel disc wheels.

Lifting System

Lifting System Images

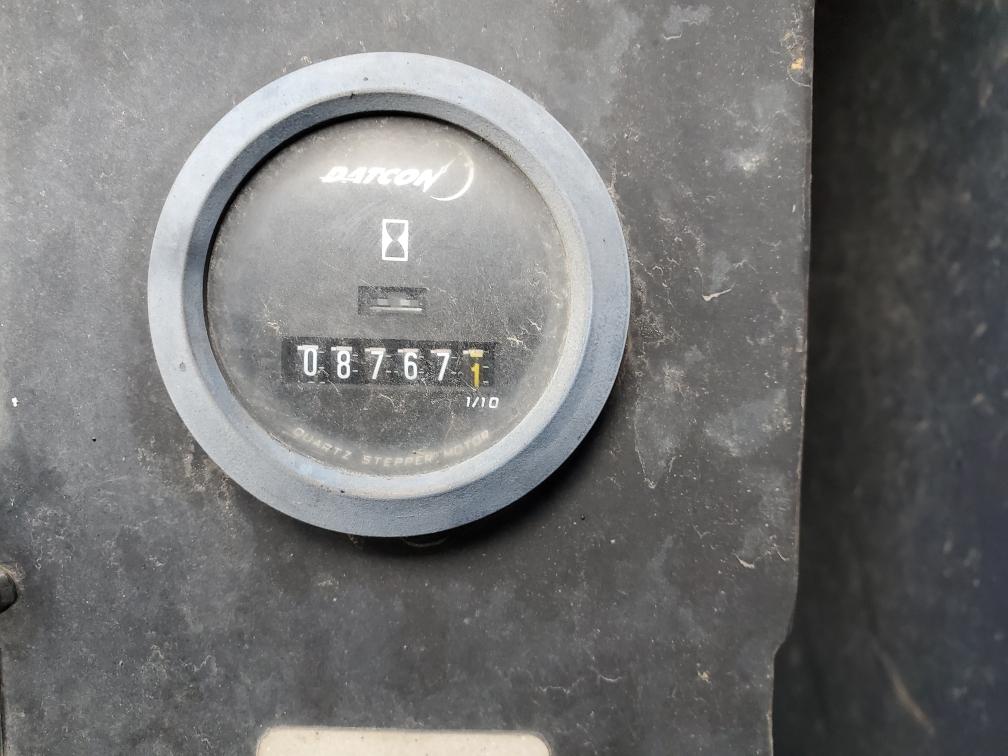

Hours: Thought to be 8,900 Hours as of 10.2022
Winches: Main Winch, Auxiliary Winch
Lifting System Notes:
  • Main and Auxiliary Winches with 3/4" Rotation Resistant Wire Rope,
  • Drum Rotation Indicator, Two Speed, Load Moment Indicator with Anti-Two Block.

Hook Block/Hook Ball

Hook Block/Hook Ball Images
Hook Block/Hook Ball: Hook Block, Hook Ball
Hook Block/Hook Ball Notes:
  • Hook Ball,
  • 50 Ton, 5 sheave hook block that weighs approximately 1,200#.
